M Series
Mini cylinders

International / Automotive Standards

VDI - BMW - FCA - Ford - MB - PSA - VW

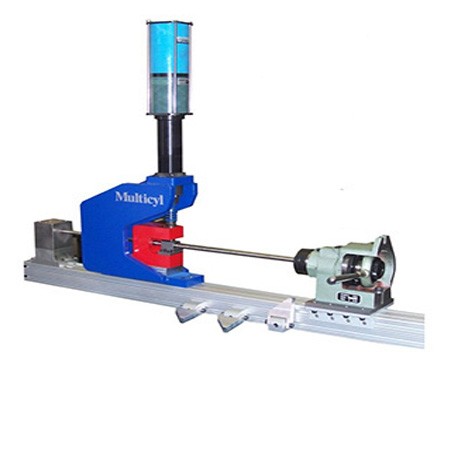

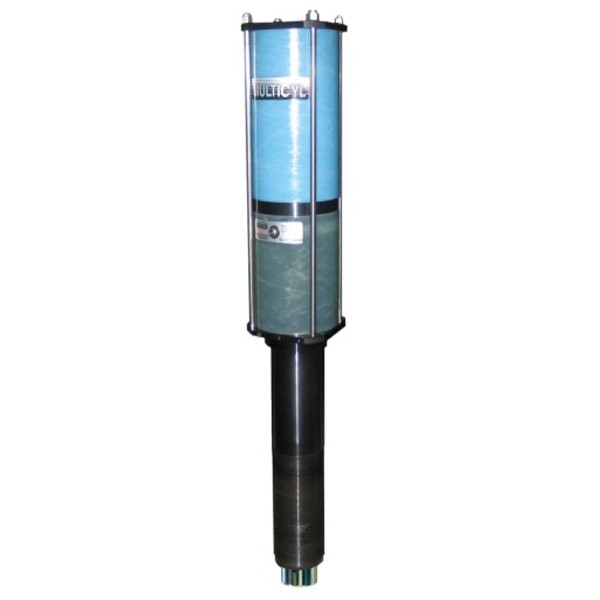

Multicyl Press

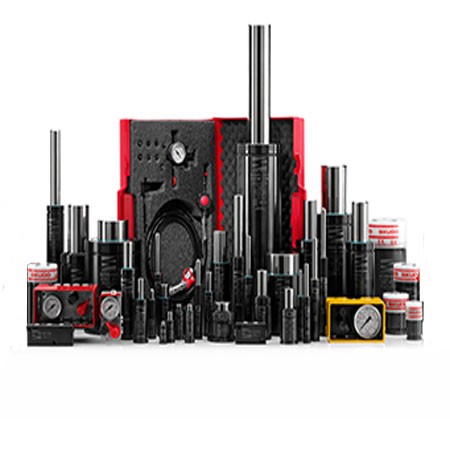

Nitrogen Gas Cylinders

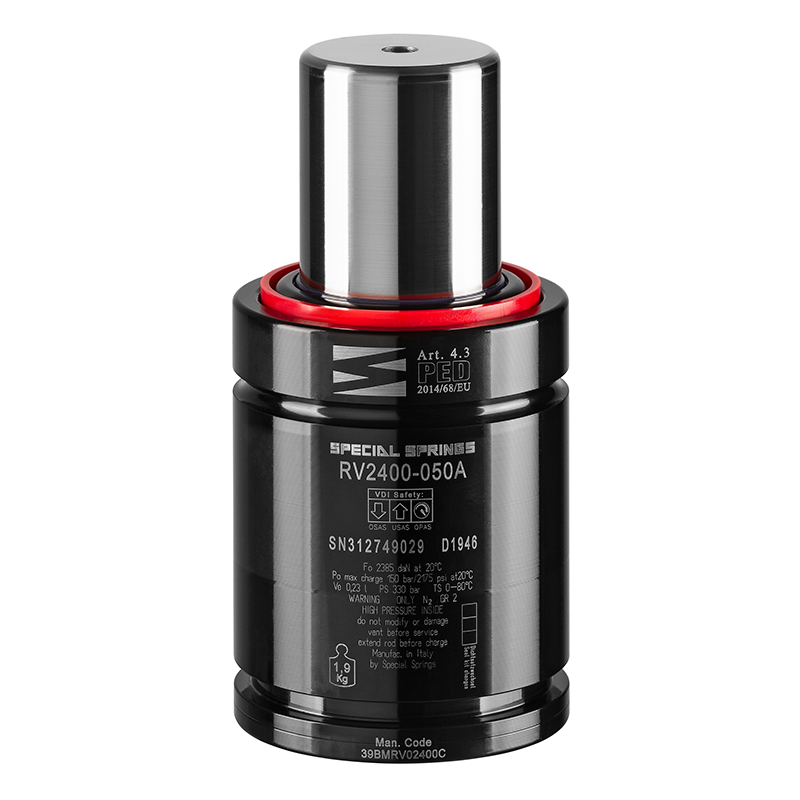

RV Series Min. height, Max. force

International/ Automotive Standards

ISO - VDI - BMW - FCA - Ford - Mazda - MB - Nissan - PSA - VW

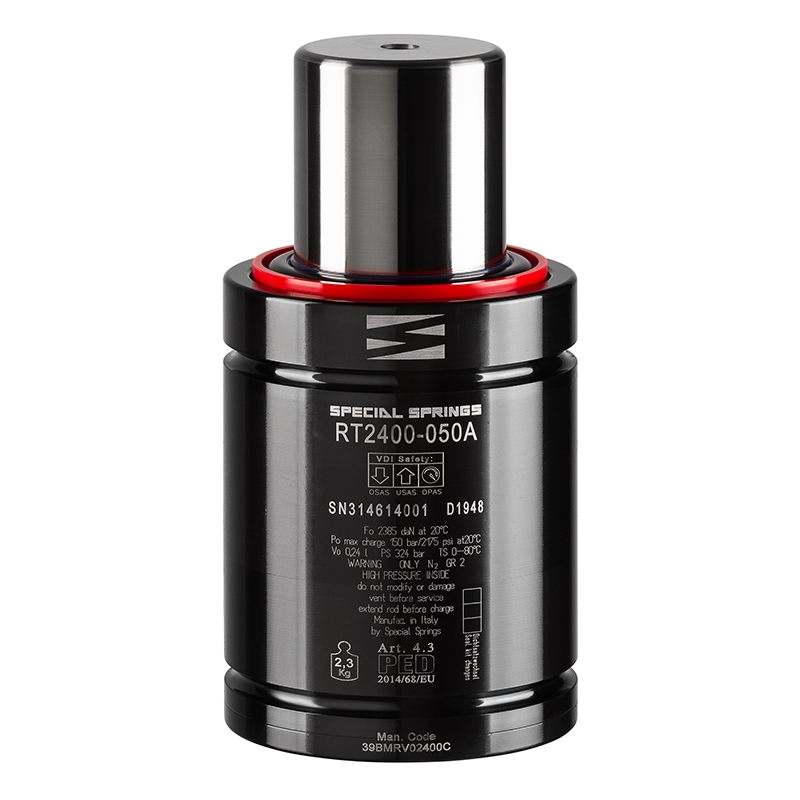

RT Series
Min.height, Max.force
G1/8 charging port

International/ Automotive Standards

Mazda - Nissan - PSA - Toyota

MS Series
Mini cylinders + SKUDO

RS Series
Min. height, Max. force + SKUDO

RF Series
Min. height, Max. force
G1/8 charging port

International/ Automotive Standards

FCA

RG Series
Min.height, Max.force
G1/8 charging port

S Series
ISO forces, low profile

International/ Automotive Standards

MB - Renault - Suzuki

SC - SCF Series
ISO 11901

International/ Automotive Standards

VDI - BMW - FCA - Ford - Mazda - MB - Nissan - VW - PSA - Renault - Suzuki

H - HF Series
ISO Standard, high force

International/ Automotive Standards

ISO - VDI - BMW - FCA - VW

LS Series
Zero force on contact

Controllable Cylinders

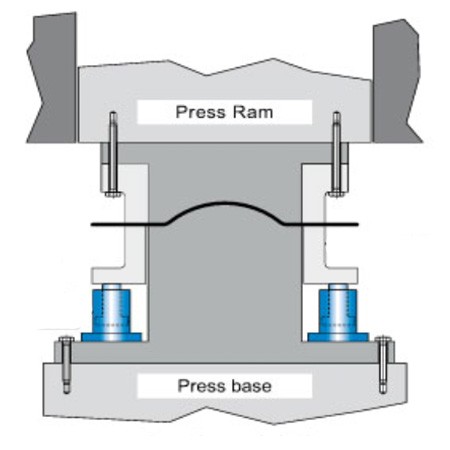

Controllable Return Cylinders

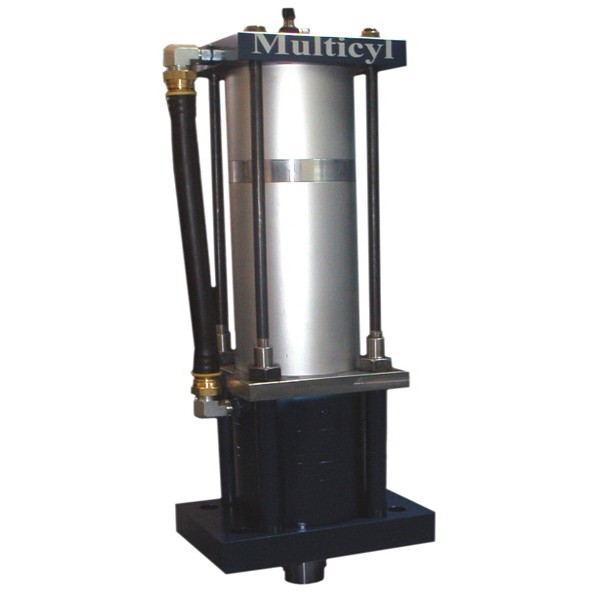

DL
DL Multicyl Double Acting Press Cylinder

Max Tonnage

20T, 30T

MC
MC Multicyl Single Acting Press Cylinder

Max Tonnage

2.5T, 6T, 7.5T

XL
XL Multicyl Single Acting Press Cylinder

Max Tonnage

7.5T, 10T, 12.5T

DX
DX Multicyl Double Acting Press Cylinder

Max Tonnage

6T, 12.5T

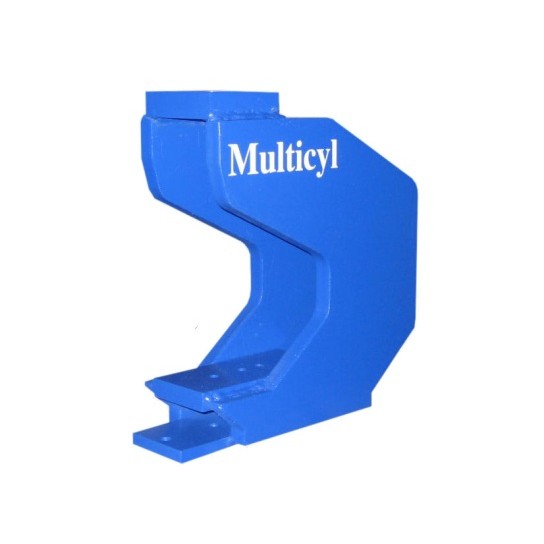

C-FRAME
C-FRAME For Multicyl Press Cylinders

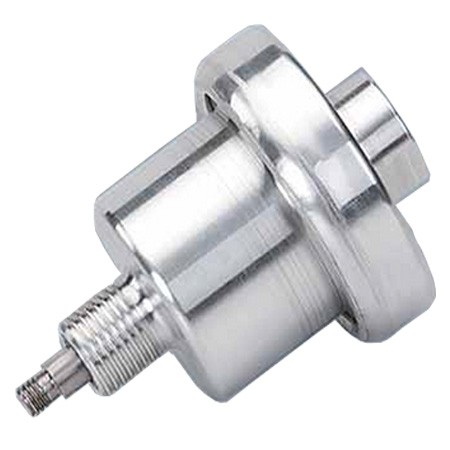

KH
KH Short Stroke Diaphragm Pressure Cylinder

KH-GS
KH-GS Short Stroke Diaphragm Pressure Cylinder

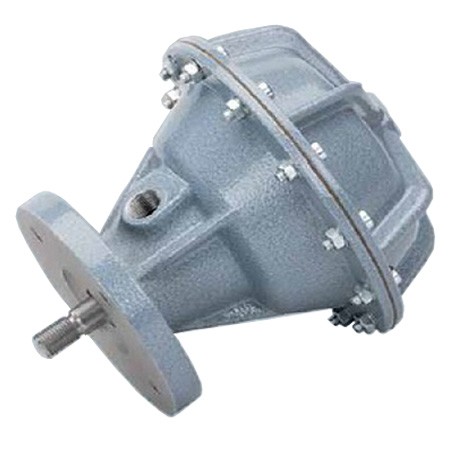

KHF
KHF Short Stroke Diaphragm Pressure Cylinder

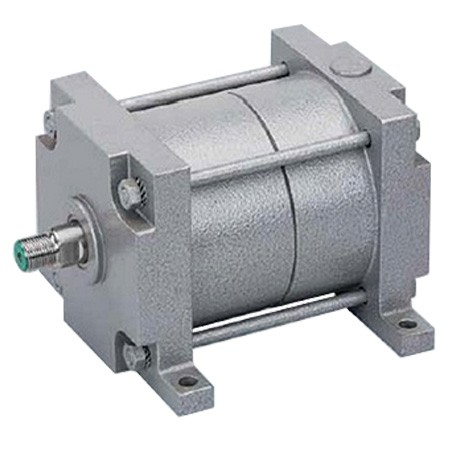

MH
MH Medium Stroke Diaphragm Pressure Cylinder

MH-F
MH-F Medium Stroke Diaphragm Pressure Cylinder


MH-S
MH-S Medium Stroke Diaphragm Pressure Cylinder

BD
BD Distribution Blocks for Nitrogen Gas Cylinders

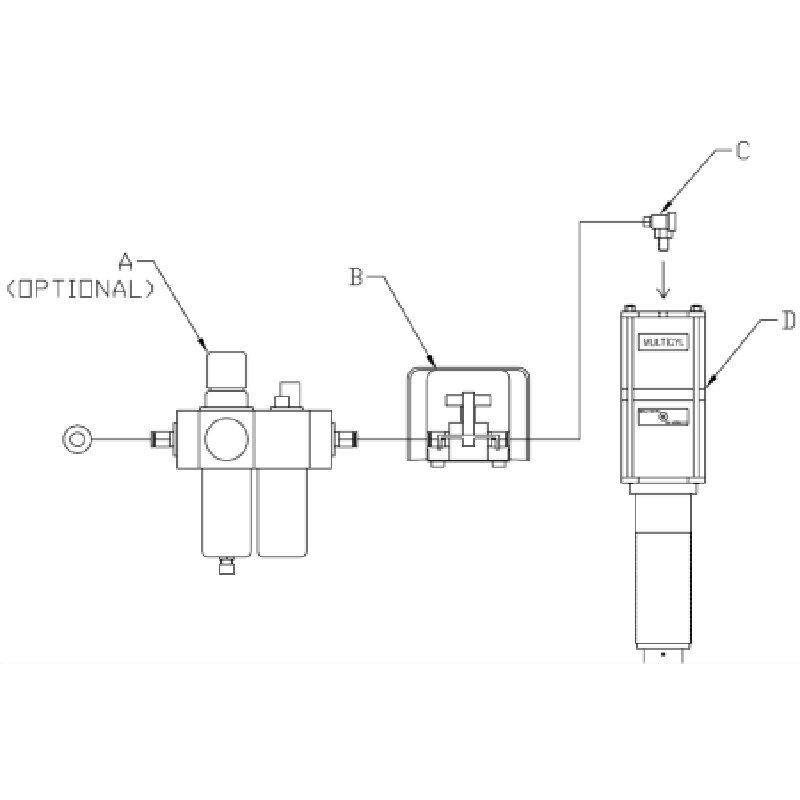

ACP
ACP Air Control Package for Multicyl Press Cylinders

AC
AC Gas Spring Cylinder, Controlled Return Delay System


GN732.1
Cylinder Head Shoulder Bolts, Steel, Blackened


GN732.1
Cylinder Head Shoulder Bolts, Stainless Steel

RG750
Body Ø=45mm
Stroke Cu=10-125mm
Initial Force F0=740daN

RG1000
Body Ø=50mm
Stroke Cu=10-125mm
Initial Force F0=920daN

RG1500
Body Ø=63mm
Stroke Cu=10-125mm
Initial Force F0=1530daN

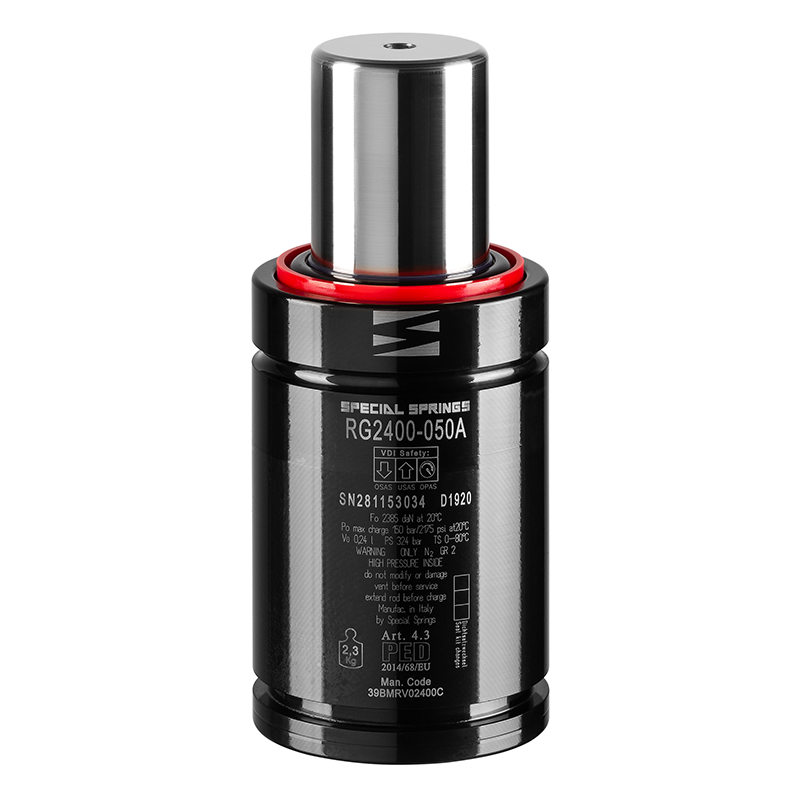

RG2400
Body Ø=75mm
Stroke Cu=10-125mm
Initial Force F0=2385daN

RG4200
Body Ø=95mm
Stroke Cu=16-125mm
Initial Force F0=4240daN

RT350
Body Ø=32mm
Stroke Cu=10-125mm
Initial Force F0=360daN

Standards

PG24D (Mazda)

RT500
Body Ø=38mm
Stroke Cu=10-125mm
Initial Force F0=470daN

Standards

PG24D (Mazda)

RT750
Body Ø=45mm
Stroke Cu=10-125mm
Initial Force F0=740daN

Standards

PG24D (Mazda) K 32 R (Nissan)

RT1000
Body Ø=50mm
Stroke Cu=10-125mm
Initial Force F0=920daN

Standards
K 32 R (Nissan) E24.54.815.G (PSA) SMS DNH 3203n Rev.3 (Toyota)

RT1200
Body Ø=50mm
Stroke Cu=10-125mm
Initial Force F0=1060daN

RT1500
Body Ø=63mm
Stroke Cu=10-125mm
Initial Force F0=1530daN

RT2400
Body Ø=75mm
Stroke Cu=10-125mm
Initial Force F0=2385daN

Standards
K 32 R (Nissan) E24.54.815.G (PSA) SMS DNH 3203n Rev.3 (Toyota)

RT4200
Body Ø=95mm
Stroke Cu=16-125mm
Initial Force F0=4240daN

Standards

K 32 R (Nissan) E24.54.815.G (PSA) SMS DNH 3203n Rev.3 (Toyota)

RT6600
Body Ø=120mm
Stroke Cu=16-125mm
Initial Force F0=6630daN

Standards

SMS DNH 3203n Rev.3 (Toyota)

RT9500
Body Ø=150mm
Stroke Cu=19-125mm
Initial Force F0=9540daN

Standards

SMS DNH 3203n Rev.3 (Toyota)

HT500 T1
Body Ø=38mm
Stroke Cu=10-125mm
Initial Force F0=390daN

H700
Body Ø=45mm
Stroke Cu=10-160mm
Initial Force F0=740daN

H1000
Body Ø=50mm
Stroke Cu=13-300mm
Initial Force F0=920daN

H1500
Body Ø=63mm
Stroke Cu=13-300mm
Initial Force F0=1530daN

H2400
Body Ø=75mm
Stroke Cu=25-300mm
Initial Force F0=2385daN

Standards
ISO 11901-4 - VDI 3003 Blatt 4 - B2 4008 (BMW) 075.90.65 (FCA) 39D 838 (VW)

H4200
Body Ø=95mm
Stroke Cu=25-300mm
Initial Force F0=4240daN

Standards
ISO 11901-4 - VDI 3003 Blatt 4 - B2 4008 (BMW) 075.90.65 (FCA) 39D 838 (VW)

H6600
Body Ø=120mm
Stroke Cu=25-300mm
Initial Force F0=6630daN

Standards
ISO 11901-4 - VDI 3003 Blatt 4 - B2 4008 (BMW) 075.90.65 (FCA) 39D 838 (VW)

H9500
Body Ø=150mm
Stroke Cu=25-300mm
Initial Force F0=9540daN

Standards
ISO 11901-4 - VDI 3003 Blatt 4 - B2 4008 (BMW) 075.90.65 (FCA) 39D 838 (VW)

H18500
Body Ø=195mm
Stroke Cu=25-300mm
Initial Force F0=18400daN

LS1500
Body Ø=75mm
Stroke Cu=25-300mm
Initial Force F0=0daN

LS2400
Body Ø=75mm
Stroke Cu=25-300mm
Initial Force F0=0daN

LS3000
Body Ø=95mm
Stroke Cu=25-300mm
Initial Force F0=0daN

LS4200
Body Ø=95mm
Stroke Cu=25-300mm
Initial Force F0=0daN

LS5000
Body Ø=120mm
Stroke Cu=25-300mm
Initial Force F0=0daN

LS6600
Body Ø=120mm
Stroke Cu=25-300mm
Initial Force F0=0daN

LS7500
Body Ø=150mm
Stroke Cu=25-300mm
Initial Force F0=0daN

LS9500
Body Ø=150mm
Stroke Cu=25-300mm
Initial Force F0=0daN

H500
Body Ø=38mm
Stroke Cu=10-125mm
Initial Force F0=470daN

HF500
Body Ø=35,7mm
Stroke Cu=10-125mm
Initial Force F0=470daN

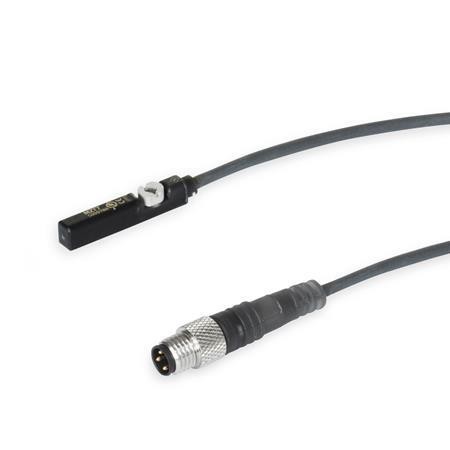

GN-3380-Sensor-for-pneumatically-operated-clamps-pneumatically-operated-cylinders.jpg

GN3380
Sensor, for Pneumatically Operated Clamps & Cylinders

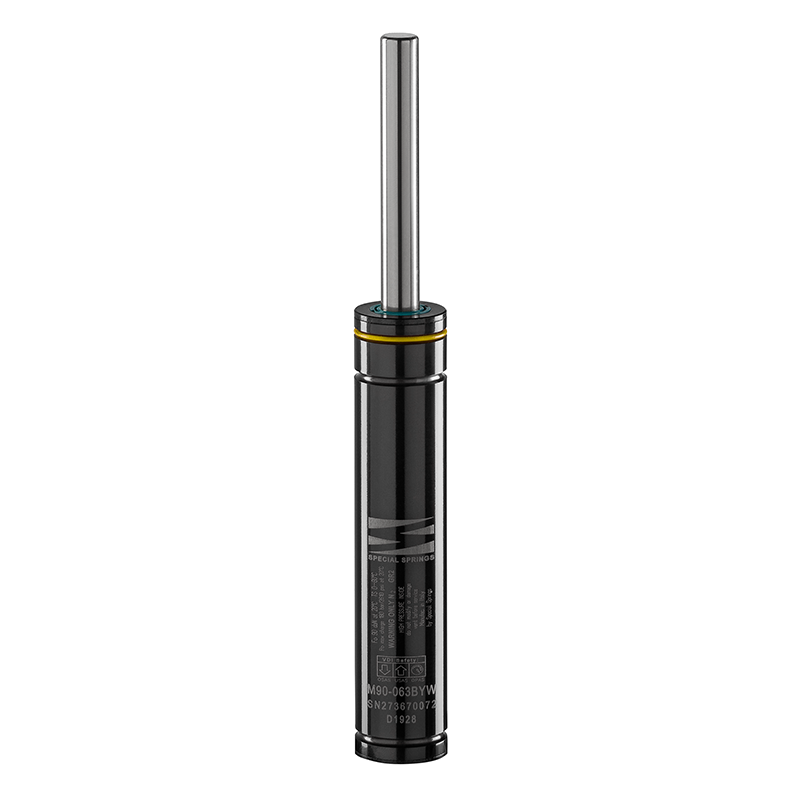

M50
Body Ø=12mm
Stroke Cu=7-125mm
Initial Force F0=13-50daN

M70
Body Ø=15mm
Stroke Cu=17-70mm
Initial Force F0=18-70daN

M300
Body Ø=32mm
Stroke Cu=7-125mm
Initial Force F0=80-320daN

M90 TBM
Body Ø=19mm
Stroke Cu=7-125mm
Initial Force F0=5-90daN

M90 TEM
Body Ø=19mm
Stroke Cu=7-125mm
Initial Force F0=5-90daN

M90 TBI
Body Ø=19mm
Stroke Cu=7-125mm
Initial Force F0=5-90daN

M90
Body Ø=19mm
Stroke Cu=7-125mm
Initial Force F0=5-90daN

M200
Body Ø=25mm
Stroke Cu=7-125mm
Initial Force F0=17-200daN

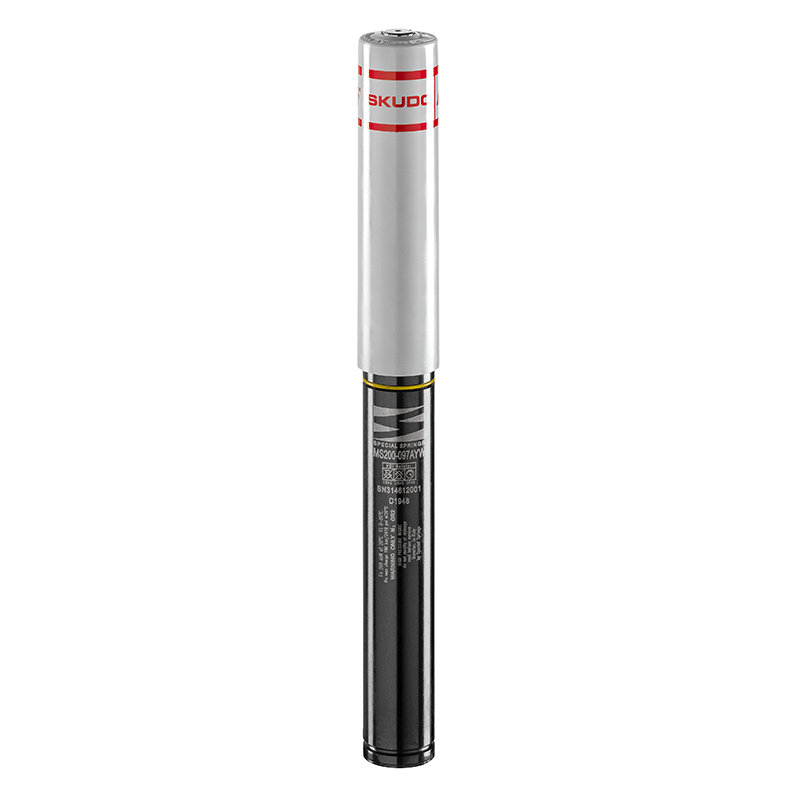

MS90
Mini Cylinder, Contaminant Prevention with SKUDO

MS200
Mini Cylinder, Contaminant Prevention with SKUDO

RG6600
Body Ø=95mm
Stroke Cu=16-125mm
Initial Force F0=6600daN

HT700 T1
Body Ø=45mm
Stroke Cu=10-200mm
Initial Force F0=615daN

HT1000 T1
Body Ø=50mm
Stroke Cu=13-300mm
Initial Force F0=770daN

HT500 T2
Body Ø=38mm
Stroke Cu=10-125mm
Initial Force F0=360daN

HT700 T2
Body Ø=45mm
Stroke Cu=10-200mm
Initial Force F0=565daN

HT1000 T2
Body Ø=50mm
Stroke Cu=13-300mm
Initial Force F0=705daN

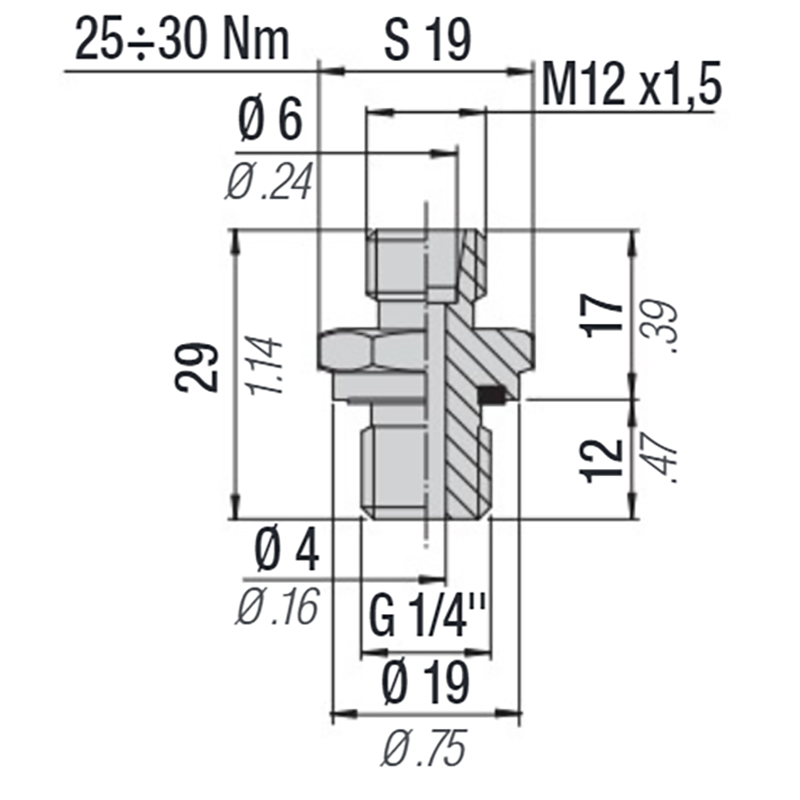

EO-24 Connection
Hose to Cylinder/Panel Connection

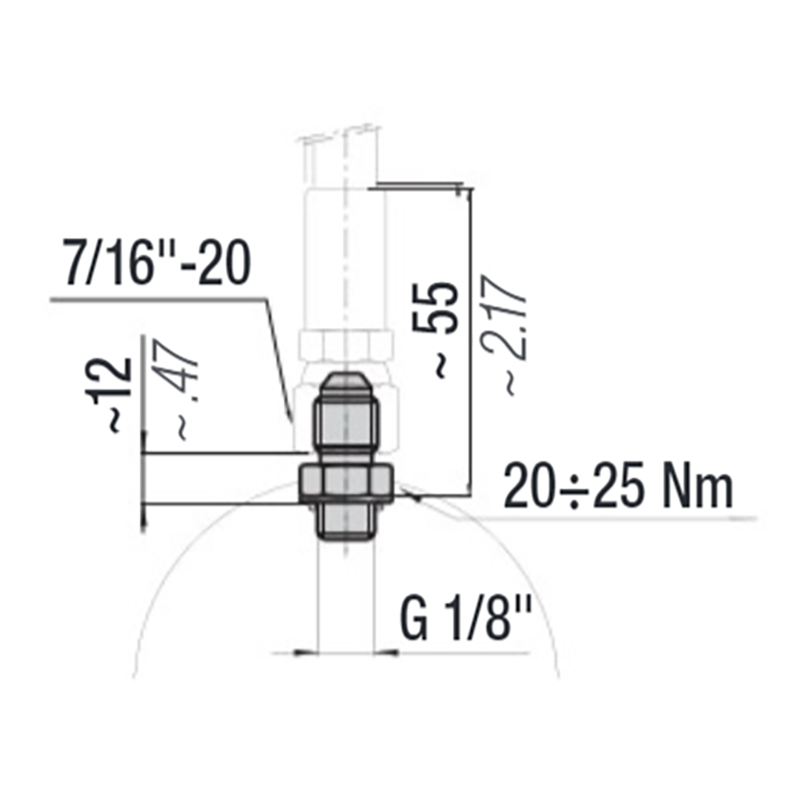

JIC 37 Connections
Hose Cylinder / Panel Connections

H300
Body Ø=32mm
Stroke Cu=10-125mm
Initial Force F0=300daN

M50 TBI
Body Ø=12mm
Stroke Cu=7-125mm
Initial Force F0=13-50daN

M50 TBM1
Body Ø=12mm
Stroke Cu=7-125mm
Initial Force F0=13-50daN

M50 TBM2
Body Ø=12mm
Stroke Cu=7-125mm
Initial Force F0=13-50daN

M50 TEM
Body Ø=12mm
Stroke Cu=7-125mm
Initial Force F0=13-50daN

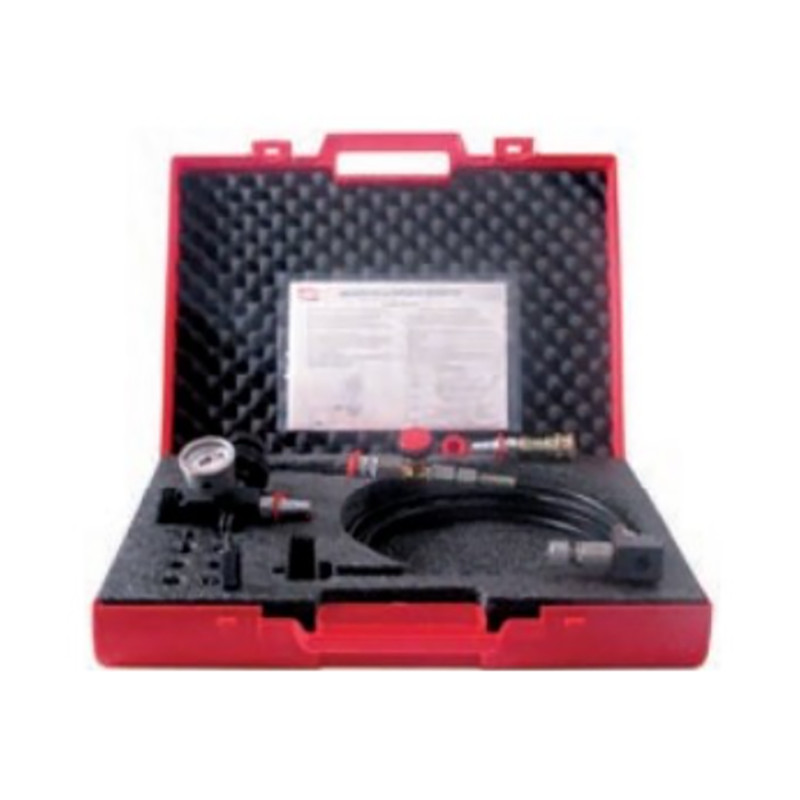

DM-A
Multi Device for Checking and Charging Cylinders

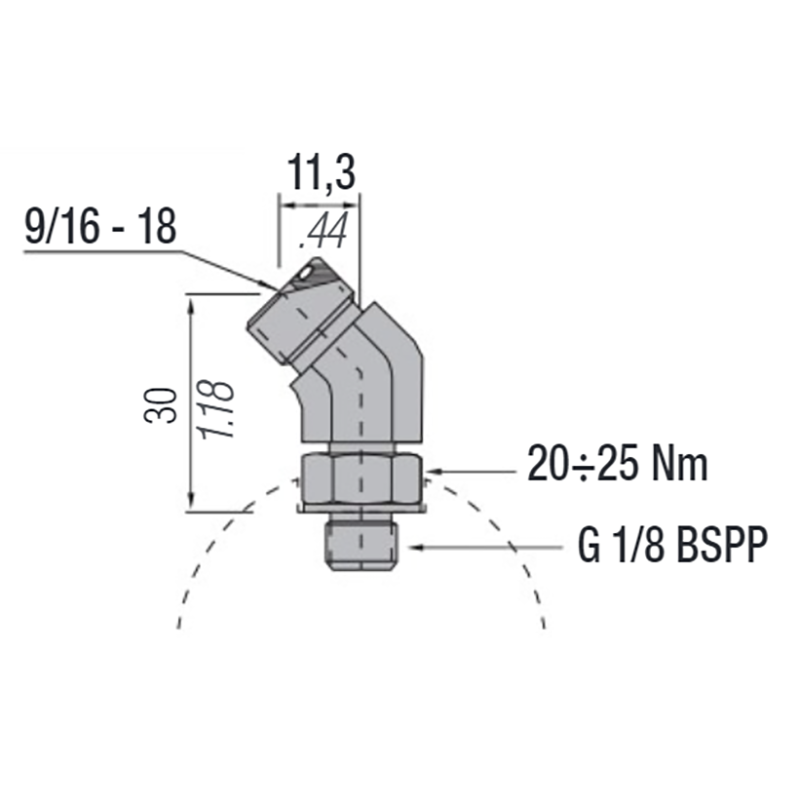

PA
ORFS Hose Cylinder/Panel Connections

GN9192.3
Height Cylinders for Down Thrust Clamps GN9192

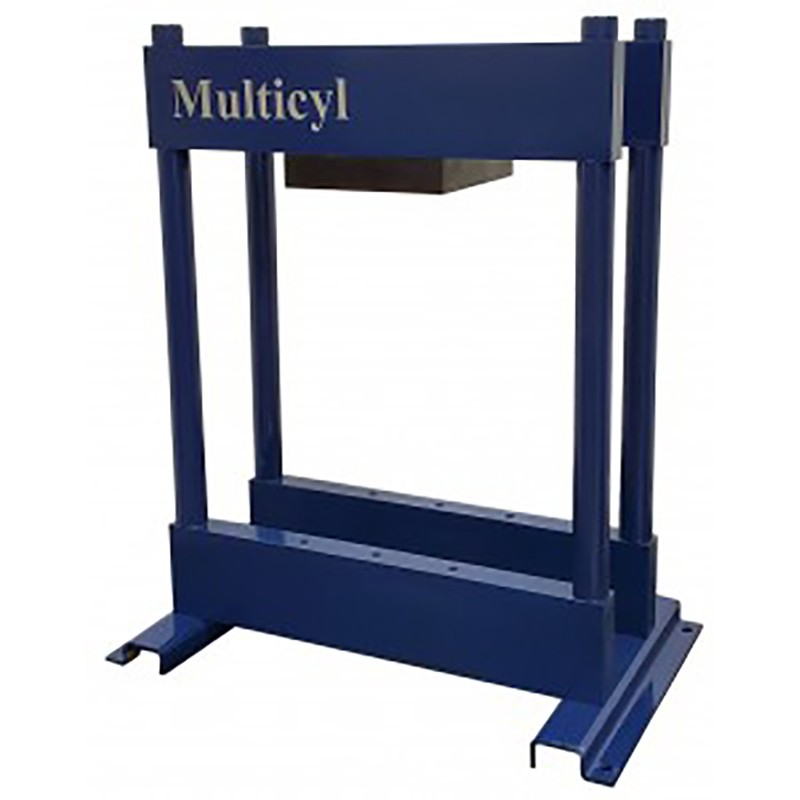

H-FRAME
H-FRAME for Multicyl Press Cylinders

RF1000
Body Ø=50mm
Stroke Cu=13-125mm
Initial Force F0=920daN

GN798.3-Retractable_Handles_with_Hold_in_Both_Positions__Black_Plastic_Handle_with_Blackened_Steel_Retractable_Mechanism.png

GN798.3
Retractable Handle, Hold In 2 Positions, Plastic, Steel Mechanism

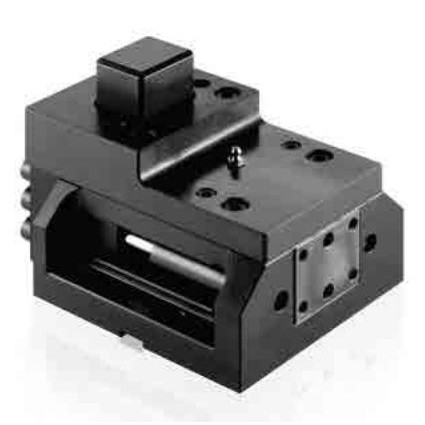

MASC
MASC Mechanical Cam Unit, Power up to 40,000 daN

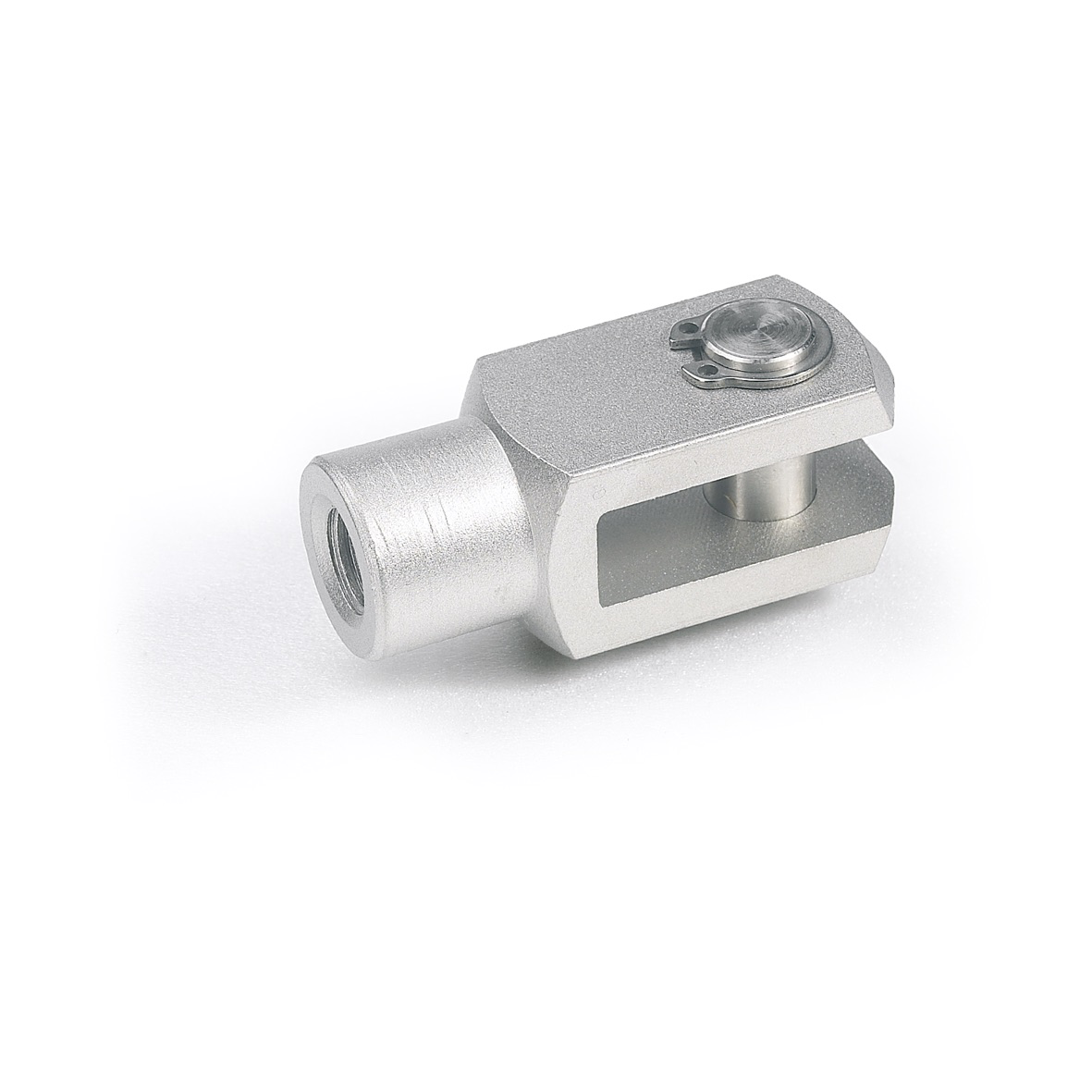

GN751
Fork Joint, Safety, Fork Head DIN71752 and Pin, Stainless Steel

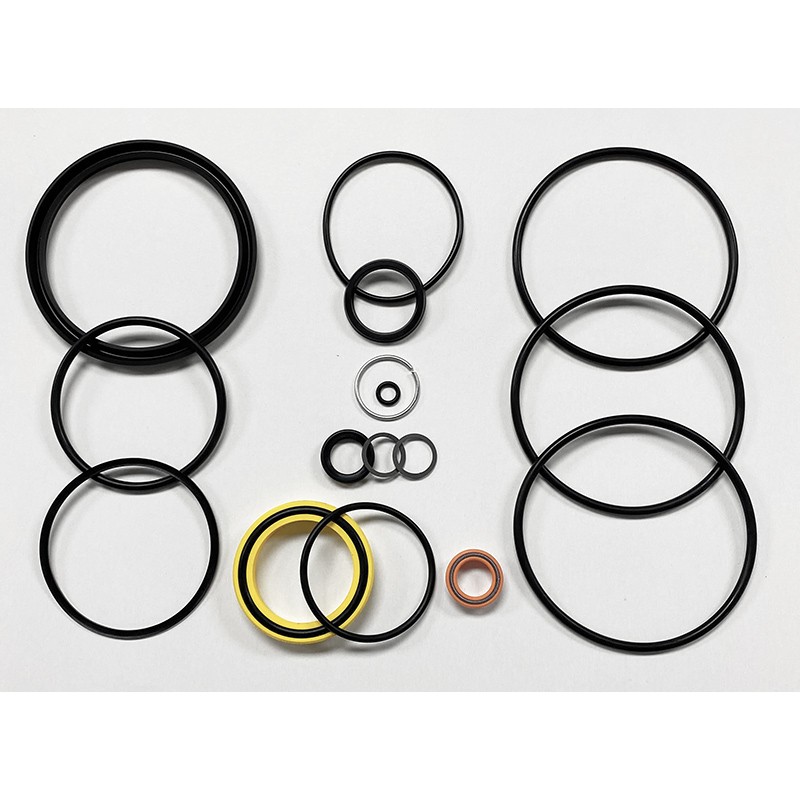

SK
SK Seal Kits for Multicyl Press Cylinders

MICRO32 Connection
Hose Cylinder / Panel Connection

GAS SPRING INFORMATION
Safety features, User information & N2 benefits

GN355
Levelling Element, Stainless, with Levelling Screw

GN355
Levelling Element, Steel, with Levelling Screw

NG16X1,5
NG16X1,5 - Gas Ejector VDI 3004, threaded body with USAS

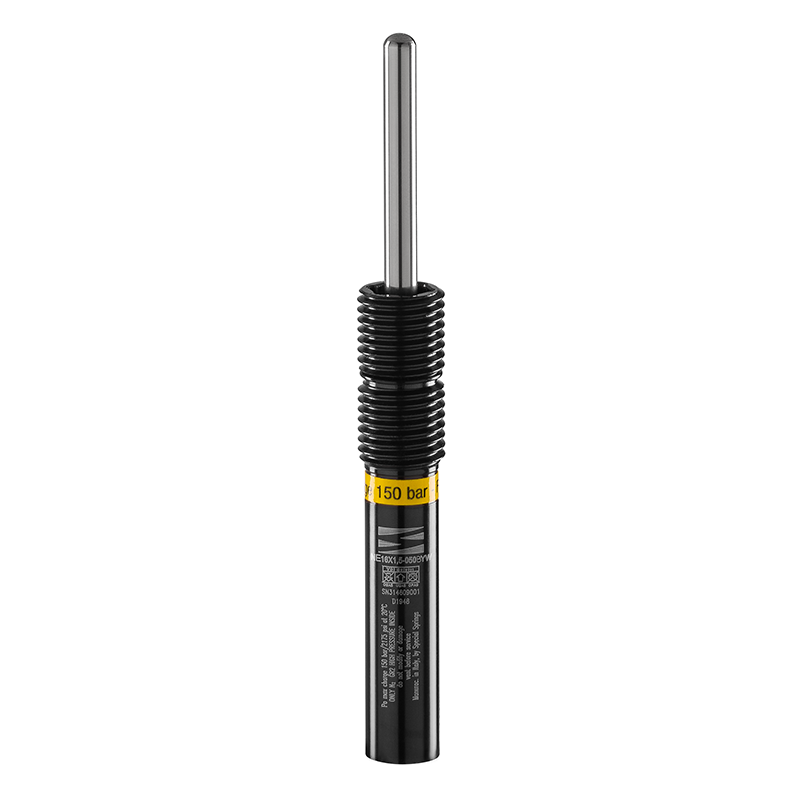

NE16X1,5
NE16X1,5 - Gas Ejector VDI 3004, threaded body with USAS

NE16X2
NE16X2 - Gas Ejector VDI 3004, threaded body with USAS

NE24X1,5
NE24X1,5 - Gas Ejector VDI 3004, threaded body with USAS

RF750
Body Ø=45mm
Stroke Cu=10-125mm
Initial Force F0=740daN

Standards

075.90.60 (FCA)

RF1200
Body Ø=50mm
Stroke Cu=13-125mm
Initial Force F0=920daN

RF1500
Body Ø=50mm
Stroke Cu=13-125mm
Initial Force F0=1060daN

Standards

075.90.60 (FCA)

RF2400
Body Ø=63mm
Stroke Cu=13-125mm
Initial Force F0=1530daN

Standards

075.90.60 (FCA)

RV750
Body Ø=45mm
Stroke Cu=10-125mm
Initial Force F0=740daN

Standards
ISO 11901-3 - VDI3003-Blatt 3 - B2 4005 (BMW) W-DX35-6204 (Ford) B8 3180 220 000 004 (MB) E24.54.815.G more...

RV1200
Body Ø=50mm
Stroke Cu=10-125mm
Initial Force F0=1060daN

RV1500
Body Ø=63mm
Stroke Cu=10-125mm
Initial Force F0=1530daN

Standards
ISO 11901-3 - VDI3003-Blatt 3 - B2 4005 (BMW) W-DX35-6204 (Ford) B8 3180 220 000 004 (MB) 39D 997 (VW)

RV2400
Body Ø=75mm
Stroke Cu=10-125mm
Initial Force F0=2385daN

Standards
ISO 11901-3 - VDI3003-Blatt 3 - B2 4005 (BMW) W-DX35-6204 (Ford) B8 3180 220 000 004 (MB) more...
