Understand The World Of Toggle Clamps, with Our Handy Buyers Guide!

Toggle clamps are an essential item in many industries, however the sheer choice available can be confusing. In this buyers guide, we look at some of the different points to consider when choosing. At Berger Tools, we have the perfect toggle clamp for your needs and aim to assist with your choice.

What does a Toggle Clamp Do?

Toggle clamps are used to hold work pieces secure while processes are carried out, freeing up your hands on smaller items and allowing larger such as car or aeroplane parts to be held steady. They give a consistent, set pressure and are fast and easy to adjust while working. There is a range of holding forces to prevent damage, and neoprene tips prevent any risk of scratching.

How Does a Toggle Clamp Work?

Toggle clamps use a pivot and lever system to provide a large amount of clamping force with very little effort by the operator. The clamping arm can hold a spindle with a soft rubber tip. Pushing the lever will bring the clamp into use so that the rubber tip holds the workpiece in place. When the toggle clamp is closed this tip is locked in place against the work piece, holding it firmly in place while processes such as drilling, cutting or welding are carried out. The spindle is fully adjustable, both for height and along the length of the arm.
Quick release mechanisms are efficient, as the clamp can rapidly be engaged or disengaged.

Where are Toggle Clamps Used?

They are used in countless industrial applications, including construction, woodworking and metal work, welding, assembly lines, machining, automotive and aerospace. They are used with jigs and fixtures, and provide a fast, easy method of clamping and releasing parts.

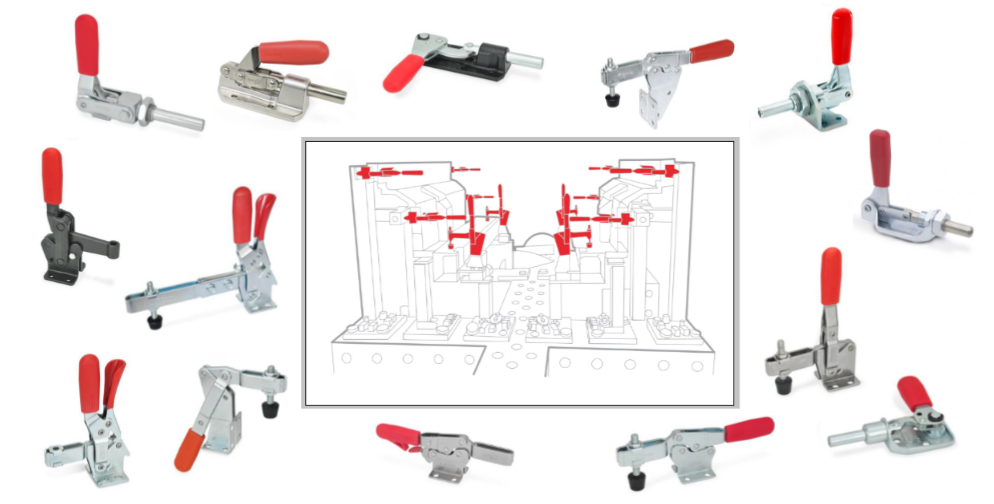

What Types of Toggle Clamps are Available?

1. Horizontal Toggle Clamps: These clamps have a horizontal handle and are often used in woodworking and metalworking.
2. Vertical Toggle Clamps: These clamps have a vertical handle and are useful where space is restricted.
3. Plunger or Push / Pull Toggle Clamps: These can push or pull and object into place, and are ideal for securing doors or lids.



What to Consider When Choosing a Toggle Clamp.

It is important to chose the correct clamp for your projects requirements, Here are a few pointers to consider:

1. Holding Capacity: This indicates the maximum force the clamp can hold before it fails.
2. Clamping Force: This is the amount of force applied to the workpiece. Although a higher force indicates a more secure hold, some projects may be deformed or damaged through excess pressure.
3. Material: Clamps are offered in steel and stainless steel, for durability and to resist corrosion.
4. Types: Heavy duty versions may be a suitable option, and locking types are offered which ensure that the clamp cannot inadvertently be released, whether through accident or vibrations. These locks have a one handed operation to ensure efficiency and speed of use.
5. Available space: Option are available to allow the use of toggle clamps even in a restricted space.
6. Mounting Options: Multiple holes and holes with adjustments are offered, which allows more flexibility for different set ups. We also have versions which are attached by welding.
7. Handle Design: Choosing ergonomic handle options reduces hand fatigue during repetitive actions and gives a better, more secure grip.

These features make toggle clamps an essential tool for anyone looking to improve the accuracy, safety, and efficiency of their work, and we hope that our guide makes it easy to choose the perfect clamps for your requirements! We have a wide range available, many in stock or with a short lead time, and we are happy to advise further - just use the form below to drop us a line!
