SL / SLR
Light Load Blue Die Spring, Japanese Standard JIS B 5012
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Please select desired options to reveal part number, price and availability
Product Description

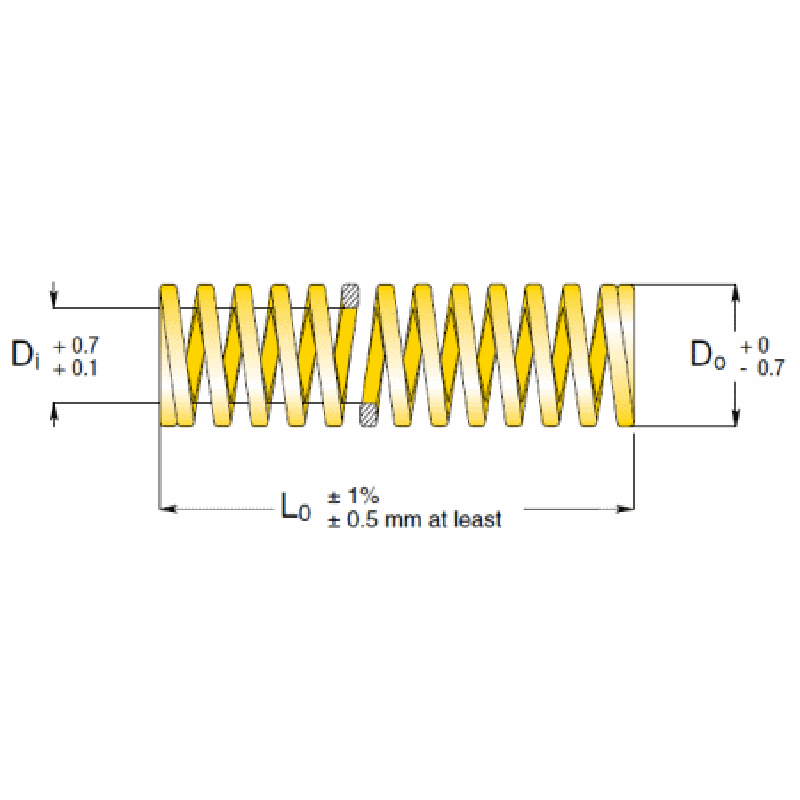

SF / SFR - Lightest Load Spring JIS B 5012 Japanese Standard.
Die spring, for very light loads. Rectangular wire high force compression spring, manufactured to JIS (Japanese Industrial Standards) and RoHS compliant.
High quality and long lasting, these springs are temperature tolerant from -30°C to 120°C.
Springs are supplied in packs sizes, varying between 2-50 pieces dependant on size chosen. Prices shown for each part – the pack size will be recalculated in your basket. Alternatively, for smaller quantities please contact our sales team for a quotation or call us on 01732 763377.
Custom made springs are also available, please contact us for further detail.
Specification
High grade alloy spring steel with characteristics to be found in automotive engine valve springs. Laboratory and dynamically performance tested.
Both ends closed and ground square to the axis.
All springs are compressed to solid to eliminate initial free length reduction.
Shot peened to reduce stress levels and improve working life.
On Request
Epoxy resin coating as standard - Delta Tone 9000 coating.
