RS6600 - Minimum Height, Maximum Force
Part of our most popular RS series of gas springs, these RS6600 cylinders are linkable using our Easy Manifold system, and feature the NEW OPAS (over pressure active safety), OSAS (overstroke active safety), and USAS (uncontrolled speed active safety) protections and over stroke marker as standard. For further details, see Gas Spring Safety Information
The RS6600 is a development of the original series of HR cylinders, combining minimum height with enhanced forces. The RS6600 is popular with Mercedes Benz (B8 3180 220 000 004), Ford (W-DX35-6204) and Volkswagon (39D 997), among others. They are the ideal choice for every designer for any application, with a wide range of body diameters and initial forces available from stock.
Series RV replaces Series HR & HRF which have been phased out.
F1i = Isothermal end force at 100% Cu
F1p = Polytrophic end force at 100% Cu (See Techincal Data - Catalogue Specification for more information)
Specification
Linkable - Easy manifold.
OPAS, OSAS, OSM, SKUDU and USAS protection

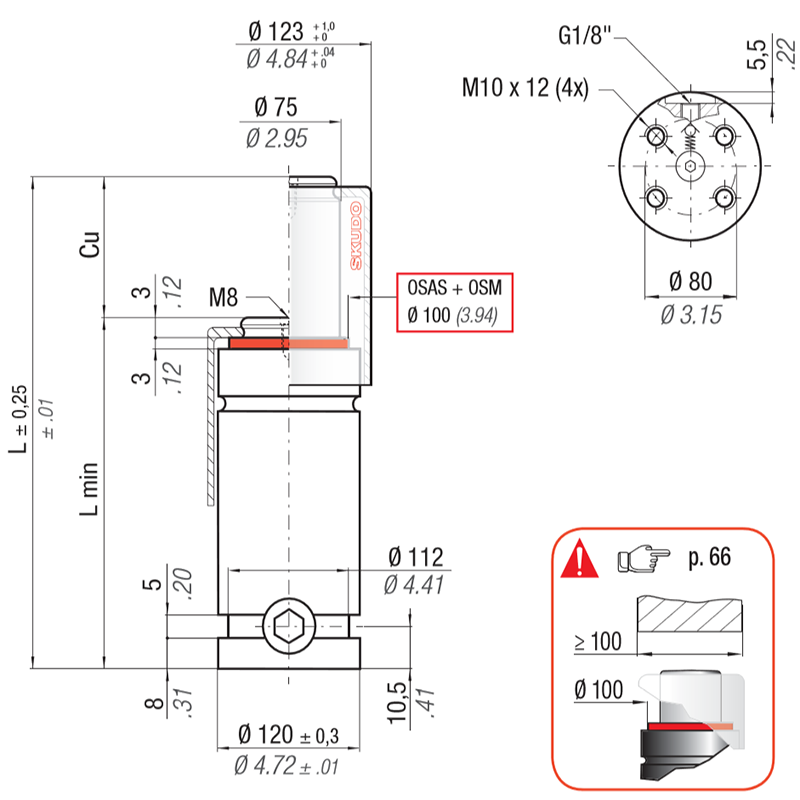

Dimensions according to ISO 11901-3.
CAD Viewer
Technical Data
