Product Description
RF1000 Min Height, Max Force (Fiat Spec)

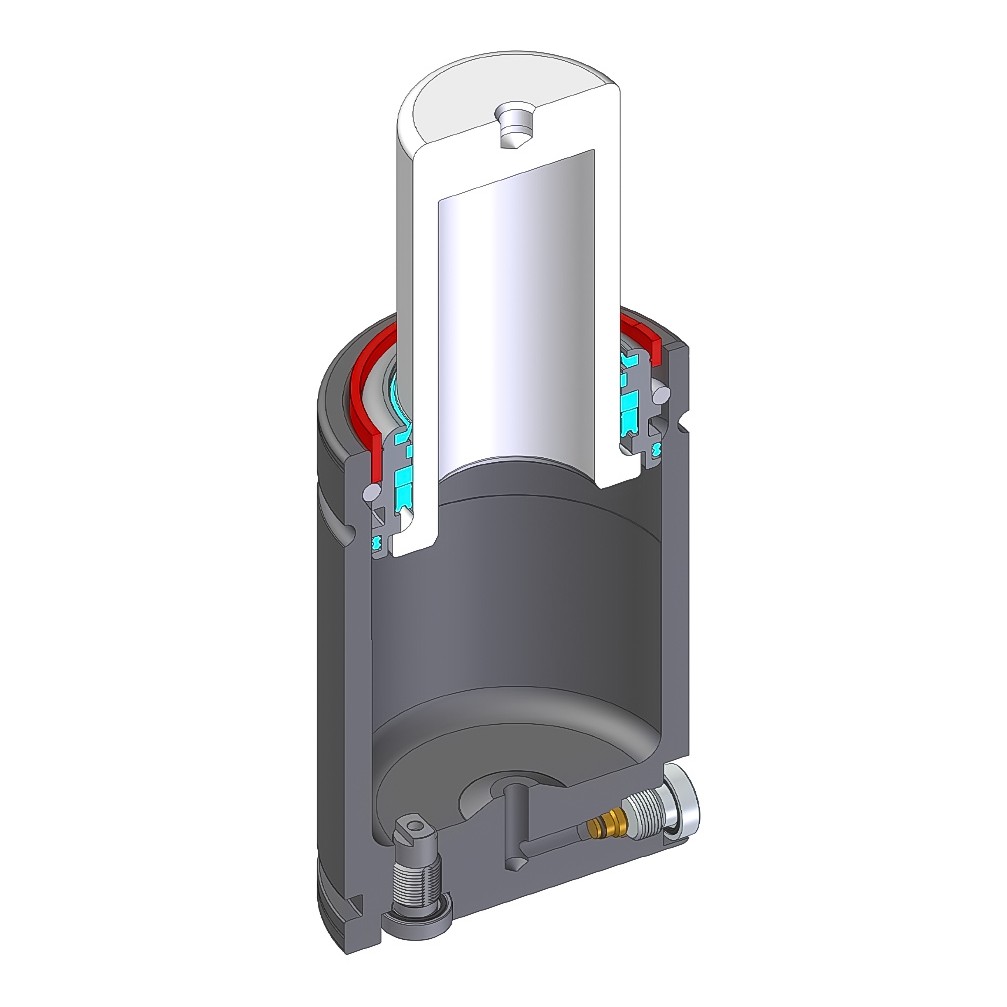

Our RF1000 series features an over stroke bushing that combined with the OSAS over stroke safety system make this our safest gas spring.
Available in contained & linkable (N) format.
A development of the original series of HR cylinders with minimum height and enhanced forces with OSAS (overstroke active safety), OPAS (overpressure active safety) and USAS (uncontrolled speed active safety) as standard. For further details, see Gas Safety Information.

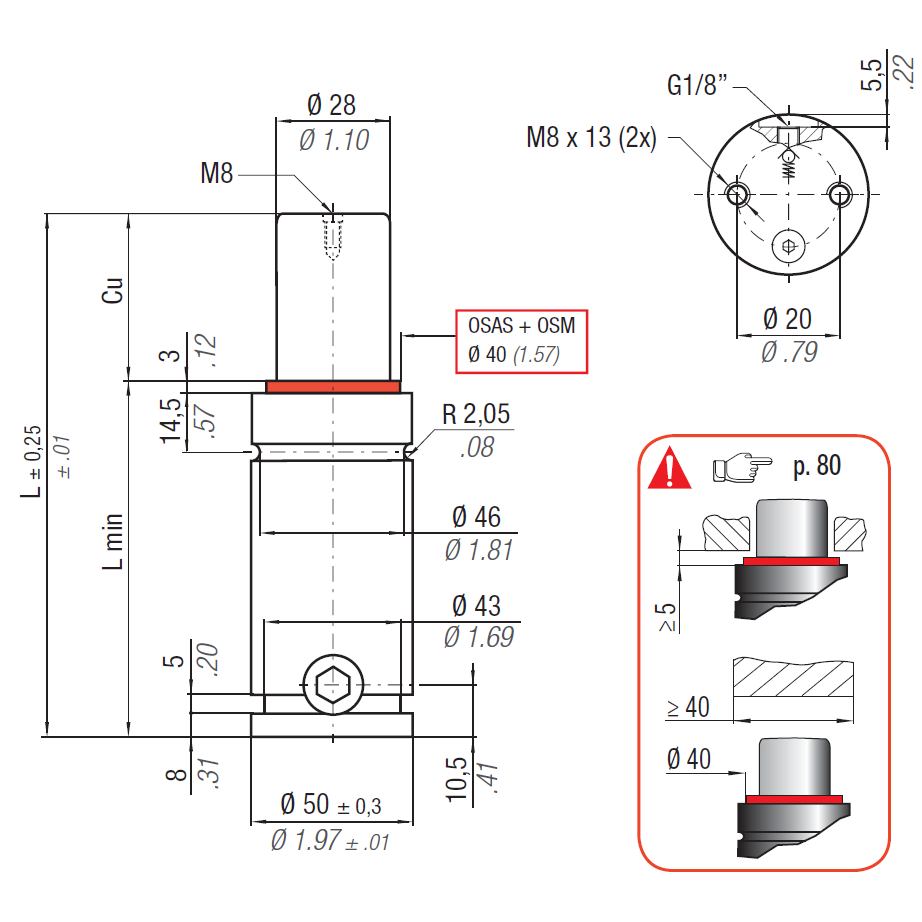

Dimensions according to VDI3003 and Fiat standard (RF). The ideal choice for every designer for any application. Connectable to system with a complete range of accessories: JIC37°, Minimess, Micro, US standard. Ideal for EASY MANIFOLD applications in the standard version.
F1i = Isothermal end force at 100% Cu
F1p = Polytrophic end force at 100% Cu (See Techincal Data - Catalogue Specification for more information)
