DIN9861DA Precision Punch with Countersunk Blue Head

Close Next Previous

CAD Viewer

Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

CAD Viewer

Technical Data

Product Description

DIN9861DA Precision Punch with Countersunk Blue Head

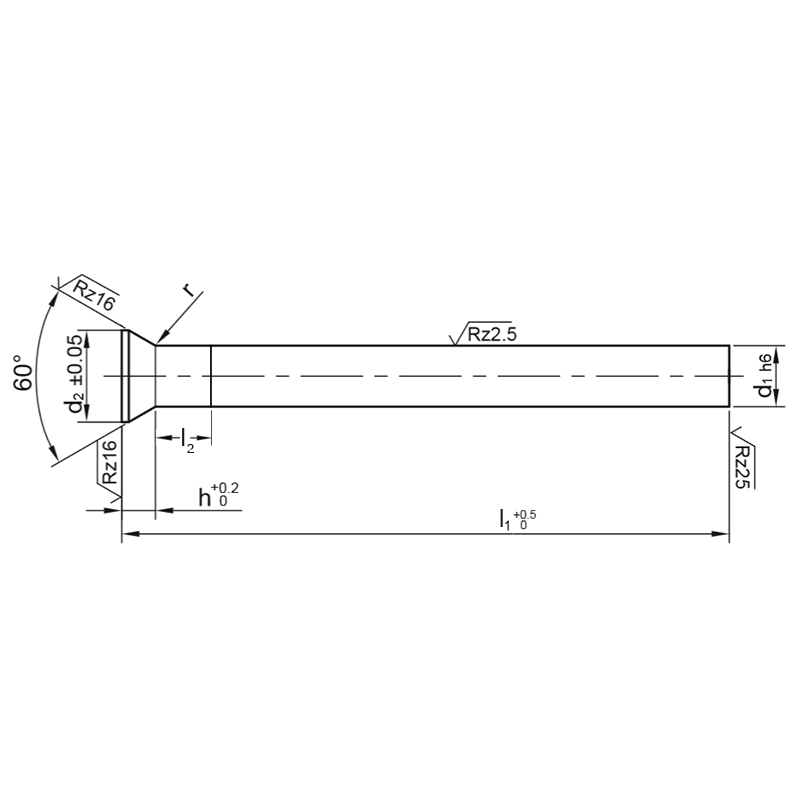

Precision Punch with countersunk (conical) head DIN9861 DA are hardened, tempered, ground, head hot tempered and annealed. DIN 9861 DA standard with permissible thickening under the head (d3 in diagram and table).

Please contact us with your special requests/drawings for quoting. We are happy to convert any punch and die supplier coding

Specification

Material M2 (HSS) - High speed steel, Hardness HRC - Shaft: 62~66, Head: 45~55

Material WS - Hardness HRC - Shaft: 60~64, Head: 40~50
