DIN9861D Precision Punch with Countersunk head, similar to ISO 6752 with TIN coating

Close Next Previous

CAD Viewer

Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

CAD Viewer

Technical Data

Product Description

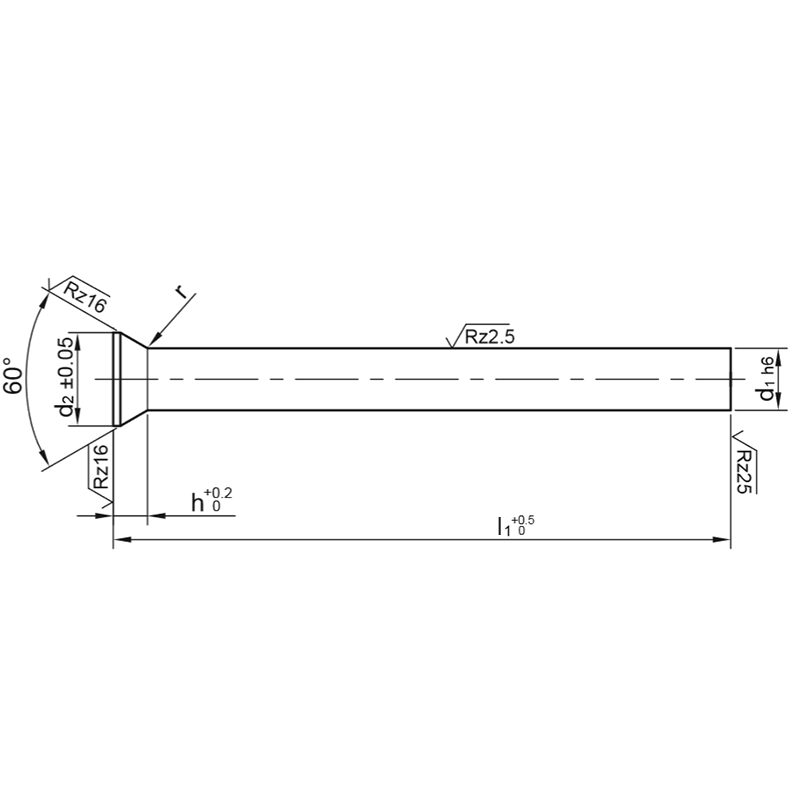

DIN9861D Precision Punch with Countersunk Head

These precision punches with countersunk (conical) head. DIN 9861D, are hardened, tempered, ground and lapped all over. Head hot forged and annealed. In contrast to type DIN 9861 DA these have a fine ground finished shaft (d1) h6 tolerance up to the head.

Please contact us with your special requests/drawings for quoting. We are happy to convert any punch and die supplier coding

Specification

Material ASP (Vanadis 23 - High performance powdered high speed steel) Hardness HRC- Shaft: 60~64, Head: 45~55

with TIN coating
