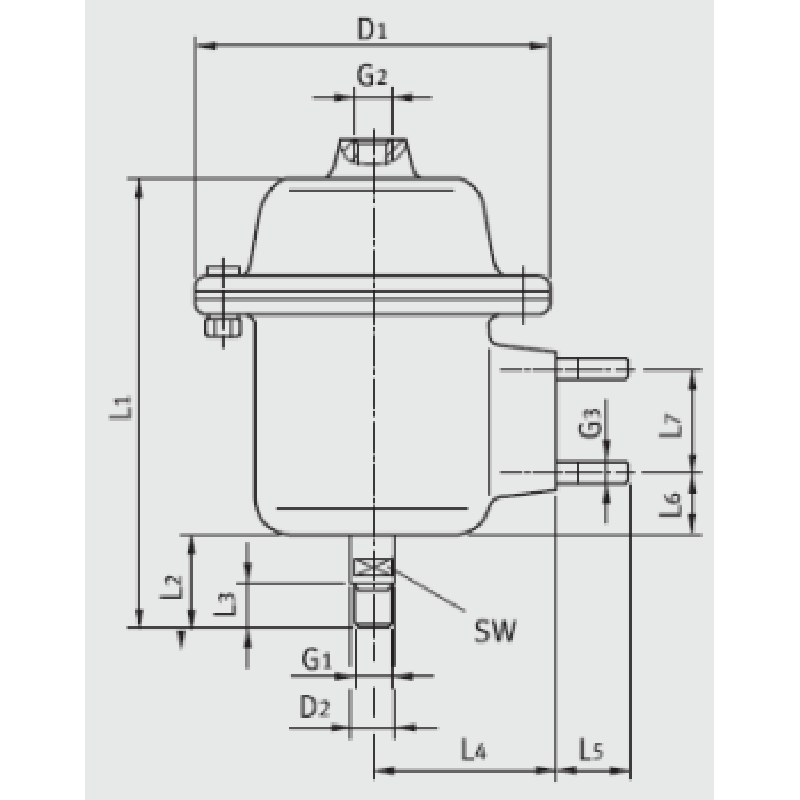

MH-S Medium Stroke Diaphragm Pressure Cylinder
Allows for sensitive conrol processes to be realised, which aren't possible in traditional piston cylinders. They operate precisely, reliably and without stick-slip effect under pressure differences of 0.01 to 10 bars.
Specification
Weight 0.85 kg
Single-acting
Max. pressurisation = 10 bar
Max. stroke = 50 mm
Air consumption per stroke/6 bar = 0.1 0.6 l
Max. strokefrequency = 100/min. (at effective valve cross section of 50 mm²)
Ambient temperature = -20 °C +80 °C
Weight 2.3 kg
Single-acting
Max. pressurisation = 10 bar
Max. stroke = 70 mm
Air consumption per stroke/6 bar = 0.5 2.5 l
Max. strokefrequency = 75/min. (at effective valve cross section of 50 mm²)
Ambient temperature = -20 °C +80 °C
