Please contact us your special requests/drawings for quoting.
We are happy to convert any punch and die supplier coding
Shapes
R - Rectangle

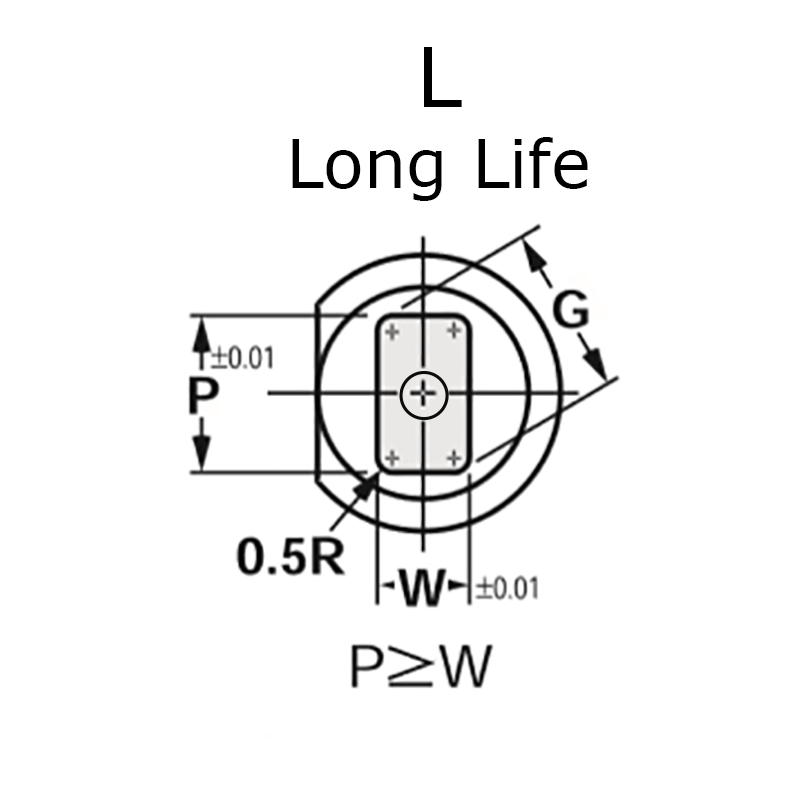

L - Long Life

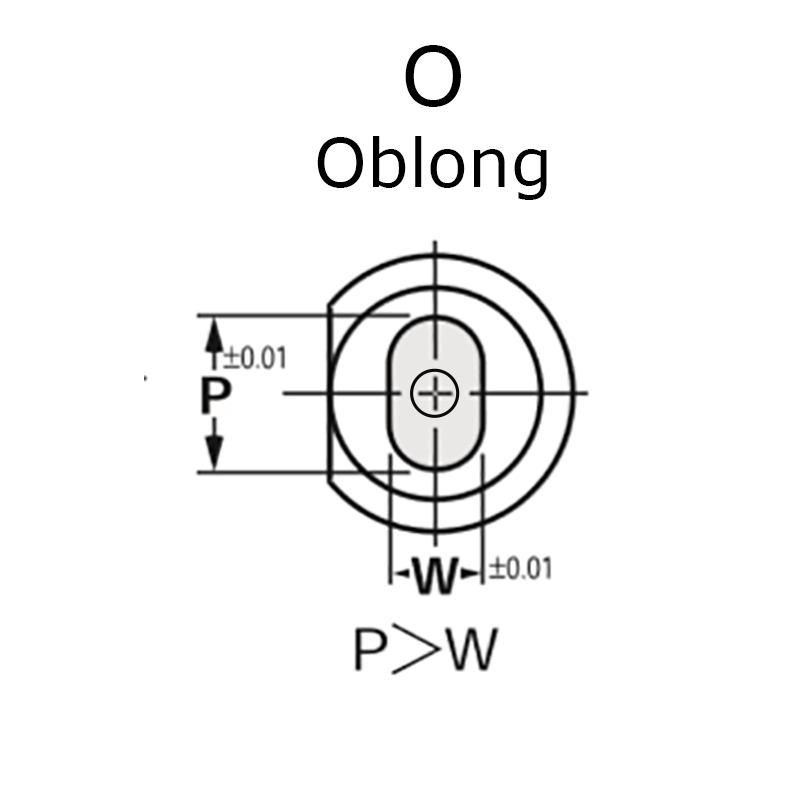

O - Oblong

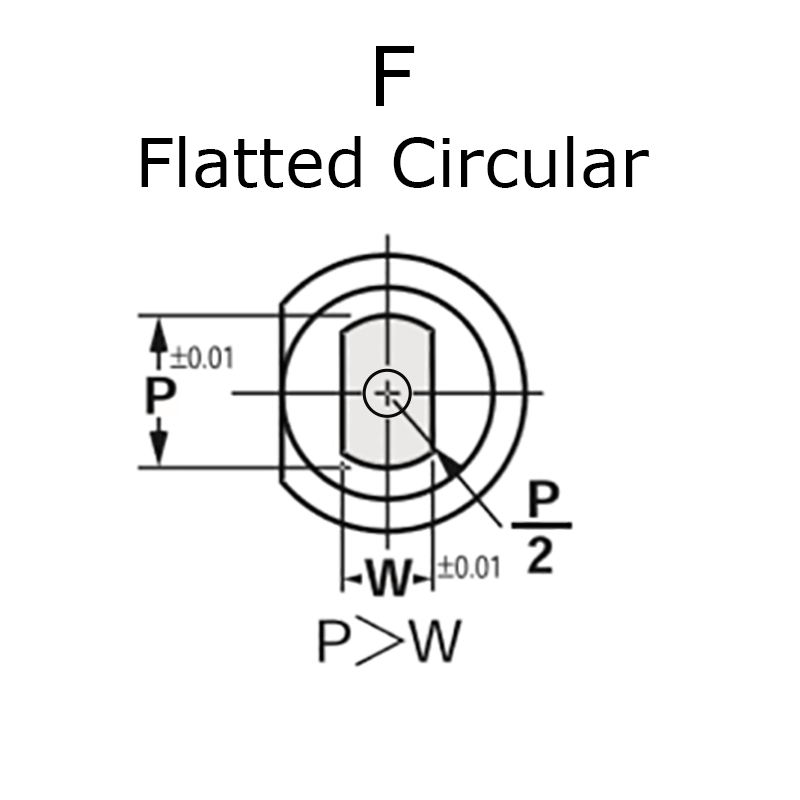

F - Flatted Round

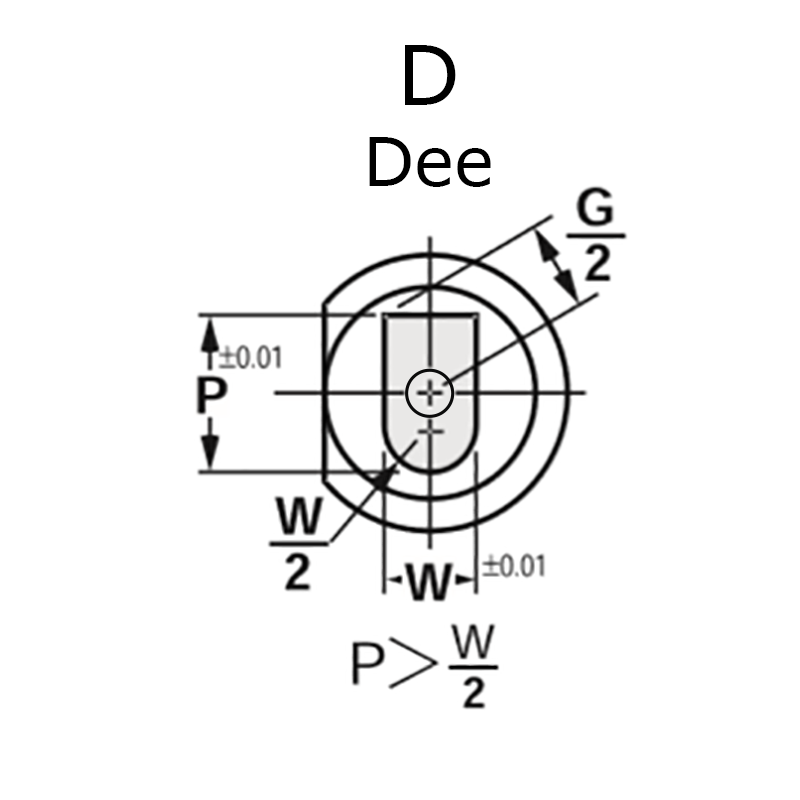

D - Dee
Product Description

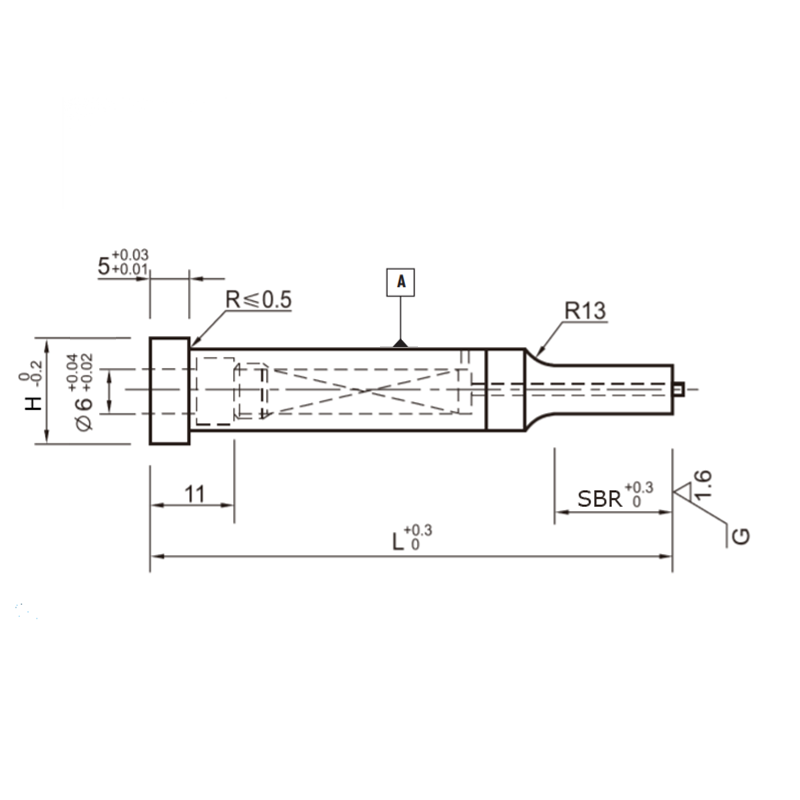

MCE Standard Centre Dowel Ejector Punch, Shaped
These shaped standard centre ejector dowel punches, MCE, are available in a wide range of sizes & materials. We can quote to drawings & special coatings are available on request.
Specification
Material D2 (HWS) (High carbon high chrome steel) Hardness HRC - Shaft: 60~62
Material M2 (HSS) (High speed steel) Hardness HRC - Shaft: 61~63
Material ASP (Vanadis 23) Hardness HRC - Shaft 63~65
Etching - For ease of reference, parts will be etched with part number and Berger logo unless otherwise specified in the special instruction box when ordering
On Request
Other materials including CPM and WC
Other sizes/dimensions
Coatings - available for M2 and ASP only
Please contact us with your special requests/drawings for quoting. We are happy to convert any punch and die supplier coding
