GN719.1
Domed Gear Knob, Plastic, Press On
Website -The website is being restored at the moment, and will be down from time to time, please contact sales@berger-tools.co.ukor phone *441732763377
Website -The website is being restored at the moment, and will be down from time to time, please contact sales@berger-tools.co.ukor phone *441732763377
Please select desired options to reveal part number, price and availability
Product Description

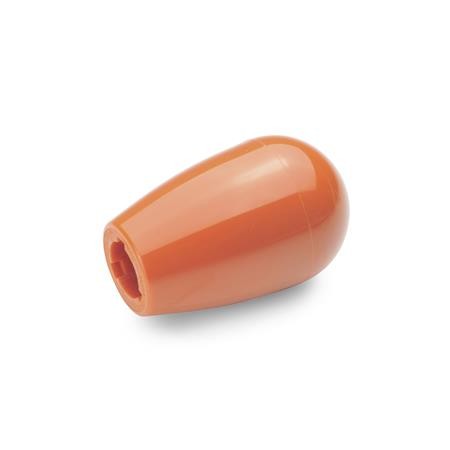

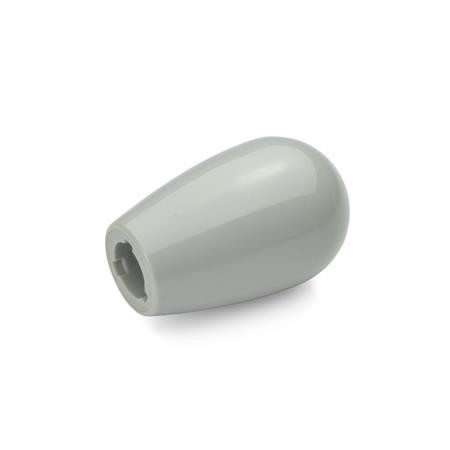

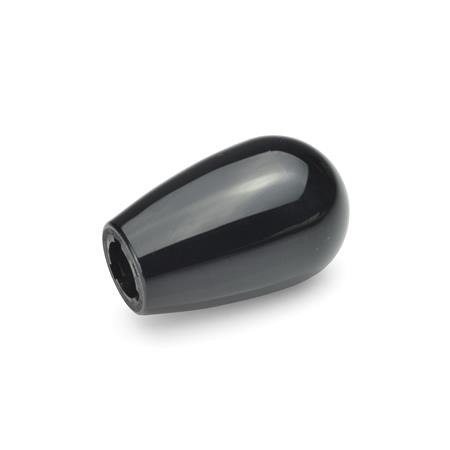

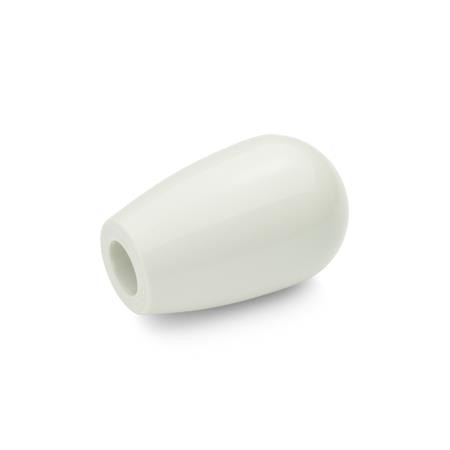

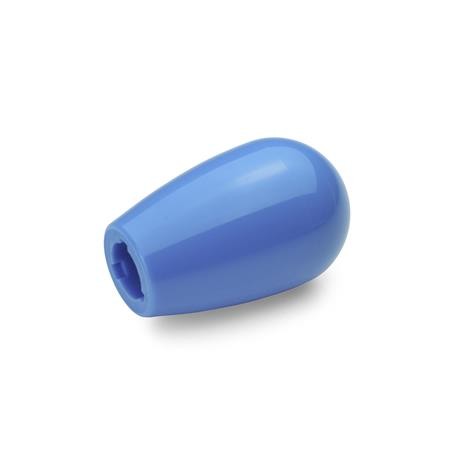

GN719.2 Plastic Push On or Threaded Domed Gear Knob
Domed knobs/handles are a commonplace component used for many applications and have a classic design which has stood the test of time. They are designed to fit snugly into the palm of the hand for comfortable usage.
The DIN 719.2 domed knob is often used instead of the DIN 319 ball knob on gear levers and shafts due to ergonomic reasons.
Domed gear knobs with bore (B) are mounted by driving them over the shaft with a plastic hammer. A threaded shaft is not required. The shaft end should preferably be slightly rounded or phased (30°).
Specification
Application Example

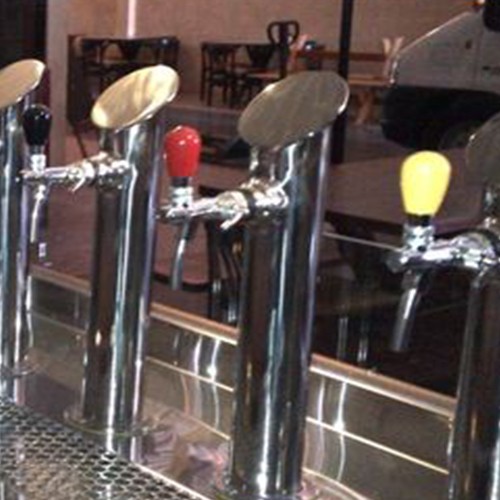

In the example, GN719.2 domed knobs are being used as handles on beer taps.
