KHF Short Stroke Diaphragm Pressure Cylinder

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

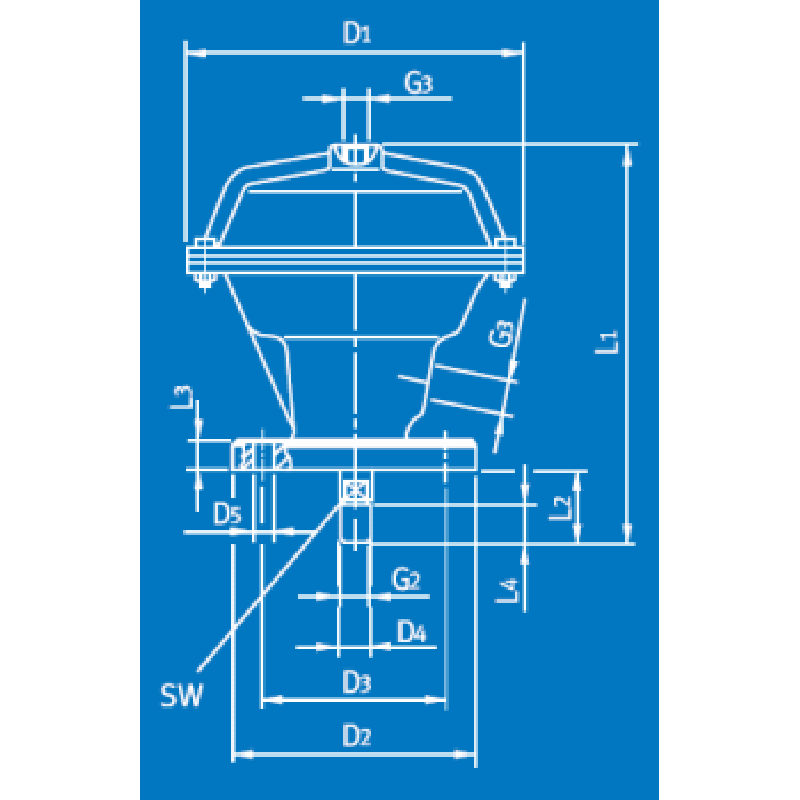

KHF Short Stroke Diaphragm Pressure Cylinder

Short-stroke device type KH F 500

Weight 2.6 kg

Single-/double-acting

Max. pressurisation = 10 bar

Max. stroke = 50 mm

Air consumption per stroke/6 bar = 0.6 2.5 l

Max. strokefrequency = 50/min. (at effective valve cross section of 50 mm²)

Ambient temperature = -20 °C +80 °C

Short-stroke device type KH F 1000

Weight 5.0 kg

Single-/double-acting

Max. pressurisation = 10 bar

Max. stroke = 60 mm

Air consumption per stroke/6 bar = 2 7.3 l

Max. strokefrequency = 25/min. (at effective valve cross section of 50 mm²)

Ambient temperature = -20 °C +80 °C

Short-stroke device type KH F 2000

Weight 10.6 kg

Single-/double-acting

Max. pressurisation = 10 bar

Max. stroke = 80 mm

Air consumption per stroke/6 bar = 4.5 20.3 l

Max. strokefrequency = 10/min. (at effective valve cross section of 50 mm²)

Ambient temperature = -20 °C +80 °C

Short-stroke device type KH F 4000

Weight 26.3 kg

Single-/double-acting

Max. pressurisation = 10 bar

Max. stroke = 80 mm

Air consumption per stroke/6 bar = 10.5 42 l

Max. strokefrequency = 12/min. (at effective valve cross section of 50 mm²)

Ambient temperature = -20 °C +80 °C
