GN953 (DD52R) Five Digit Direct Drive Digital Position Indicator
CloseNextPreviousGN953: Position Indicator - Installation: AN
Colour: OR - Orange, RAL 2004
![](/images/original/GN953-Position-indicators-digital-5-numbers-AN-on-the-chamfer-above-OR-orange-RAL-2004.jpg)
CloseNextPreviousGN953: Position Indicator - Installation: AN
Colour: GR - Grey, RAL 7035
![](/images/original/GN953-Position-indicators-digital-5-numbers-AN-on-the-chamfer-above-GR-gray-RAL-7035.jpg)
CloseNextPreviousGN953: Position Indicator - Installation: AR
Colour: GR - Grey, RAL 7035
![](/images/original/GN953-Position-indicators-digital-5-numbers-AR-on-the-chamfer-below-GR-gray-RAL-7035.jpg)
CloseNextPreviousGN953: Position Indicator - Installation: AR
Colour: OR - Orange, RAL 2004
![](/images/original/GN953-Position-indicators-digital-5-numbers-AR-on-the-chamfer-below-OR-orange-RAL-2004.jpg)

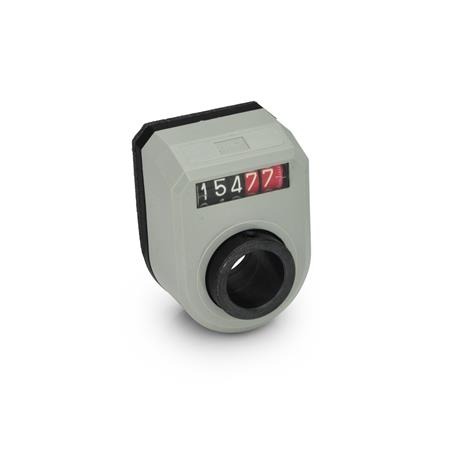

CloseNextPreviousGN953: Position Indicator - Installation: FN
Colour: GR - Grey, RAL 7035
![](/images/original/GN953-Position-indicators-digital-5-numbers-FN-in-the-front-above-GR-gray-RAL-7035.jpg)

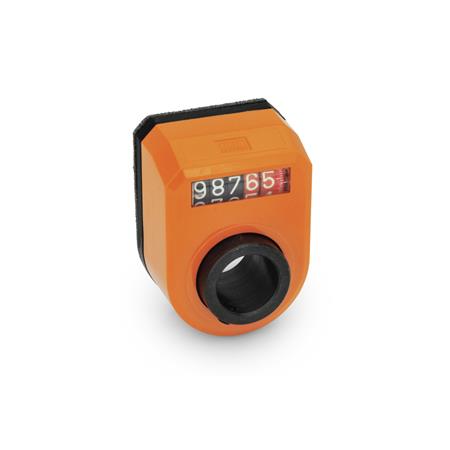

CloseNextPreviousGN953: Position Indicator - Installation: FN
Colour: OR - Orange, RAL 2004
![](/images/original/GN953-Position-indicators-digital-5-numbers-FN-in-the-front-above-OR-orange-RAL-2004.jpg)
CloseNextPreviousGN953: Position Indicator - Installation: FR
Colour: GR - Grey, RAL 7035
![](/images/original/GN953-Position-indicators-digital-5-numbers-FR-in-the-front-below-GR-gray-RAL-7035.jpg)
CloseNextPreviousGN953: Position Indicator - Installation: FR
Colour: OR - Orange, RAL 2004
![](/images/original/GN953-Position-indicators-digital-5-numbers-FR-in-the-front-below-OR-orange-RAL-2004.jpg)
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type L - Numbers ascending anti-clockwise
Type R - Numbers ascending clockwise
Installation AN - Counter above on the chamfer
Installation AR - Counter below on the chamfer
Installation FN - Counter above in front
Installation FR - Counter below in front
Product Description
GN953 (DD52R) Five Number Direct Drive Digital Position Indicator
These GN 953 position indicators have a direct coupled drive with a digital indication.
The two body parts are ultrasonically welded; therefore, the housing is particularly sturdy and compact. They are a cost-effective choice.
The foam rubber seal prevents vibration transmission to the counter mechanism and has sealing properties.
The read-out window is cleverly designed. The numbers are easily legible, and they are further enlarged by the magnifying effect of the safety sight glass.
The fractions are in red, and the last decimal is shown in ten-line segments. Five digits are shown.
Specification
- Housing - Plastic (Polyamide PA). Temperature resistant up to 80 °C, oil and solvent resistant.
- Orange RAL 2004 OR.
- Grey RAL 7035 GR.
- Numbers white - Number wheels for integers in black, for decimal numbers in red, with additional scale.
- Hollow shaft - Steel, blackened.
- Grub screw DIN916 - With internal hexagon and with a serrated point.
Accessories
Accessories include GN953.1 spacer plates, GN953.6 clamping plates and GN491.1 installation kits for use with linear actuators GN491 & GN492. When using installation kits, position indicators must be ordered so that the counter is aligned with the rising of the trapezoidal thread spindle.
On Request
- Version with Stainless Steel hollow shaft, versions with other counter indication.
