Please select desired options to reveal part number, price and availability
Options

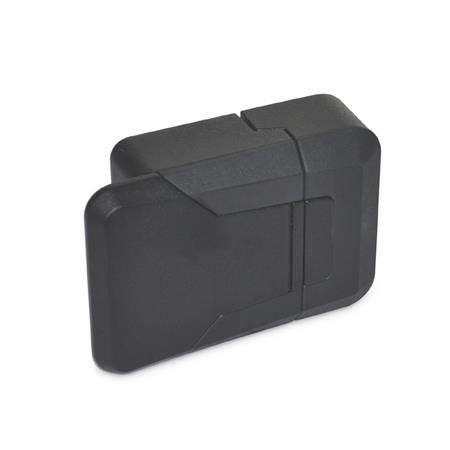

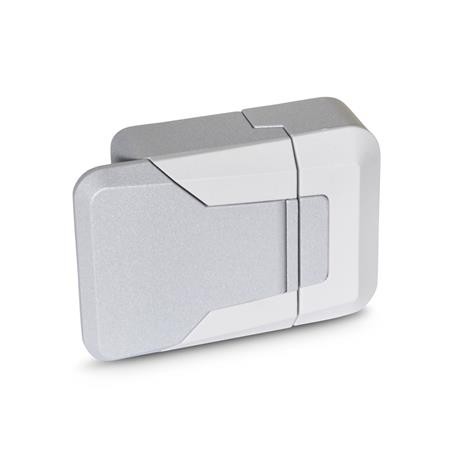

Type SL - Not Lockable
Type SCL - Lockable (same lock)

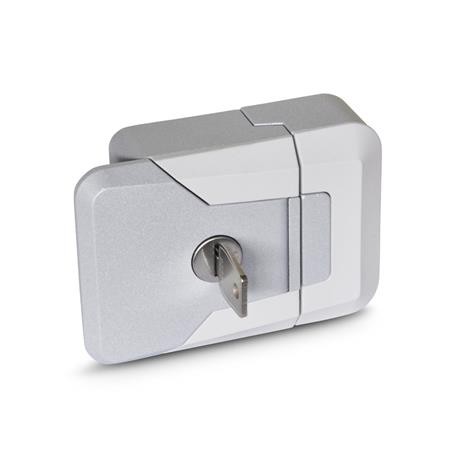

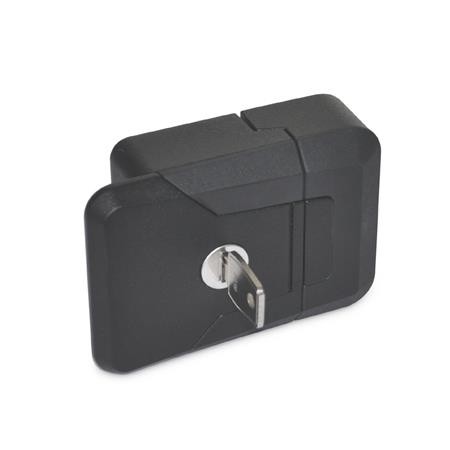

Type SUL - Lockable (different lock)
Product Description
GN936 Slam Latches
GN 936 slam latches enable doors and closures to be effortlessly closed. The latch engages automatically when the door is closed preventing the door from opening unintentionally. The slots enable the slam latch to be fitted to profile systems with different cross-sections.
The lockable versions of the slam latches (SCL and SUL types) are each supplied with 2 keys. The key can be removed in both end positions.
Specification
Housing - Zinc die casting, plastic coated - black, RAL 9005, textured finish SW, silver, RAL 9006, textured finish SR
Covers and latch - Plastic, black-gray for SW, light gray for SR
Lock mechanism - Zinc die casting
Key - Steel, nickel plated
Other parts - Steel, zinc plated, blue passivated
CAD Viewer
Technical Data
