GN927.4 Clamping Lever, Eccentrical Cam, Internal Thread

Choose your Part

Please select desired options to reveal part number, price and availability

Options

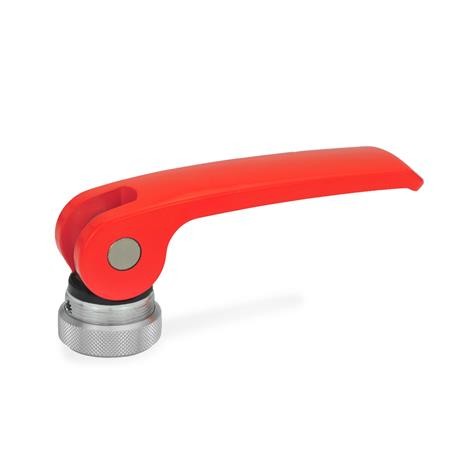

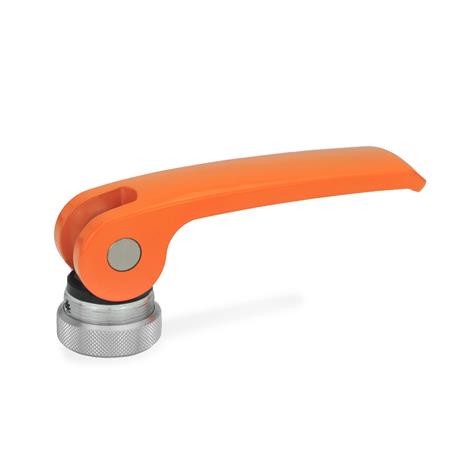

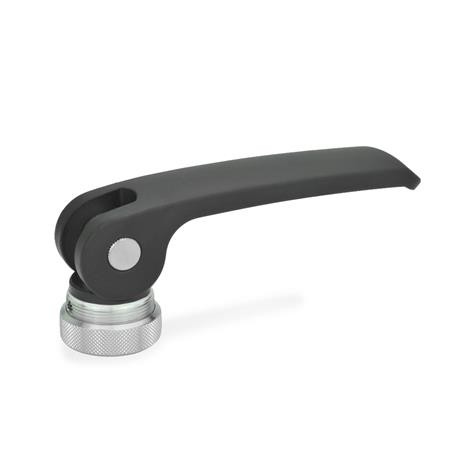

Type A - Plastic contact plate with setting nut.

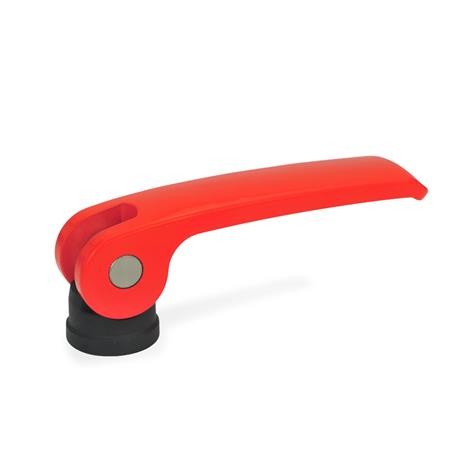

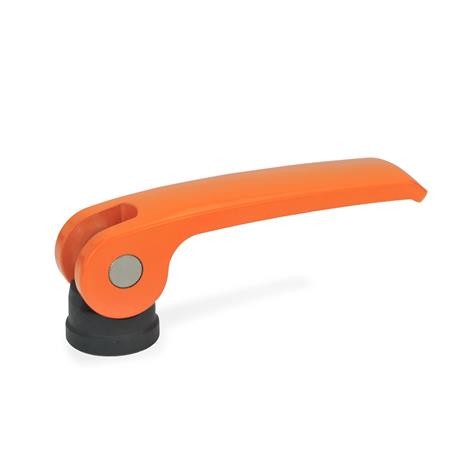

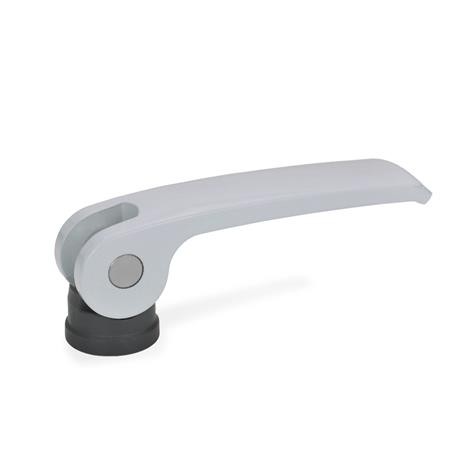

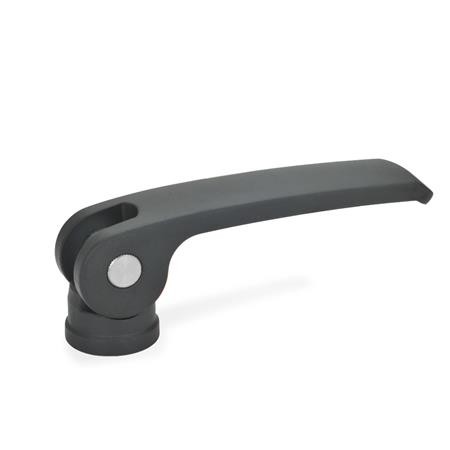

Type B -  Plastic contact plate without setting nut.

Product Description

GN927.4 Clamping Lever with Eccentrical Cam, Internal Thread.

These clamping levers, GN 927.4, are used for rapid clamping and releasing operations. Unlike clamping operation via a thread, these levers allow a torque-free clamping.

The lever has been designed to ensure that its movement cannot exceed the maximum clamping force.

These levers are fully assembled with no loose parts.

Type A has additional advantages in that the distance between the eccentrical cam and the contact surface is adjustable by means of a fine pitch thread. This allows the maximum clamping force to be set by a simple adjustment. In addition this also allows the choice of the preferred lever position in relation to the clamping lever pin.

With these clamping levers, clamping forces of up to 8 kN can be reached.

Specification

Lever - Zinc die casting, plastic-coated (abrasion proof epoxy resin).

Colours available - Black, RAL 9005 B. Orange, RAL 2004 O. Red, RAL 3000 R. Silver, RAL 9006 S.

Axis, lag nut, setting nut - Stainless Steel NI, AISI 303

Contact plate Type A - Technopolymer (Polyactetal POM), glass-fibre reinforced.

Contact plate Type B - Technopolymer (Polyamide PA), glass-fibre reinforced.
