Type A - Plastic contact plate with setting nut.

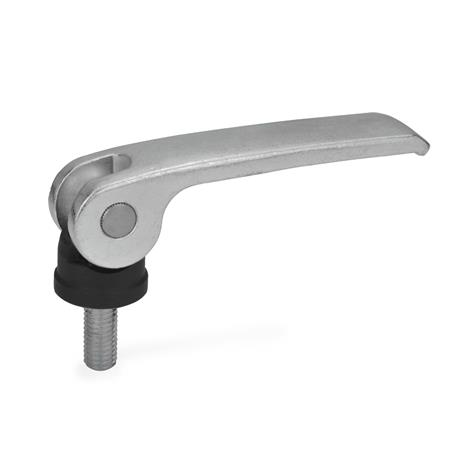

Type B - Plastic contact plate without setting nut.
Product Description
GN927.3 Clamping Lever, Eccentrical Cam, Threaded Stud.
These clamping levers, GN 927.3, are used for rapid clamping and releasing. Unlike a clamping operation via a thread, these levers allow torque-free clamping.
The lever has been designed to ensure that its movement cannot exceed the maximum clamping force.
There are no loose components since they are all assembled and mounted in their correct order.
Type A has additional benefits in that the distance between the lever cam and the clamping surface is adjustable via a fine pitch thread, allowing the clamping position to be set easily with maximum clamping force. Also, the position of the lever relative to the clamping axis can be determined.
With these clamping levers clamping forces of up to 8 kN can be reached.
Specification
Lever - Steel ST, zinc plated, blue passivated.
Axis, lag screw, setting screw - Steel ST, zinc plated, blue passivated
Contact plate - Type A Technopolymer (Polyacetal POM), glass-fibre reinforced. Type B Technopolymer (Polyamide PA), glass-fibre reinforced.
