GN900
Adjustable Slide Unit, for Positioning Equipment, Aluminium
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Please select desired options to reveal part number, price and availability
Options
Type A - Without retaining bores

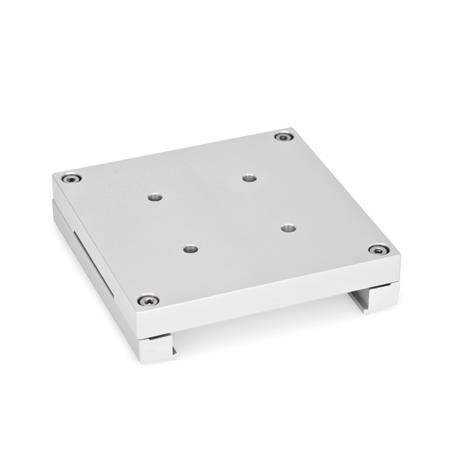

Type B - With retaining bores for rotary tables
Product Description
GN900.4 Mounting Plate for Adjustable Slide Units GN 900
Mounting plates GN 900.4 type A are used for installing fixtures on the operators side. Type B is used for installing a rotary table GN900.6.
The mounting plate can be simply clamped on to the slide and no additional drilled holes are required.
The small fixing plates serves as an additional fine adjustment of the mounting plate with the adjustable slide unit.
All parts required to make up a set are included.
Specification
Aluminium AL, anodized, natural colour.
Socket head cap screw DIN912 - Stainless Steel NI
