GN880.1
Connector Piece for Oil Drain Valves GN880
Please select desired options to reveal part number, price and availability
Options
Kit Type A - With Straight Connector
Kit Type B - With 45° Connector

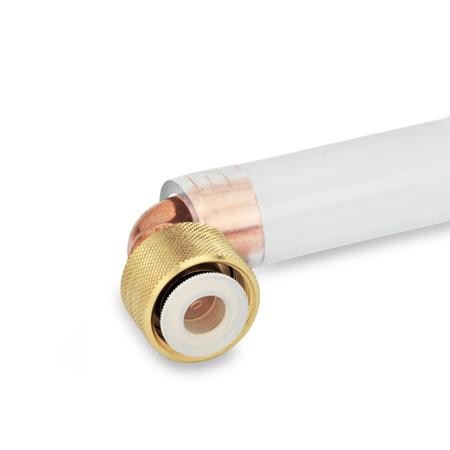

Kit Type C - With 90° Connector
Product Description
GN880 Oil Drain Valve Kit with Straight or Angled Connector
This kit, GN 880, brings together our oil drain valve GN880 and connector GN880.1 not only making it easier to order, but also giving a discounted price against buying the two items separately.

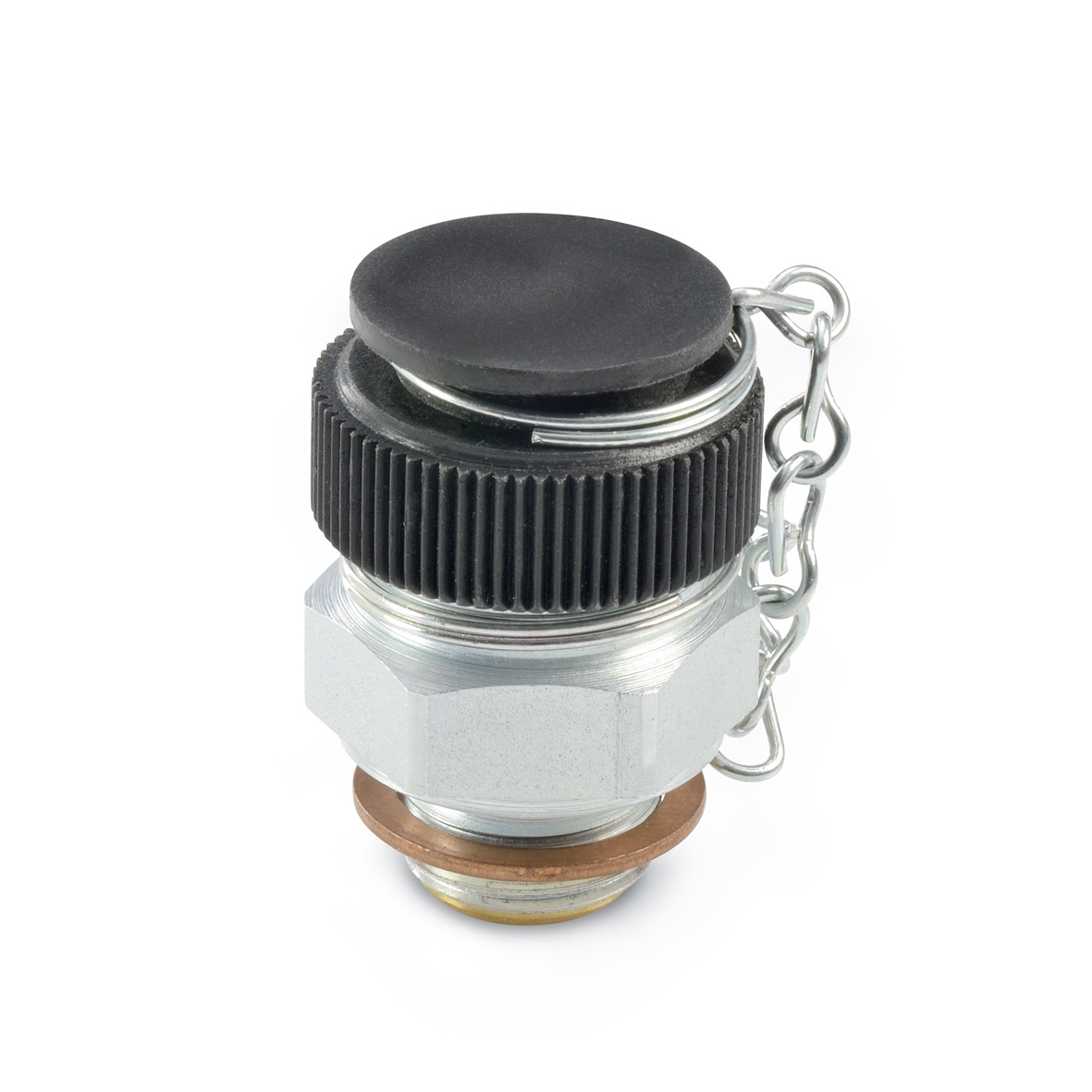

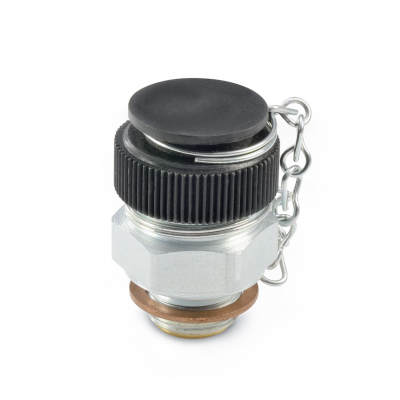

Oil drain valves may be used for draining non-pressurised oil, and also for vacuum drainage. Once installed, the valve repeatedly allows for easy and clean drainage of oil tanks and sumps, and are ideal in situations where oil changes need to be carried out on a frequent basis.
Other features are:
- easy and safe handling
- optimum flow rate
- high pressure resistance (up to 100 bar)
- high temperature resistance (-30 oC to +120 oC, short period up to 180 oC)
- 100 % seal-tight tested
A connector piece of your choice is also included in this kit.

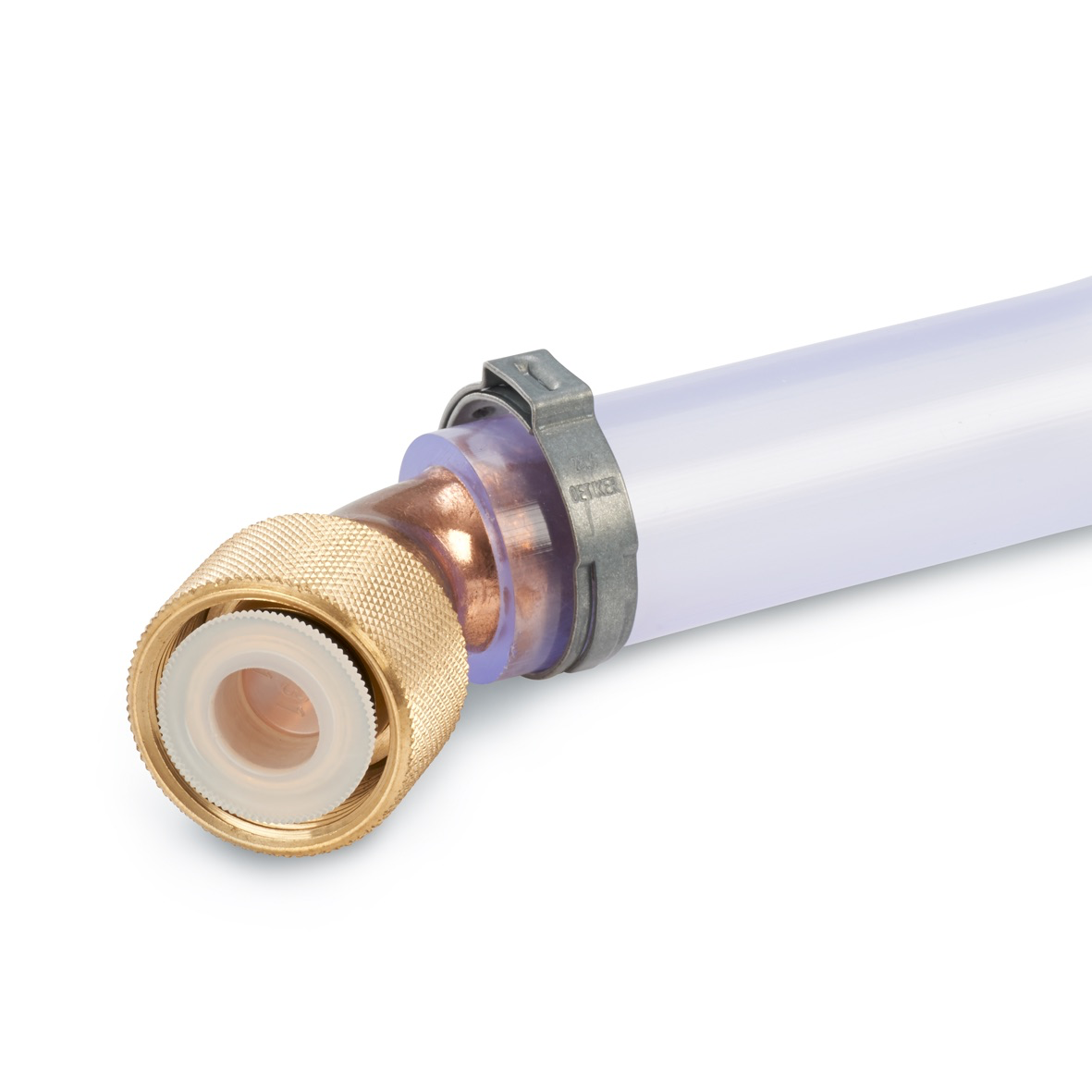

A hose is easily attached to the connector. Screwing on the connector piece will activate the valve plate of the oil drain valve, allowing the oil to flow through the hose into a container.
The plug prevents remaining oil from dripping out after discharging.
The plugs and the hose clip (only type B and C) are included.
The flow volume (l/min.) depends on the viscosity of the medium, the filling quantity and the temperature. Guidance values are available on request.
Specification
Valve:

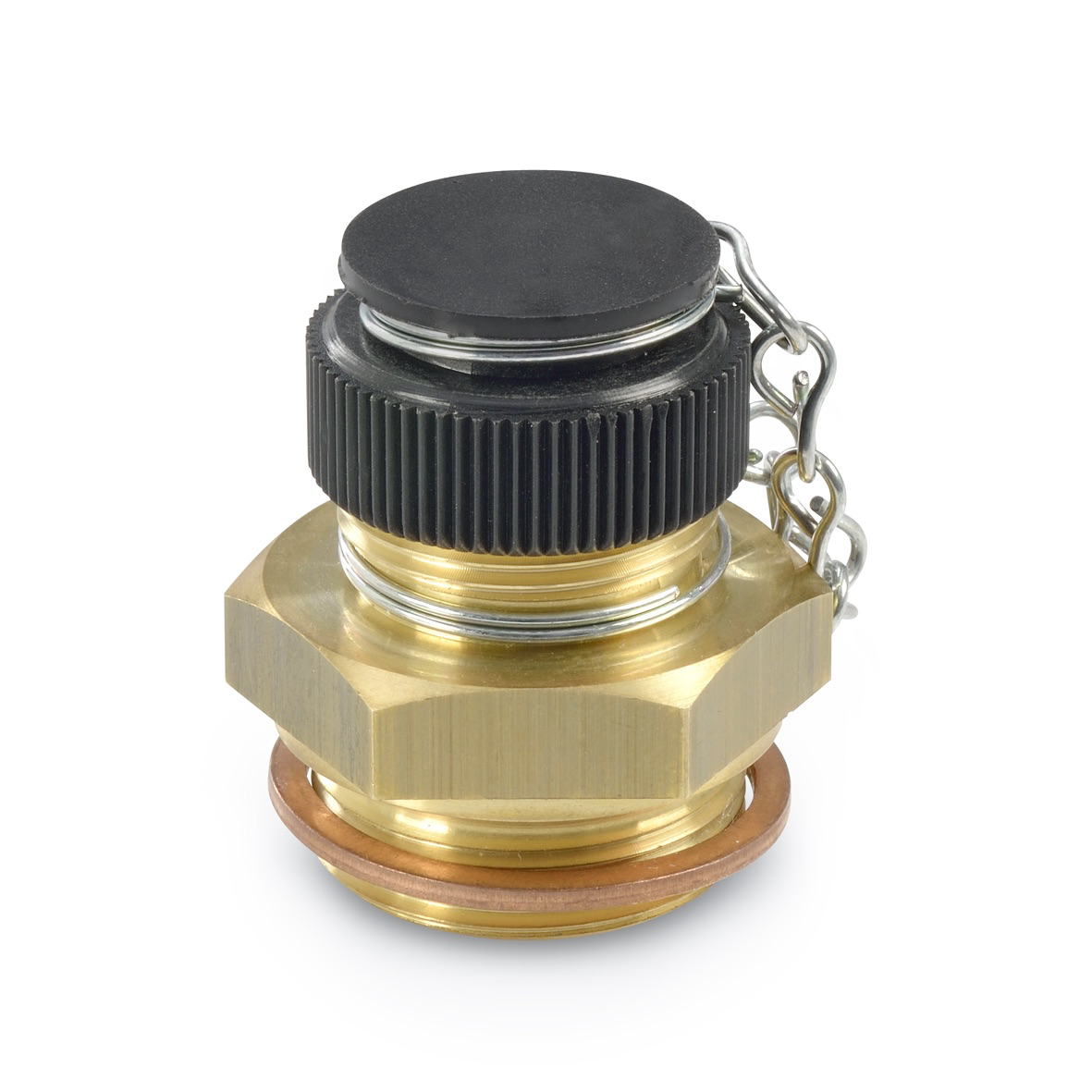

Valve body - Steel, zinc plated, blue passivated ST. Brass MS
Valve plate - Brass, O-ring rubber FPM (Viton®)
Sealing disc DIN 7603 A - Copper.
Protective cap - Plastic (Polyamid PA)
Chain - Steel, zinc plated, blue passivated.
Eye - brass.
Connector:
Connecting nut with hose liner - Brass
O-Ring - Rubber NBR (Perbunan)
Hose clip - Steel, zinc plated
Plug - Plastic, LD-PE
Connectors with clear hose, GN880.1 are also available.
