Please select desired options to reveal part number, price and availability
Type
A - Clamping arm with slotted hole and 2 flanged washers

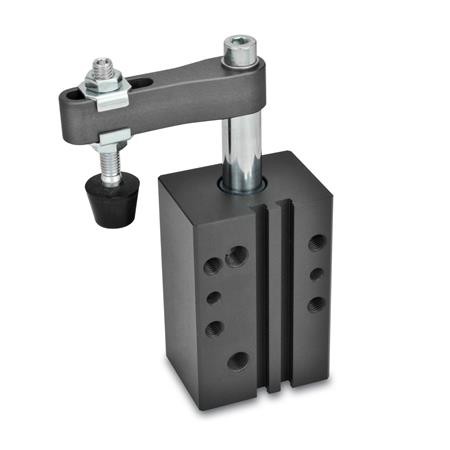

AC - Clamping arm with slotted hole, 2 flanged washers and GN708.1 Spindle Assembly

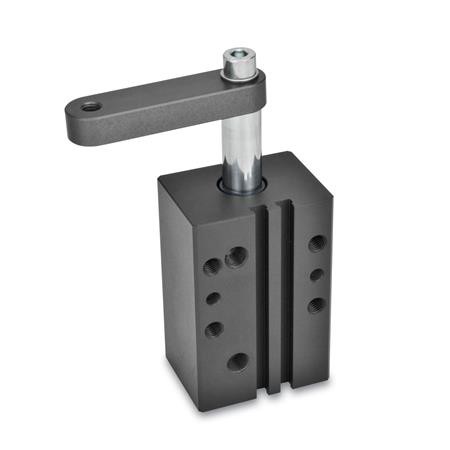

B - Clamping arm with threaded hole

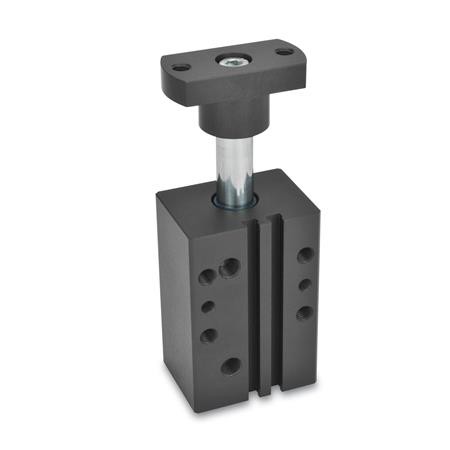

F - Adapter flange

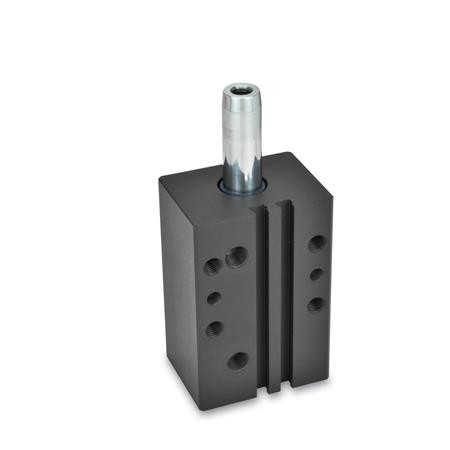

N - Without clamping arm
Coding
L - Swiveling left
R - Swiveling right
Product Description
GN875 Swing Clamps, Pneumatic, in Block Version
Swing clamps GN 875 are used when the clamping point for inserting and removing the workpiece must be freely accessible on top.
During the clamping action, the arm is first swiveled by 90° and lowered, followed by the linear tensioning motion. The workpiece clamping must take place within the clamping stroke.
The angle orientation of the tensioning arm can be set arbitrarily during mounting on the swing clamp. When tightening the screw, the piston rod must not experience any torque. The clamping arm must therefore be held to prevent twisting.
The swing clamps are equipped with a magnet ring piston and are therefore pre-fitted for end stop detection via sensor.
Specification
Aluminum - hard anodized, wear-resistant surface
Double-action air cylinder - max. pressure 6 bar
Socket cap screw DIN 912 - Steel, zinc plated, blue passivated
Washer ISO 7092 - Steel, zinc plated, blue passivated
Spindle assembly GN 708.1, type A - Steel, zinc plated, Rubber tip 85 Shore A
Accessories
Clamping arms GN875.2
Clamping arms GN875.3
Adapter flanges GN875.4
Sensor GN3380
Toggle clamp spindle assemblies GN708.1
CAD Viewer
Technical Data
