GN865
Pneumatic Power Clamp, Misati, Vertical Arm *last few*
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Please select desired options to reveal part number, price and availability
Options
Type E - For one clamping bolt

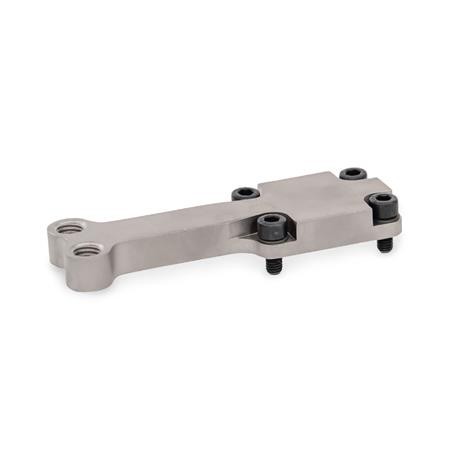

Type Z - For two clamping bolts
Product Description
GN869.1 Static Holder, Steel, Chemically Nickel Plated, for Clamping Bolts
These static holders, GN 869.1, have been designed for use with power clamps GN865.
Static holders for two clamping bolts (Type Z) are preferably used in such applications where absolutely rigid clamping of a sheet metal component is essential. For the same purpose ball point screws with serrated ball pads, GN605 are ideally suited.
Cap screws and centering guide bushing accessories are included.
Specification
Steel C 45 Chemically nickel plated NC
Socket cap screws DIN 912
Centering guide bushings - Steel, blackened
