Please select desired options to reveal part number, price and availability
Options
Type E - For one clamping bolt

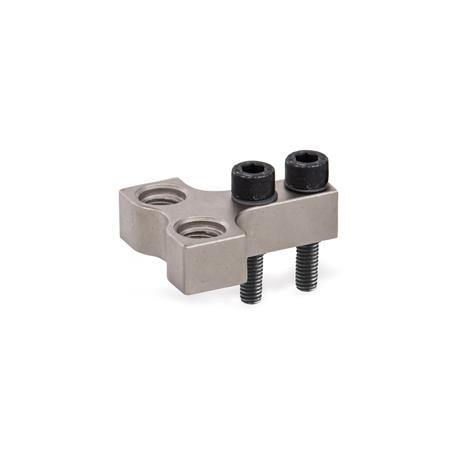

Type Z - For two clamping bolts
Product Description
GN867 Holder, Steel, Nickel Plated for Clamping Bolts, with Cap Screw
These holders, GN 867, single post coupling / Y-coupling accessories are suitable for use on clamping arms of power clamps GN864 / GN865 and GN866.
Holders for two clamping bolts (Type Z) are prefered in such applications where absolutely rigid clamping of a sheet metal component is essential.
For the same purpose ball point screws with serrated ball pads GN605 are ideally suited.
Cap screws and centering guide bushing accessories are included.
Specification
Steel C 45 - Chemically nickel plated NC
Socket cap screws DIN 912 - Centering guide bushings, Steel, blackened
