GN867
Holder, Steel, Nickel Plated, for Clamping Bolts, with Cap Screw
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Please select desired options to reveal part number, price and availability
Options
Type E - For one clamping bolt

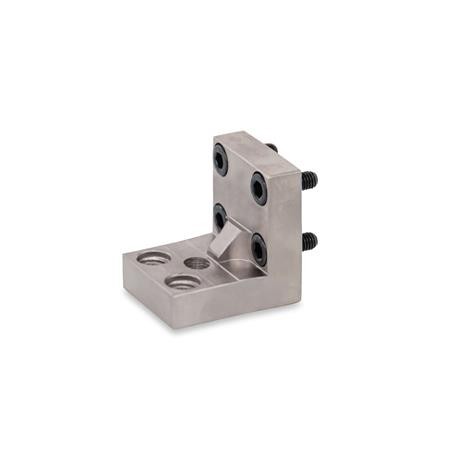

Type Z - For two clamping bolts
Product Description
GN867.1 Static Holder, Steel, for Clamping Bolts
Static holders, GN 867.1, have been designed for use with power clamps GN864.
Static holders with two clamping bolts (Type Z) are preferably used for rigid clamping of sheet metal components. For the same purpose ball point screws GN605 with serrated ball pads are ideally suited.
Socket cap screws and centering guide bushing accessories are included.
Specification
Steel C 45 - Chemically nickel plated NC
Socket cap screw DIN912 & centring guide bushes - steel, blackened
