GN951.2
Square U-Bolt for Latch Clamps GN852 Steel
Website -The website is being restored at the moment, and will be down from time to time, please contact sales@berger-tools.co.ukor phone *441732763377
Website -The website is being restored at the moment, and will be down from time to time, please contact sales@berger-tools.co.ukor phone *441732763377
Please select desired options to reveal part number, price and availability
Options
Type T2 - With fixing holes, with pulling latch, with latch bracket.

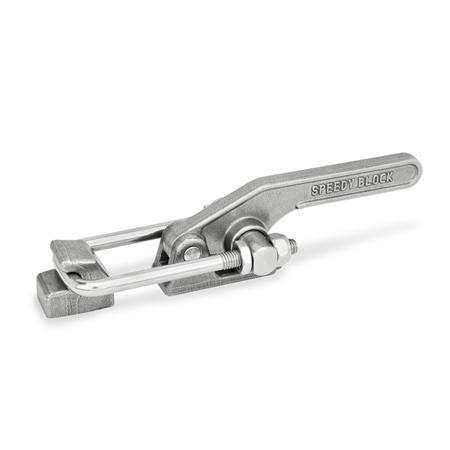

Type T2S - For welding, with pulling latch, with latch bracket.

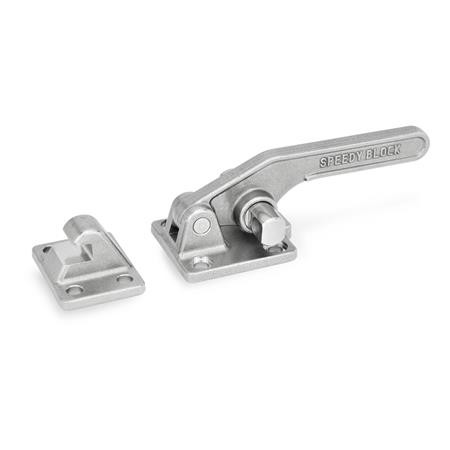

Type T - With fixing holes, without pulling latch, with latch bracket.

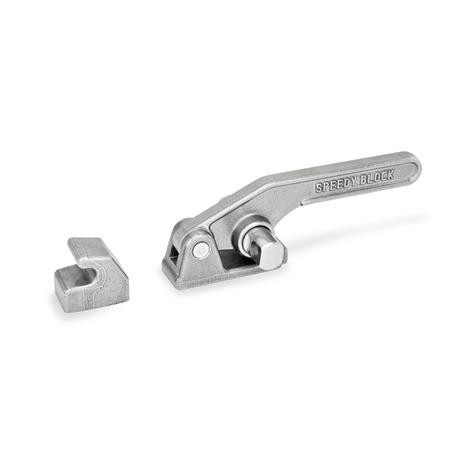

Type TS - For welding, without pulling latch, with latch bracket.
Product Description
GN852 Latch Clamp, Stainless Steel, Heavy Duty, Pulling Latch
These heavy duty latch clamps, GN 852, are used for very high holding forces as may be encountered in the field of plastic high pressure mould forming.
The stroke of the U-bolt latch can be adjusted within its range.
In addition to the standard lengths of the U-bolt latches, a variety of other lengths are also available under the GN951.2 series.
Specification
Body/ catch / clamping lever / U-bolt latch - Stainless Steel AISI 304 NI, forged.
Other parts - Stainless Steel AISI 303 NI
All moving parts lubricated with special grease.
