Please select desired options to reveal part number, price and availability
Options
Type T3 - With pulling latch, with latch bracket.

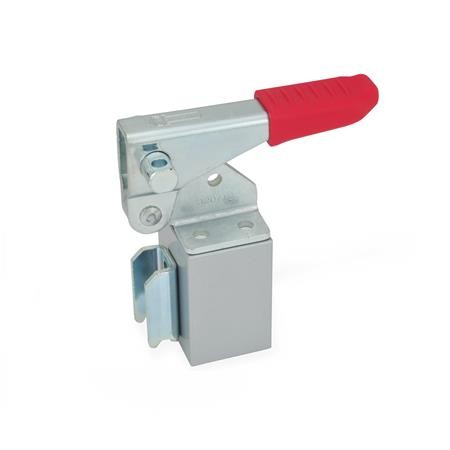

Type T - Without pulling latch, with latch bracket.
Product Description
GN851.1 Latch Clamp, Steel, Zinc Plated, Pulling Action Latch
The stroke of the U-bolt latch of these latch clamps, GN 851.1, can be adjusted within its range.
In the clamped position the U-bolt latch with clamping arm is perpendicular to the clamping arm and the plane of the operating handle.
In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN951.1 series.
Specification
Steel - Case hardening steel ST C10, zinc plated, blue passivated.
U-bolt latch - Steel ST 37, zinc plated, blue passivated.
All moving parts lubricated with special grease.
Handle with plastic sleeve - Red, oil resistant.
CAD Viewer
Technical Data
