Please select desired options to reveal part number, price and availability
Options
Type B - without rest position
Type C - with rest position
d2* available as standard or fine pitch - standard pitch will be supplied unless specified
Product Description

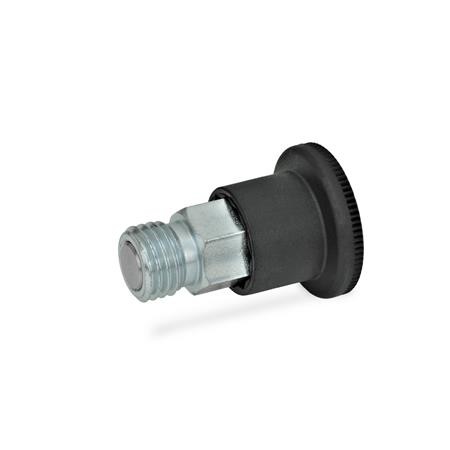

GN822.6 Mini Indexing Plunger, Covered Indexing Mechanism
These mini indexing plungers are notable for their small dimensions.
Indexing plungers are used in a wide range of applications for locating, positioning, indexing and positive locking and this mini version is particularly suited for use in thin walled parts and assemblies such as electrical enclosures.
Based on the same principles as our GN822 mini indexing plungers, this model combines their clever construction design with a complete series of all current sizes of bolts and threads. They provide a reasonably priced alternative to the GN607 / GN607.1 indexing plungers of the appropriate sizes.
To mount, first turn the mini indexing plunger in with the knurled button. Pulling the indexing pin will release the hexagon nut which can then be tightened with an open-end spanner.
In Type C, the button can be turned by 30 after retracting the indexing pin, holding it in the retraced position using the indexing lock and allowing the plunger pin to be retracted for an extended period of time. In the rest position, this mechanism is completely concealed by the knob.
Specifications
Socket - Steel, zinc plated, blue passivated ZD.
Plunger - Stainless Steel NI AISI 303
Spring - Stainless Steel NI AISI 301
Knob - Plastic (Polyamide PA), black, matt, not removable.
CAD Viewer
Technical Data
