Type N - forked clamping arm

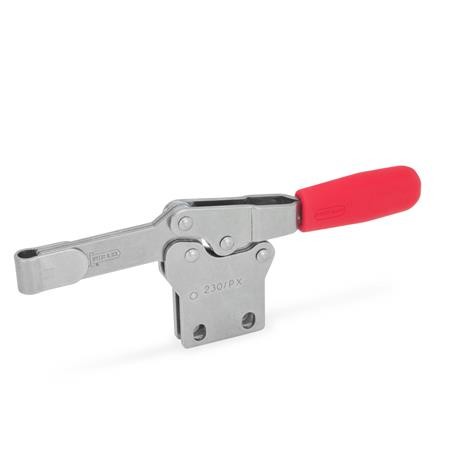

Type P - solid clamping arm

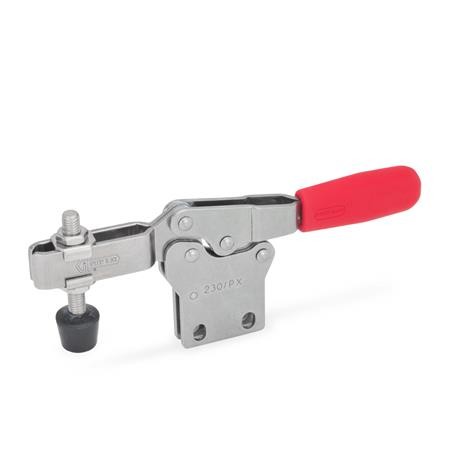

Type NC - U-bar version, with two flanged washers and GN708.1 Spindle Assembly
Product Description
GN820.1 Horizontal Clamp, Stainless Steel, Vertical Base
These GN 820.1 horizontal acting toggle clamps work according to the toggle principle: the lever and clamping bar move in the opposite direction.
They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. A special feature of this clamp is its low profile in clamping position. They are designed in such a way to avoid the operator's fingers being caught between the retracting clamping arm and the operating handle (safety distance).
The clamping arm is guided on both sides during the forward movement to prevent being affected by possible side thrusts.
Being made of stainless steel, these clamps are suitable for use in a clean room environment, such as found in the food and pharmaceutical industries and their associated processing and packaging.
Horizontal acting toggle clamps in the U bar version with two flanged washers (Type N) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type NC (GN708.1).
Type P version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN809 clamp mounts to hold the work piece in place.
Stepped side washers and clamping bolt retainers are included.
Compatible with GN708.1 clamping bolt, with rubber tip.
Specification
Stainless Steel NI AISI 304
All moving parts lubricated with special grease
Solid moulded plastic handle sleeve - red, oil resistant
Also available in steel
