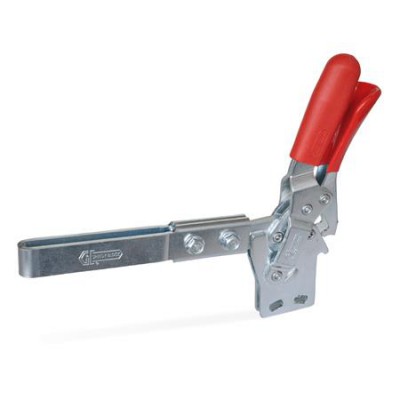

Type VL - Clamping arm extended, with slotted hole and with two flanged washers
Type VLC - Clamping arm extended, with slotted hole, two flanged washers and clamping screw GN708.1
Product Description
GN810.4 Toggle Clamps, Vertical Lever, Safety Hook, Vertical Mounting
GN 810.4 toggle clamps are latched in both end positions. In the clamped position, this prevents unintentional opening or opening caused by vibrations; and in the open position, it prevents self-closing of the toggle clamp, such as due to an extended clamping arm. The latching can be disabled with a one handed movement for opening / closing.
They work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.
Toggle clamps in the U-bar version with two flanged washers (type VL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type VLC.
Specification
Case-hardened steel C10, zinc plated, blue passivated
Bearing pins - tempered
Bearing rivets - case-hardened
All moving parts lubricated with special grease
Hand grip - High quality, oil resistant, red plastic
Clamping screw GN 708.1, type A, steel, zinc plated, rubber tip 85 Shore A
Accessory
Clamping screws
Holders for clamping screws GN801
Clamping arm extenders GN801.1
Clamping arm extenders GN801.2
