Please select desired options to reveal part number, price and availability
Options
Inner leaf type
Type A - Tangential fastening with cylindrical recess
Type B - Tangential fastening with tapped bushings
Type C - Radial fastening with cylindrical recess
Type D - Radial fastening with tapped bushings
Outer leaf type
Type A - Tangential fastening with cylindrical recess
Type B - Tangential fastening with tapped bushings
Type C - Radial fastening with cylindrical recess
Type D - Radial fastening with tapped bushings
Product description

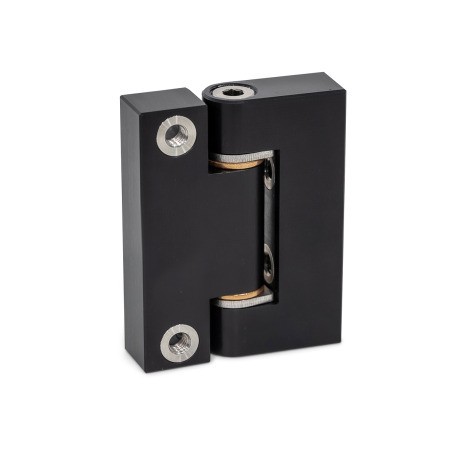

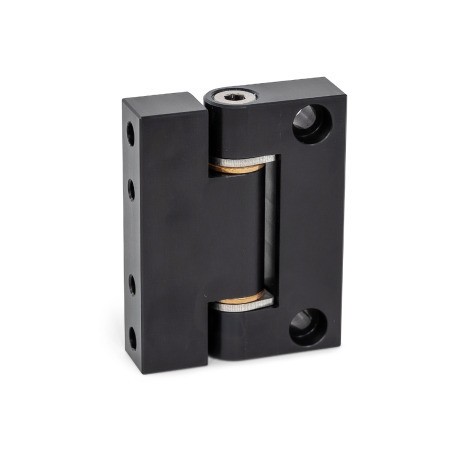

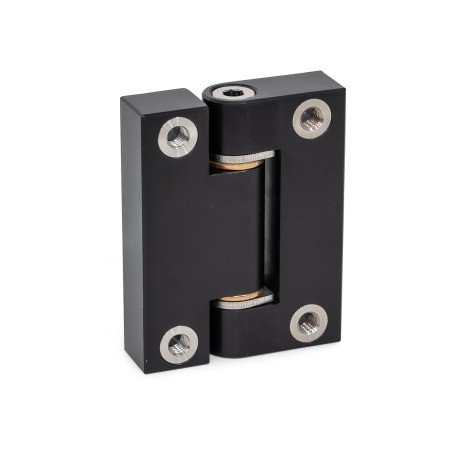

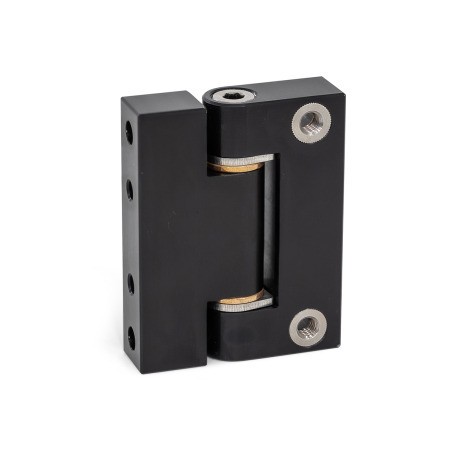

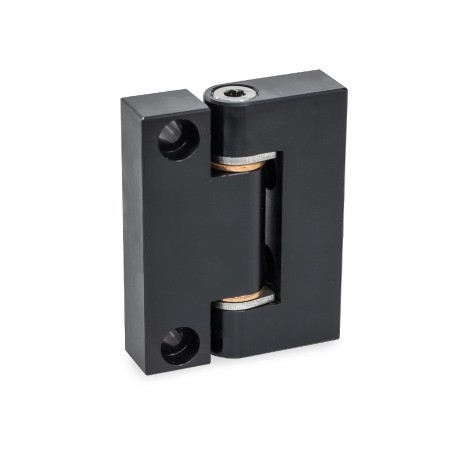

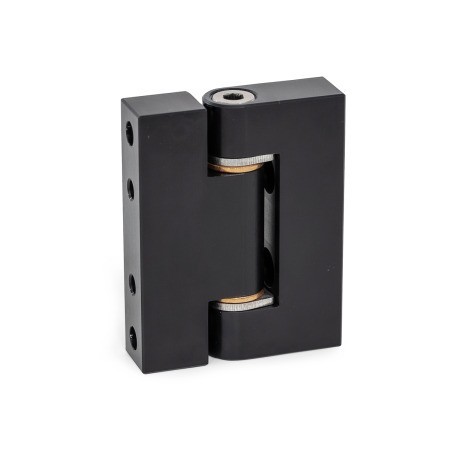

GN7580 Precision Hinges, Aluminium Hinge Leaf, Bronze Bearing Bush
Precision hinges GN 7580 supply a pivoting movement to elements such as swing arms, spacers and clamping plates. The wear-resistant precision hinges feature low radial play and adjustable axial play.
A variety of installation situations can be covered by combining the various inner and outer leaves. Precise positioning can be achieved with dowel pins in the fit bores of the screw-on surfaces.
The bearing bushings and the tapped bushings of types B and D are supplied preassembled in the hinge leaves. The hinge pin, thrust washers and adjusting screws are packaged separately.
Specification
CAD Viewer
Technical Data
