GN2426
Roller for Rails GN2422, Steel, Hardened
Please select desired options to reveal part number, price and availability
Options

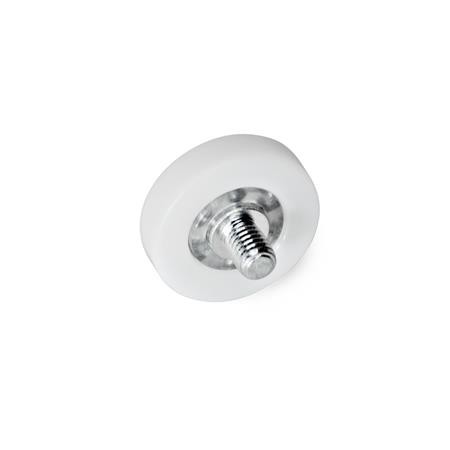

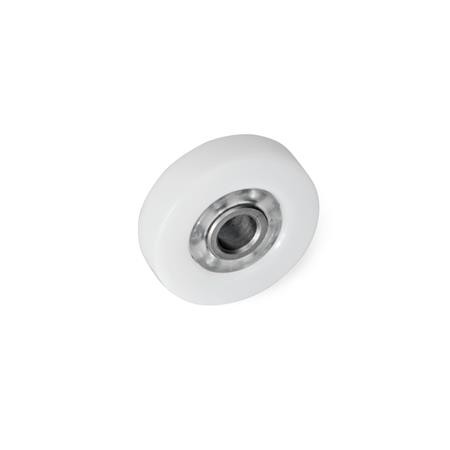

Type ZL - Cylindrical

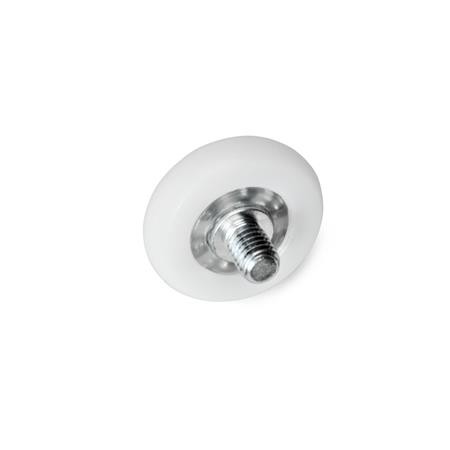

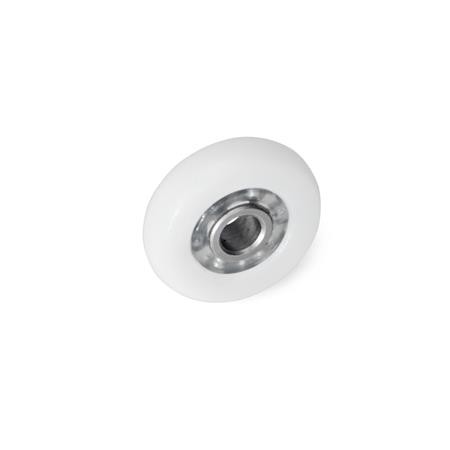

Type KV - Convex

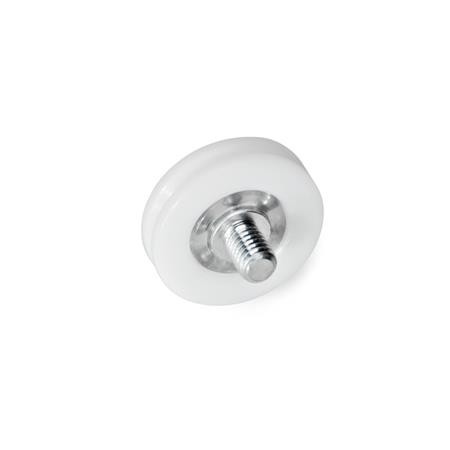

Type KF - Wedge-shaped

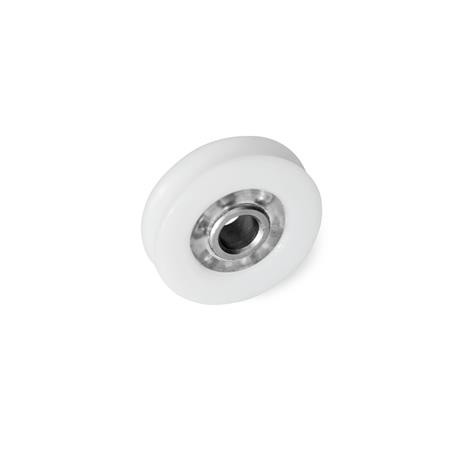

Type KK - Concave

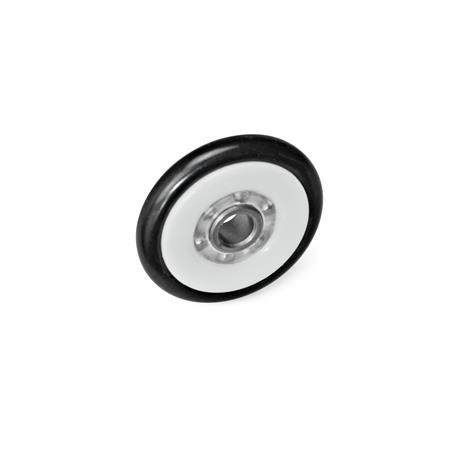

Type KR - Circular (O-ring)
Product Description

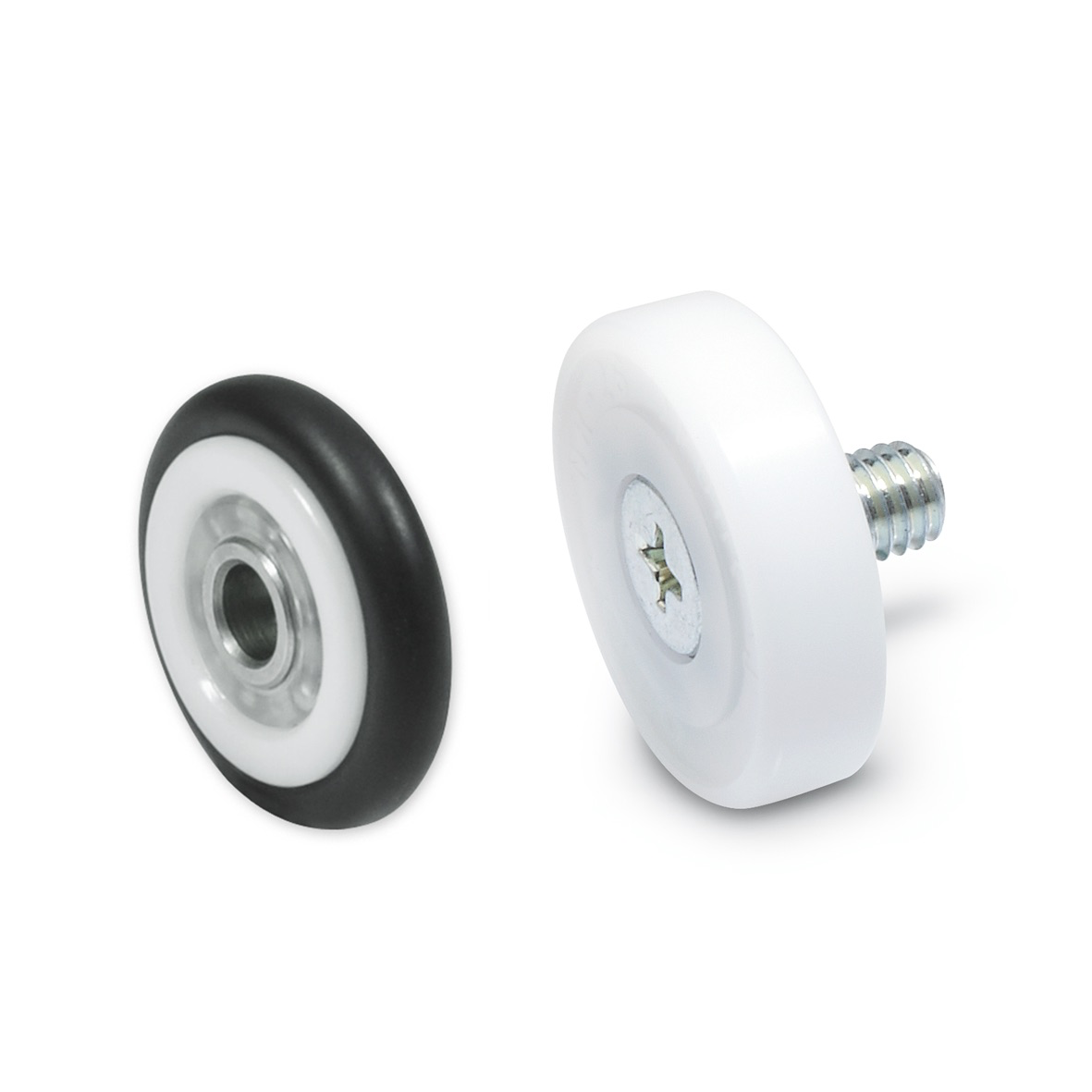

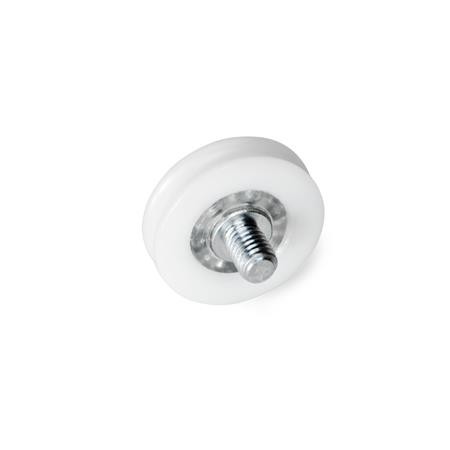

GN753 Guide Rollers, Steel or Plastic
These guide rollers are suitable for moving or guiding smaller loads. They are commonly used in drive engineering.
With the radial load bearing capacity given in the table, the guide rollers reach a minimum run time of 1 million revolutions. In general, the guide rollers should not be used under axial load.
Specification
Outer ring - Plastic (Polyacetal POM), working temperature: 0° - 40 °C
Inner ring / balls - Steel ST, blank
Threaded stud - Steel ST, zinc plated
O-Ring - Rubber, NBR (Perbunan), 70 Shore A
On Request
Guide rollers with rivet spigot.
