Please select desired options to reveal part number, price and availability
Options

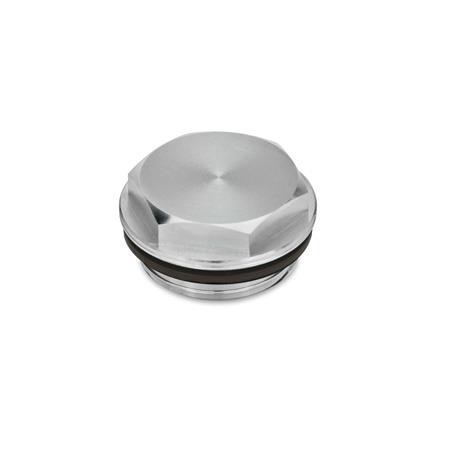

Type OS - neutral coding

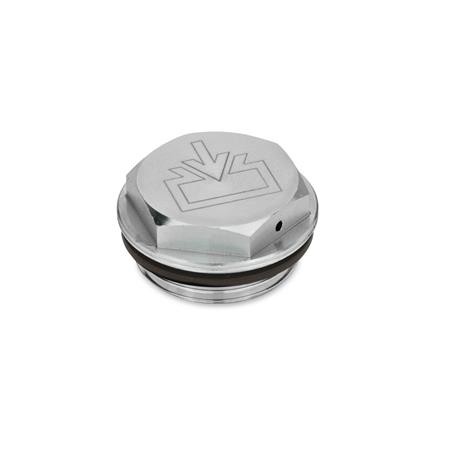

Type ES - with DIN refill symbol

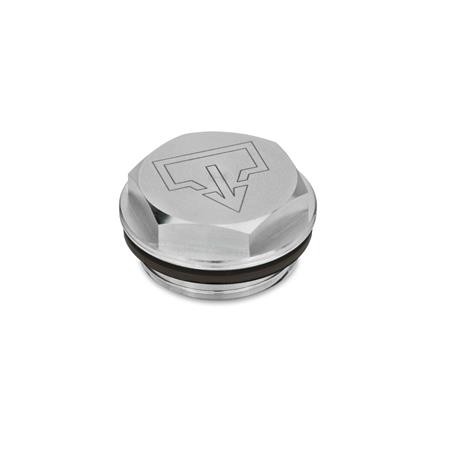

Type AS - with DIN drain symbol
Identification 1 - without vent drilling

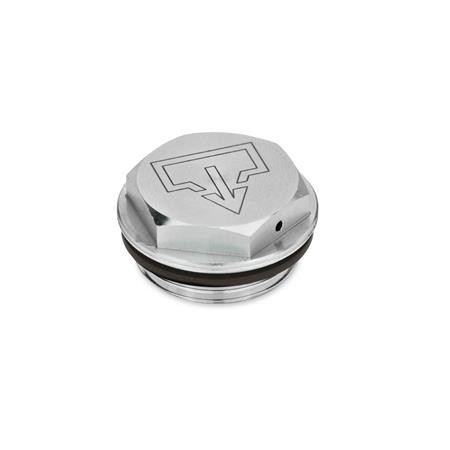

Identification 2 - with vent drilling
Product Description
GN742 Threaded Plug, With Optional DIN Drain / Fill Symbol, Aluminium, Blank
Threaded plugs GN 742 are fitted with outside diameter d1 to suit screw holes with BSP threads to DIN3852.
The seal is bedded into a undercut groove which prevents it from dropping out and at the same time stops it from being extruded when tightening the cap. The seal can therefore be kept fairly soft which improves sealing on uneven surfaces.
Specification
Aluminium AL, fine turned.
Type OS, ES, AS - blank.
Symbols - laser engraved
Temperature resistant up to 180 °C
Sealing ring rubber FPM (Viton®), identification by not black finish of seal.
On Request
With dipstick
