Product Description

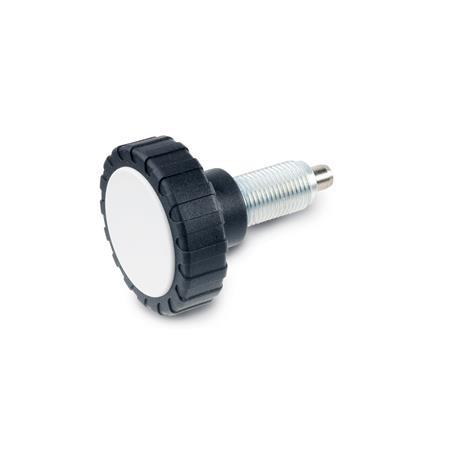

GN7336.7 Clamping Knob, with Indexing Plunger
Clamping knobs with indexing plunger GN 7336.7 are used for positioning, securing and clamping adjusting elements at the same time.
The axial movement of the handle (pulling) pulls the indexing plunger from the engaged position against the spring force, with the star knob at the same time remaining connected with form-lock to the clamping screw via a hexagonal element, allowing both clamping and releasing.
Specification
Knurled knob GN7336 - Plastic PA, black, matt
Cover cap - Plastic PA, light grey
Fixing thread - Steel ST, zinc plated, blue passivated
Plunger Pin - Stainless Steel NI, AISI 303
