GN7332 Gripping Trays, Stainless Steel, Screw In Type

Choose your Part

Please select desired options to reveal part number, price and availability

Options

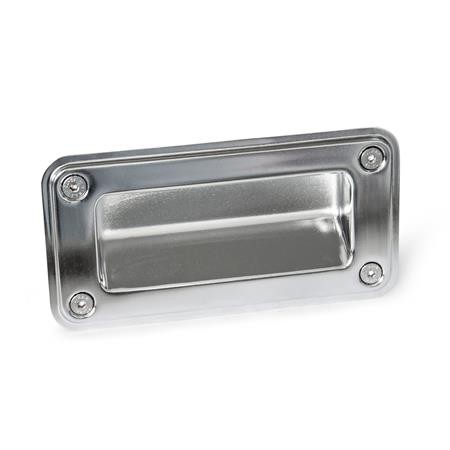

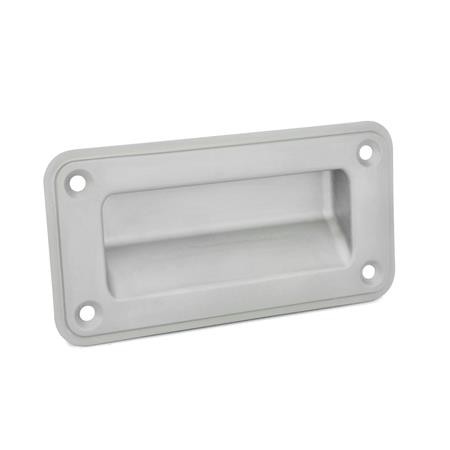

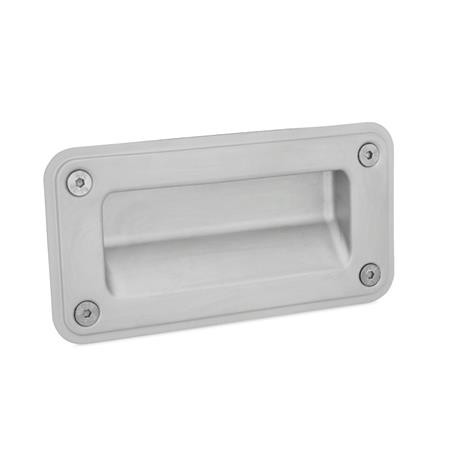

Type A - Mounting from the operator's side

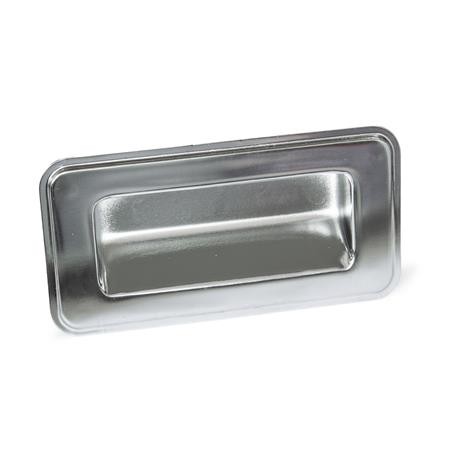

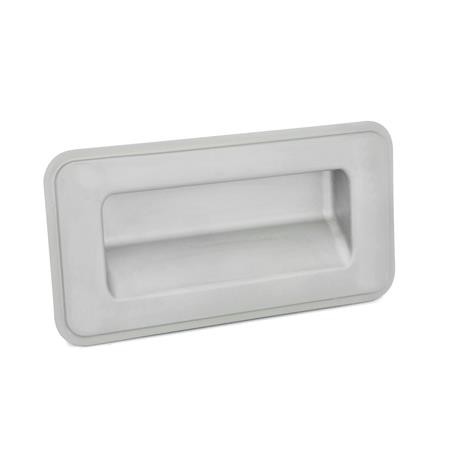

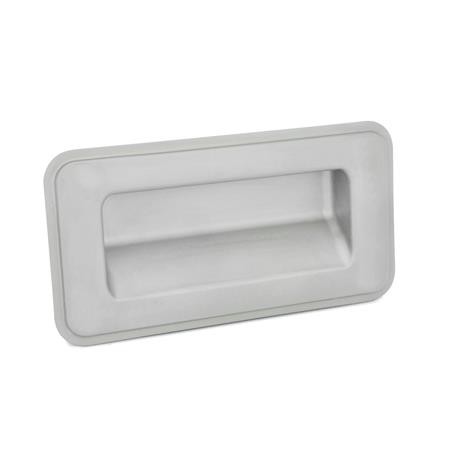

Type C - Mounting from the back

Identification number 1 - without sealing

Identification number 2 - with black sealing

Identification number 3 - with blue sealing

Product Description

GN7332 Screw In Type Gripping Trays in Stainless Steel

Stainless Steel Gripping trays GN 7332 can be easily and quickly installed from the front using countersunk screws or from the back with grub screws.

Gripping trays with identification number 2 have a housing seal, preventing any dirt or liquids from penetrating the housing interior. Type A is supplied with four additional countersunk sealing screws, which feature a polyamide coating on the head to create a tight seal.

Specification

• Handle - Stainless Steel, AISI 304.
  • Matt shot-blasted GS.
  • Electropolished EP.
• Housing seal (Identification no. 2) - Rubber NBR, black, glued.
• Countersunk sealing screws DIN 7991 M5x16 (Type A, Identification no. 2) - Stainless Steel A2, polyamide coating on head.
• Grub screws (type C) - Stainless Steel NI, AISI 304, welded.
• Protection Class IP 66.
