GN826
Clamping Element, for Adjustable Spindle
Please select desired options to reveal part number, price and availability
Options

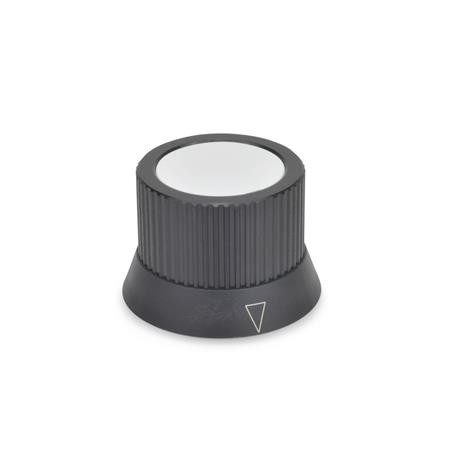

Type A - With arrow

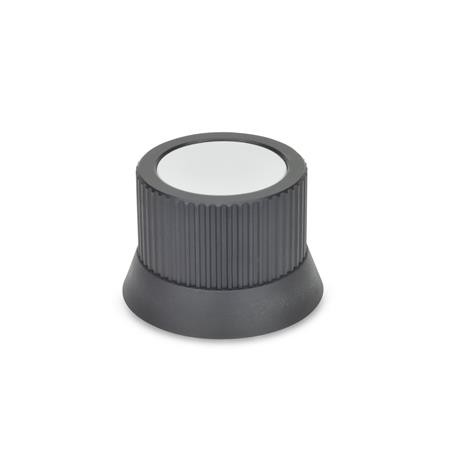

Type B - Blank, without marking or scale

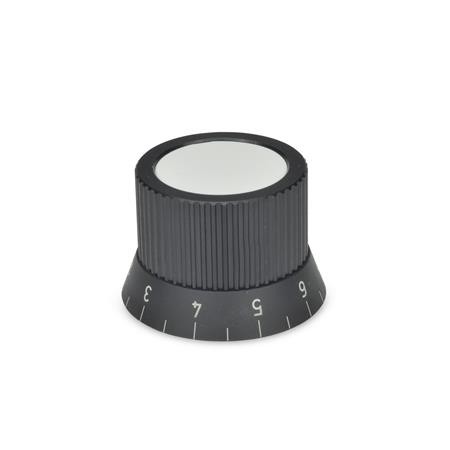

Type S - With scale, 0 - 9, 20 graduations
Identification number 1 - With grub screw
Identification number 2 - With Collet
Product Description
GN726.2 Aluminium Control Knob with Collet or Grub Screw
These GN 726.2 control knobs are an accurate means of making fine, precise position adjustments. The light grey cover of these control knobs shrouds the fixing components as well as the shaft end. The cover also lends itself to a logo or other symbols.
The collet version permits a simple adjustment of the types with scale or arrow.
The scale and the arrow on the control knobs are indelibly marked and easily legible.
They can be supplied blank or with a standard scale or with custom graduation markings of various designs.
See further details on Custom Graduations for designs and prices.
Please note: An additional surcharge applies for custom graduation. If this is not chosen on the original order, this will be invoiced separately.
