Please select desired options to reveal part number, price and availability
Options

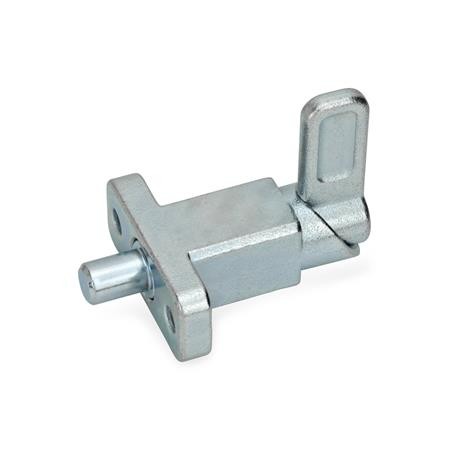

Type A - Latch position right-angled to fixing holes

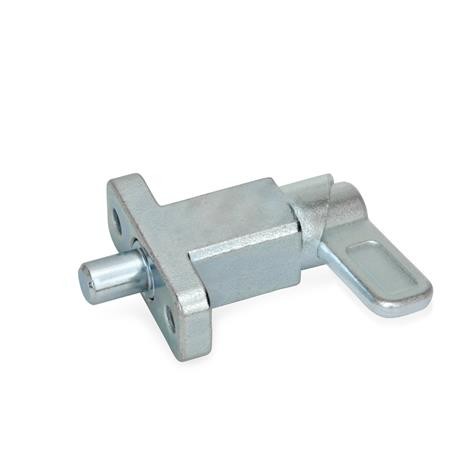

Type B - Latch position parallel to fixing holes
Product Description
GN722.2 Spring Latch, with Flange, for Surface Mounting
Spring latches GN 722.2 are used when the indexing pin is temporarily required to be retracted. The indexing pin retracts by turning the latch by 180° and a lock notch will hold the latch in both positions.
Spring latches GN722.2 are designed for use in steel construction or in locksmith shops where less precise positioning and locking is normally required. The dimensional tolerances are therefore chosen to ensure that functional safety is guaranteed under dirt exposure and that cost effective production methods are used.
Specification

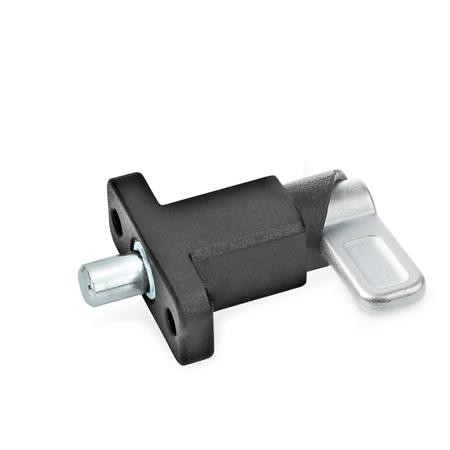

Guide - Steel, precision cast, zinc plated, blue passivated ZB. Zinc plated, plastic covered, black textured finish RAL 9005 SW
Latch - Steel, precision cast, zinc plated, blue passivated, ZB
Plunger - Steel, zinc plated, blue passivated, ZB
Spring - Stainless steel, NI AISI 301
CAD Viewer
Technical Data
