Product Description

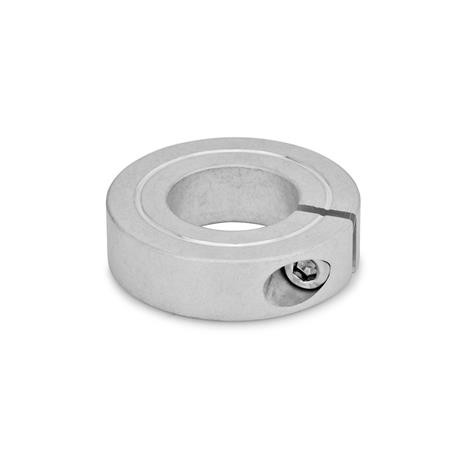

GN706.2 Set Collar, Semi Split, for Clamping, Steel or Aluminum

These semi-split set collars or shaft collars can be safely and easily assembled, by reducing the slot height with high clamping force and thus they act, for instance, like an end stop. They have a high clamping force without damaging the surface of the shaft. They can be fully adjusted and repostioned on the shaft. They not only serve as an end stop, and hold bearings and sprockets on shafts, they can also be used for fixing or triggering other components such as end limit switches. They can also be used for locating purposes.

For size d1 = 16 to 36, d3 is a through hole; starting from d1 = 42, d3 is a threaded blind bore.

Specification

Steel ST - Sintered Steel (Distaloy AB), black oxidised with vapor.

Socket head cap screw DIN912 - Steel ST, blank.

Aluminium AL - ground.

Socket head cap screw DIN912 - Stainless Steel NI, AISI 304
