Please select desired options to reveal part number, price and availability
Options
Type E - Grub screw with internal hexagon DIN914
Product Description

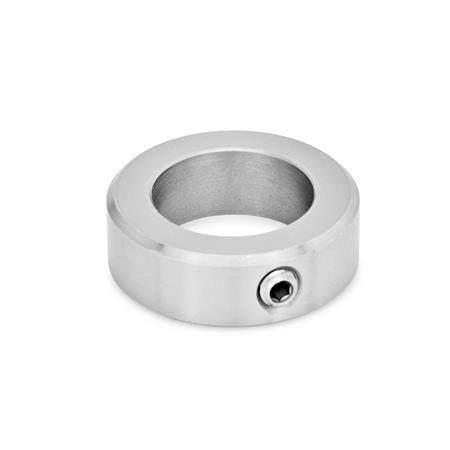

GN705 Set Collar, Stainless Steel, with Internal Hexagon
These top quality set collars, GN 705, are ideal for locking rings onto shafts, as mechanical stops. A useful machining component, they are also commonly utilised for locating purposes. They have a simple, one piece design for easy installation. Being made of stainless steel, they are also ideal for clean room environments, such as found in the food, medical and pharmaceutical industries, and their associated processing and packaging.
The clamping is done radially on the shaft or axle surface. Together with a dimpled hole or a groove at the collet diameter, the set collars can be positioned exactly and, at the same time, damage to the clamping point can be avoided.
Stainless steel set collars GN705 essentially comply with the versions of DIN705. GN705 also contains a number of practical intermediate sizes in addition to the DIN versions, as well as this Type E (grub screw with internal hexagon)..
Specification
Stainless Steel NI, AISI 303
CAD Viewer
Technical Data
