Please select desired options to reveal part number, price and availability
Options
Type B - without rest position, without locknut

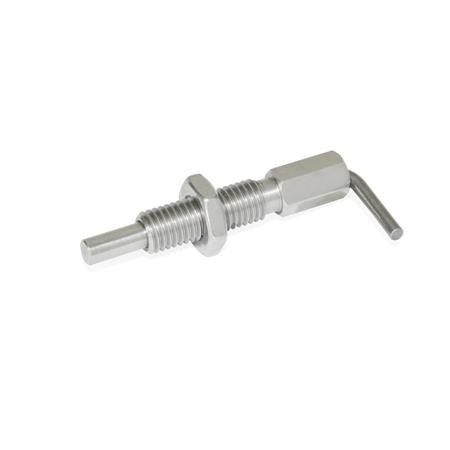

Type BK - without rest position, with locknut
Type C - with rest position, without lock nut

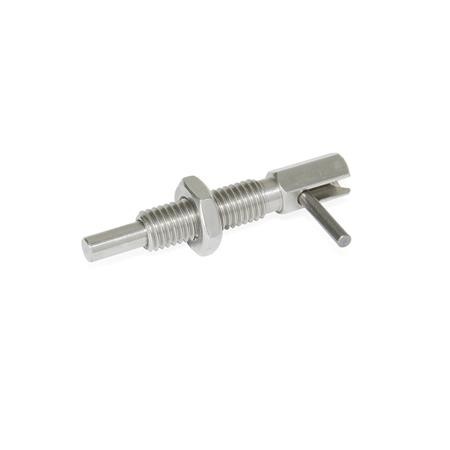

Type CK - with rest position, with lock nut
Product Description
GN7017 Indexing Plungers, With or Without Rest Position, Stainless Steel
These indexing plungers GN 7017 are activated through a lever and are characterized by small dimensions. These indexing plungers are universally useful due to their prevention of misalignments and potential positioning errors of the mating indexing bores. Being stainless steel, they are useful in challenging conditions or for use in clean room environments such as found in the food and pharmaceutical industries, or their associated processing and packaging.
The type C/CK with rest position are used for such applications where the plunger has to stay in its retracted position.
During assembly, the maximum tightening torques shown in the table should not be exceeded when securing the lock nut.
Also available in steel - GN7017
Specification
Stainless Steel NI AISI 303
Plunger - Stainless Steel NI AISI 303
Spring - Stainless Steel NI AISI 301
CAD Viewer
Technical Data
