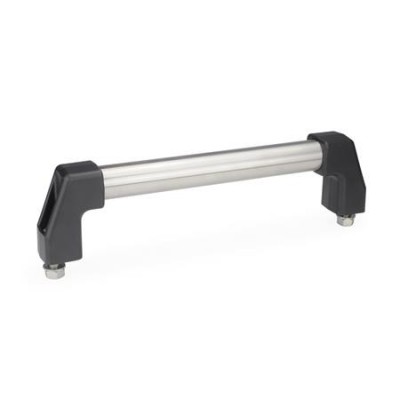

GN667 Tubular Handle in Aluminium or Stainless Steel.

These GN 677 tubular handles are mainly used for handles of oversized lengths, as they can be easily adjusted without further machining. They are made from standard tubing 20 x 1.5 or 30 x 1.5, making them highly versatile.

When longer or special versions are required, an additional leg may be needed. For 30-diameter legs the legs from GN666.1 may be used. Supports are available on request for handles with longer spans or greater loads.

• Handle Tube - diameter 20 x 1,5 / 30 x 1,5

• Aluminium, powder coated, black, RAL 9005, textured finish SW.
• Aluminium, anodized, natural colour EL.

• Stainless Steel, AISI 304, ground, matt shiny finish NG.

• End pieces - Plastic, Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 100°C, black, matt.

• Socket head screws DIN912 -Stainless Steel, AISI 304

• Hexagon nuts ISO4032 - Stainless Steel, AISI 304

• Washers DIN125 - Stainless Steel, AISI 304
