GN648.6 Ball Joint Head, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

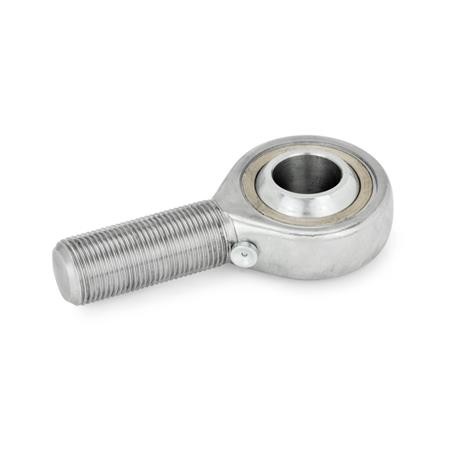

Type NH - Bronze / Steel, lubrication possible

Type WH - Bronze-PTFE / Steel, self lubricated

Type WK = Stainless Steel-PTFE / Stainless Steel, self lubricated

L = Left Hand Thread

Product Description

GN648.6 Ball Joint, Stainless Steel

Ball joint heads GN 648.6, are ideal for a range of mounting applications as they swivel in all directions. These stainless steel ball joints GN648.6 are similar to DINISO 12240-4, series K (formerly DIN648 K). Being made of stainless steel, they are useful in clean room environments, such as found in the food, medical and pharmaceutical industries and their associated processing and packaging.

Specification

Housing - Stainless Steel NI, AISI 431, forged, polished

Pairings:

Type NH (lubrication possible)

Bearing socket - Bronze CuSn8

Internal ring - Steel ST, 100Cr6, hardened, ground, polished, hard chrome plated

Type WH (self lubricated)

Bearing socket - Bronze CuSn8, with PTFE-insert

Internal ring - Steel ST, 100Cr6, hardened, ground, polished, hard chrome plated

Type WK (self lubricated)

Bearing socket - Stainless Steel NI, AISI 316Ti, with PTFE-insert

Internal ring - Stainless Steel NI, AISI 420, hardened, ground, polished

On Request

Ball joints DINISO 12240-4, series E (narrow model)
