Please select desired options to reveal part number, price and availability
Options

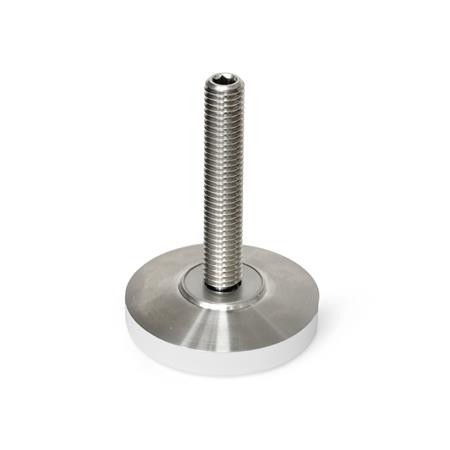

Type G - with plastic cap, gliding
Type R - with plastic cap, non-gliding

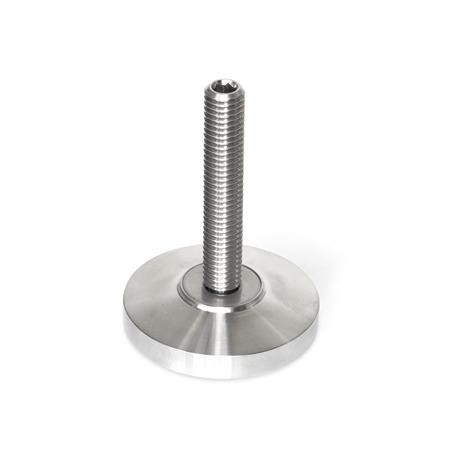

Type N - without plastic cap
Product Description
GN6311.6 Levelling Feet, Stainless Steel, with or without Plastic / Rubber Cap
Stainless steel levelling feet, GN 6311.6, are used for installing and leveling devices, fixtures and equipment.
The pin diameter d3 is smaller than the core diameter of the thread, with the effect that the screw can be turned in at the pin. The pressure pin is easily inserted into the plate, with the retaining spring ensuring that the assembly is secure in axial direction.
The values for static load capacity listed in the table refer to a purely vertical load to the base. Under normal operating conditions, bending loads or angular loads are not uncommon and result in a reduction of the load capacity, which must be taken into consideration.
Specification
CAD Viewer
Technical Data
