GN612 Cam Action Indexing Plunger , Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

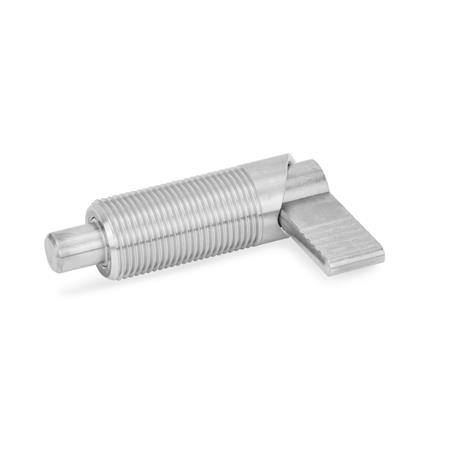

Type A - without lock nut, without plastic cover

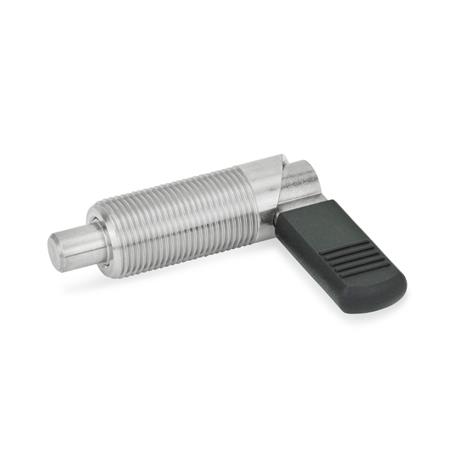

Type B - without lock nut, with plastic cover

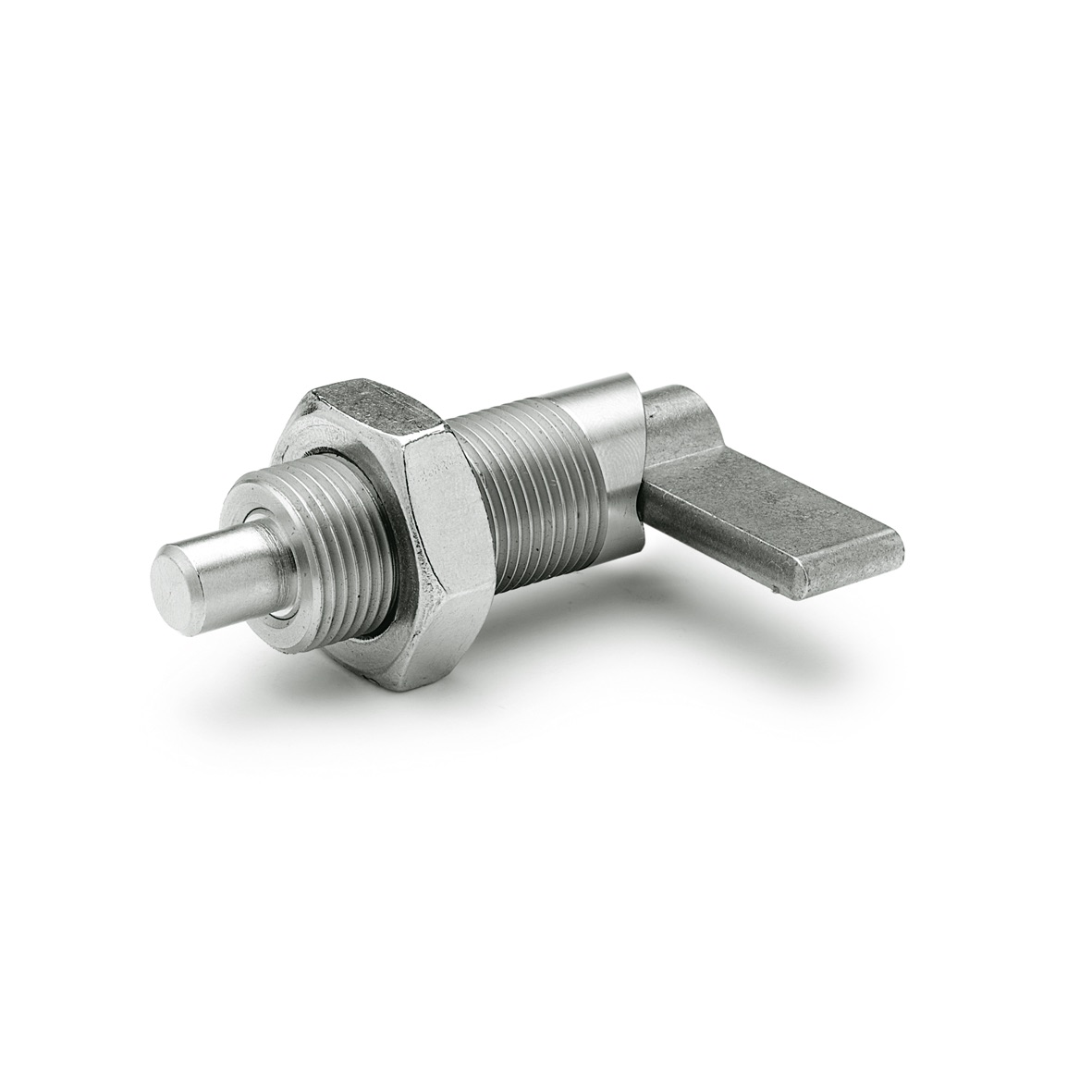

Type AK - with lock nut, without plastic cover

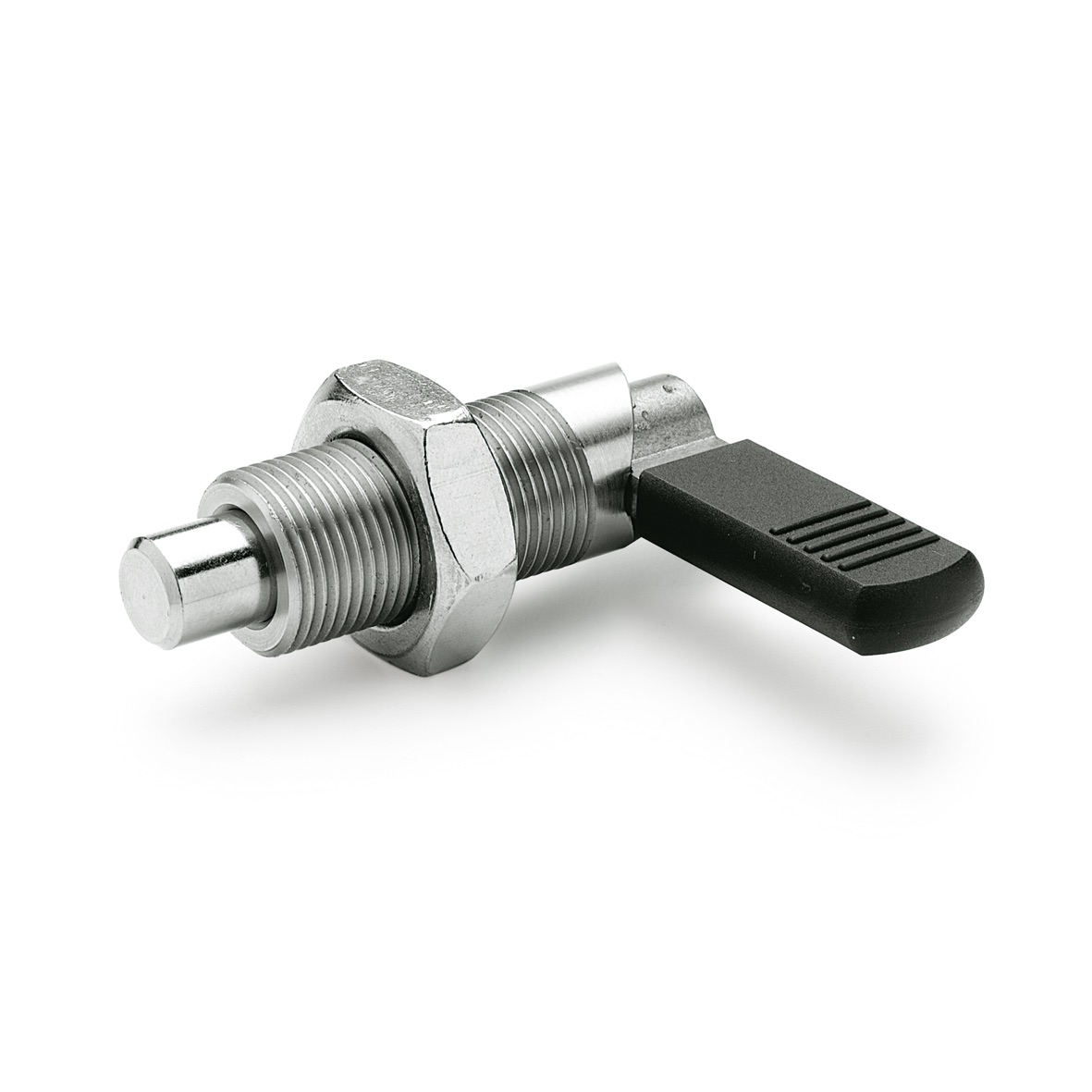

Type BK - with lock nut, with plastic cover

Product Description

GN612 Cam Action Indexing Plunger, Stainless Steel

These stainless steel cam action indexing plungers are used in cases where the locking pin must not protrude all the time.

By rotating the lock through 180 the locking pin withdraws itself.

Mounting blocks are also available GN612.1.

Specification

Stainless Steel NI, AISI 303

Plunger - fine turned and chemically nickel plated.

Spring - Stainless Steel NI, AISI 301

Plastic cover - Technopolymer (Polyamide PA), black, matt

Also available in steel.
