GN612 Cam Action Indexing Plunger, Steel

CloseNextPrevious



CloseNextPrevious

GN612: Cam Action Indexing Plunger

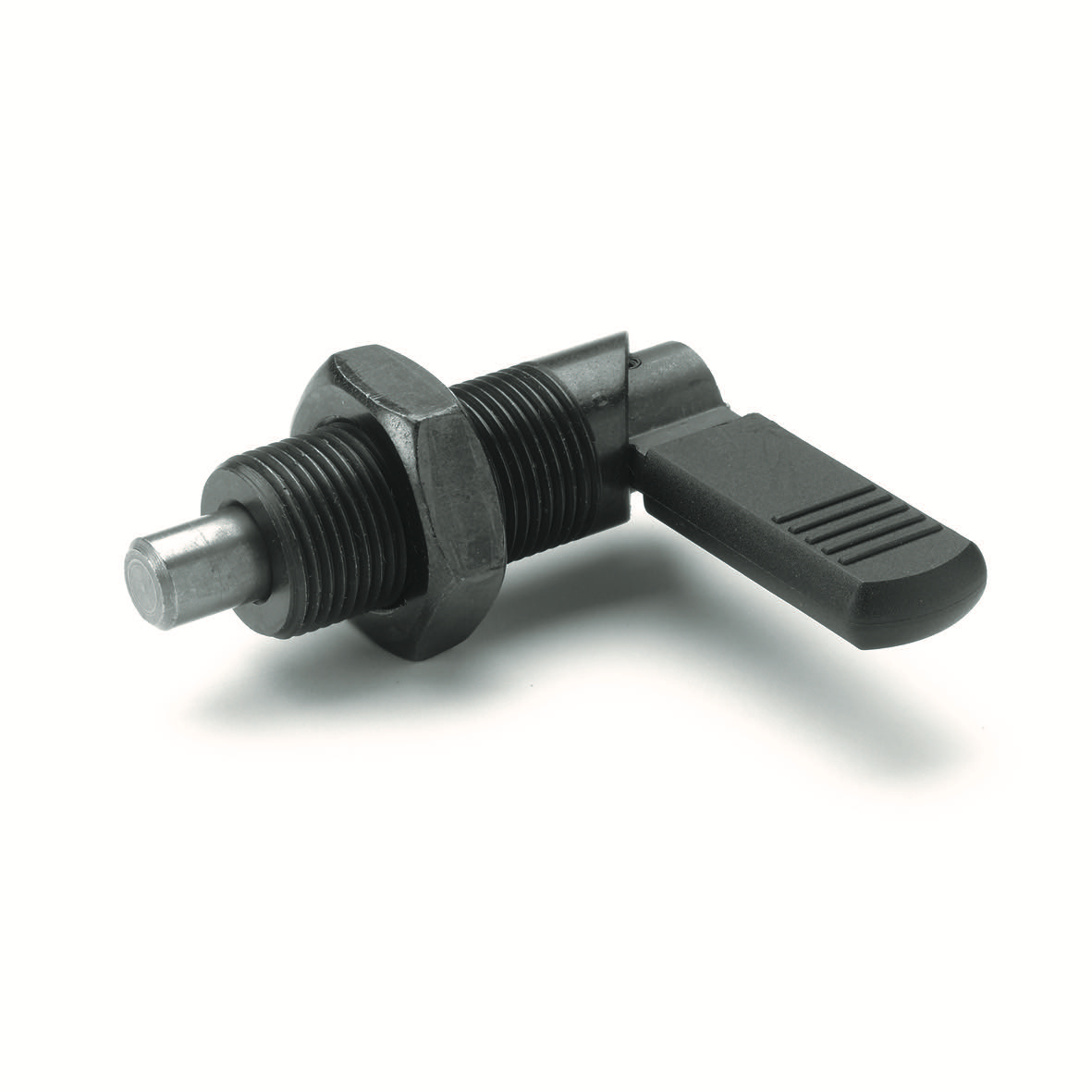

Type: BK



CloseNextPrevious

GN612: Cam Action Indexing Plunger

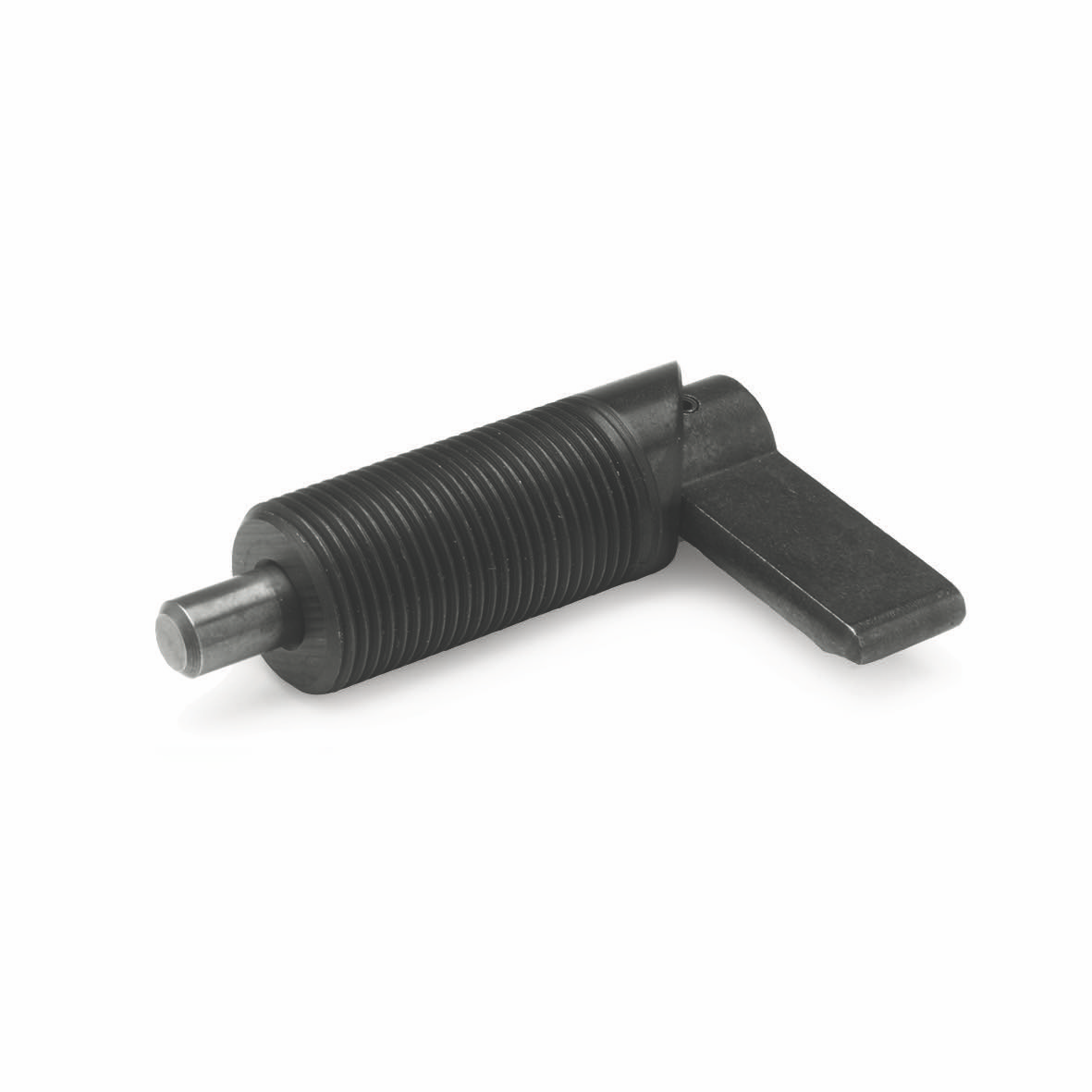

Type: A



CloseNextPrevious

GN612: Cam Action Indexing Plunger

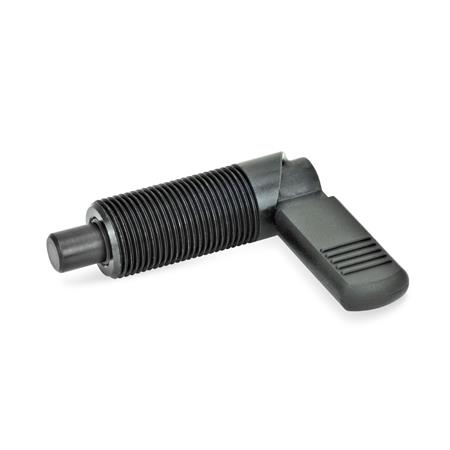

Type: B



CloseNextPrevious

GN612: Cam Action Indexing Plunger

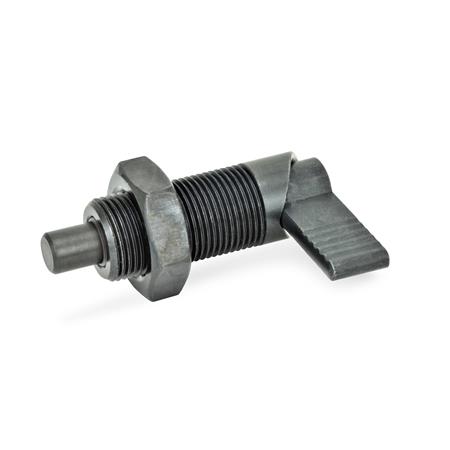

Type: AK



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - without lock nut, without plastic cover

Type B - without lock nut, with plastic cover

Type AK - with lock nut, without plastic cover

Type BK - with lock nut, with plastic cover

CAD Viewer Technical Data

Product Description

GN612 Cam Action Indexing Plunger, Steel

These cam action indexing plungers are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself.

A notch is provided in either position to prevent the lock from rotating.

Mounting blocks are also available: GN412.1

Specification

Steel ST, blackened. Plunger pin - nitrided.

Spring - Stainless Steel NI, AISI 301

Plastic cover - Technopolymer (Polyamide PA), black, matt

Also available in stainless steel
