Please select desired options to reveal part number, price and availability
Options
Type H - Semi-spherical, steel

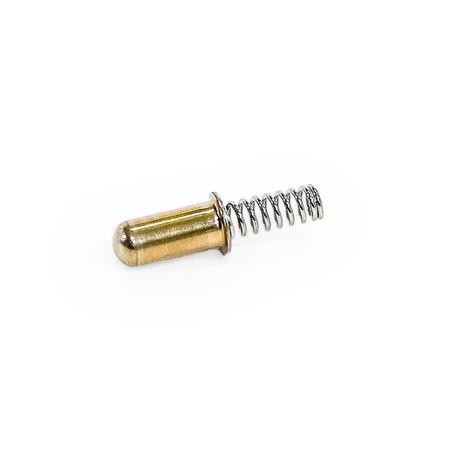

Type HBN - Semi-spherical, with collar, stainless steel

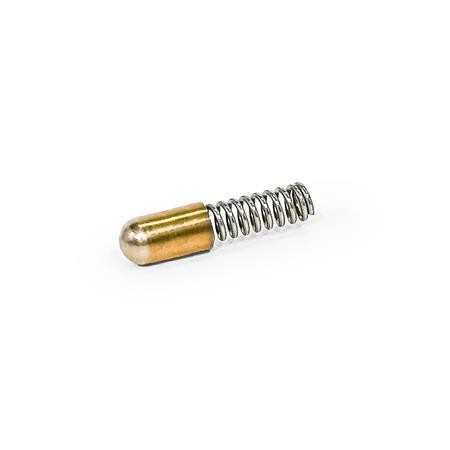

Type HN - Semi-spherical, stainless steel

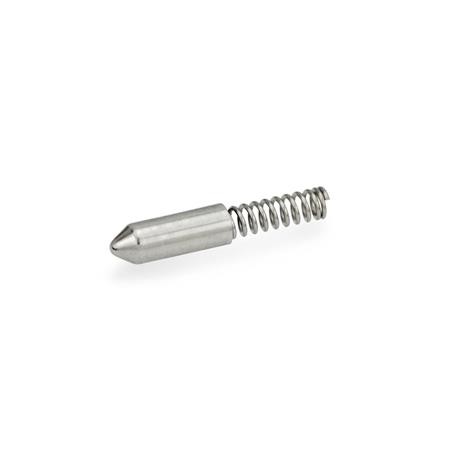

Type K - Pointed nose
Product Description
GN610 Spring Loaded Shell, Steel or Stainless Steel
Spring loaded shells GN 610 have been designed for applications where relatively long strokes are required in a confined space - a special feature is their large spring travel with a compact size. Used for indexing and locking.
A simple hole is sufficient for installation, the depth of the mounting hole is determined by the preload required. Pre-tensioning and securing of the spring loaded shells must be ensured by the opposing stop piece.
Type HBN has a collar to prevent the spring-loaded shell from springing out the front. A simple stepped hole is sufficient for installation. The part is secured from the rear, such as with a plate or a threaded stud.
Specification
CAD Viewer
Technical Data
