GN605
Ball Point Screw, Steel, Blackened
Please select desired options to reveal part number, price and availability
Options
Type A - full ball
Type B - flat ball
Type V - flat ball, with swivel limiting stop (M6-M16)

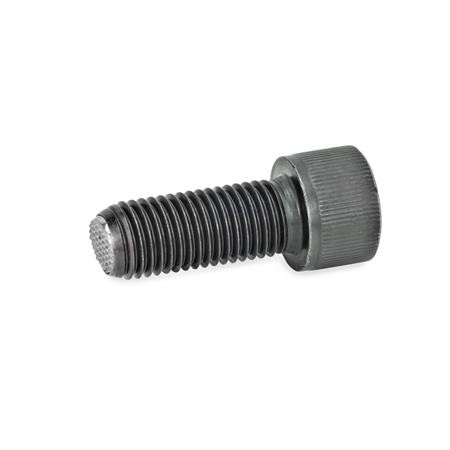

Type VR - flat ball, with swivel limiting stop, corrugated (M6-M16)
Product Description
GN606 Ball Point Screw Hex Drive, Steel
Ball point screws GN 606 with full ball (Type A) are used in applications where a ball point contact is required.
The flat faced moving ball (Type B) allows a clamping or supporting of non parallel surfaces.
The ball of type V/VR can be swivelled to a maximum of 9 to ensure that clamping is always maintained on the flat section of the ball.
Specification
Steel ST - Tensile strength 1000 N/mm2, blackened.
Ball - Blank hardened.
