GN603
ERX Adjustable Hand Lever, Plastic, Brass Bush, Button Release
Please select desired options to reveal part number, price and availability
Product Description
GN602 Adjustable Hand Lever, Ergostyle
These adjustable hand levers, GN 602, have an ergonomical shape and are designed to be both comfortable in use and have a modern appearance. The gently arched shape and reinforced end to the handle give the operator a particularly good grip.
These levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever disengages the serrations and allows it to be swivelled to the ideal clamping position. It can be turned in either direction to reach the new location. On releasing the lever the serrations automatically re-engage.
Specification

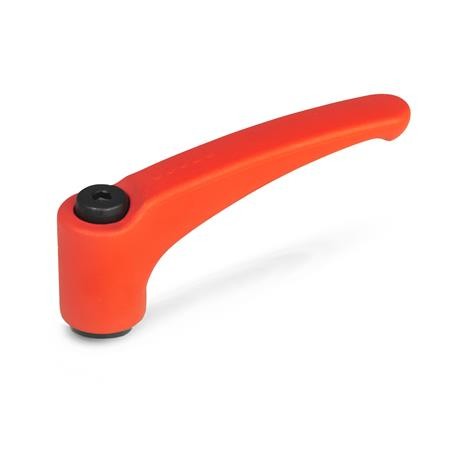

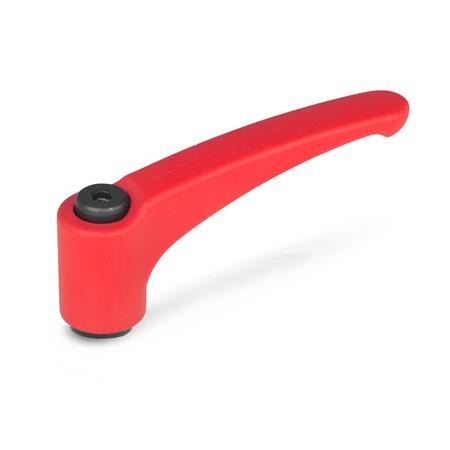

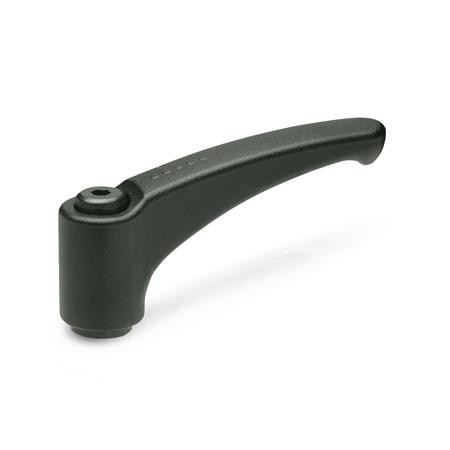

Handle - Zinc die casting. Plastic coated. Black - SW RAL 9005, textured finish. Red - RS RAL 3000, textured finish. Orange - OS RAL 2004, textured finish. Silver - SR RAL 9006, textured finish.
Bush and retaining screw - Steel, blackened.
