Product Description

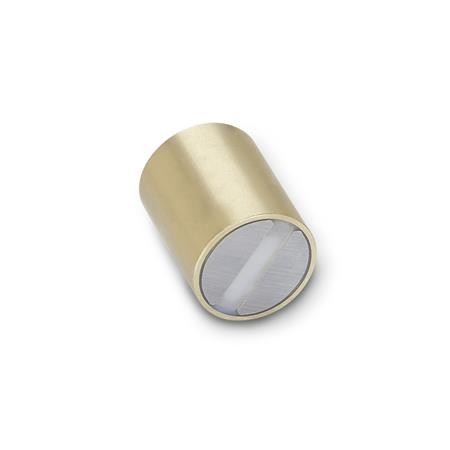

GN54.2 Retaining Magnet, Rod Shaped, with Internal Thread, with Fitting Tolerance
Retaining magnets GN 54.2 are combined with a brass housing, the iron poles and the plastic insulation into a system that shields and considerably strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
This special design is also known by the name “sandwich magnet” or “pole shoe magnet”.
* Mounting these retaining magnets directly in steel components will create a magnetic shortcircuit which reduces the retaining power by as much as 15%. To avoid this, the distance k should be maintained between the brass housing and steel part or installation hole.
Specification
Housing - Brass
Magnet Material:
SmCoSC - Samarium, cobalt, SC, temperature resistant up to 200° C
NdFeBND - Neodymium, iron, boron, ND, temperature resistant up to 80° C. ND type identified by blue colour on magnet area.
Accessories
Holding Disks GN70
Adhesive Disks GN70.1
Rubber Caps GN70.2
On Request
Housing in stainless steel
Poles in stainless steel
Higher magnetic forces
Temperature resistance up to 280 °C
