GN53.1
Magnet, Disk Shape, Plastic Housing
Please select desired options to reveal part number, price and availability
Options

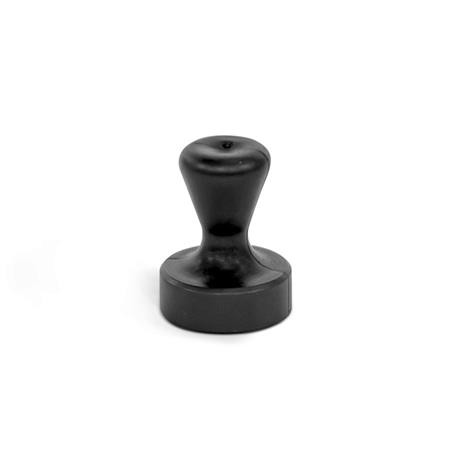

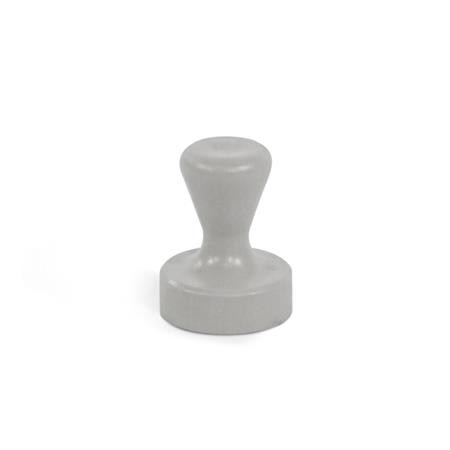

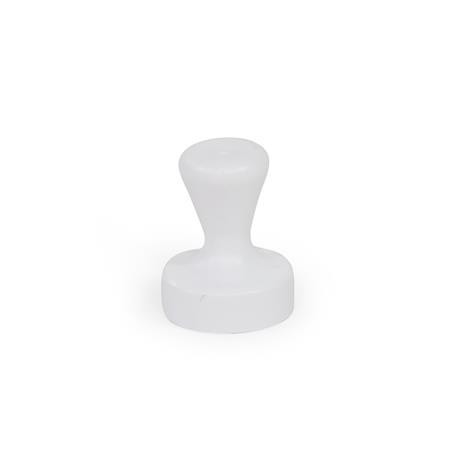

Type A - Without eyelet

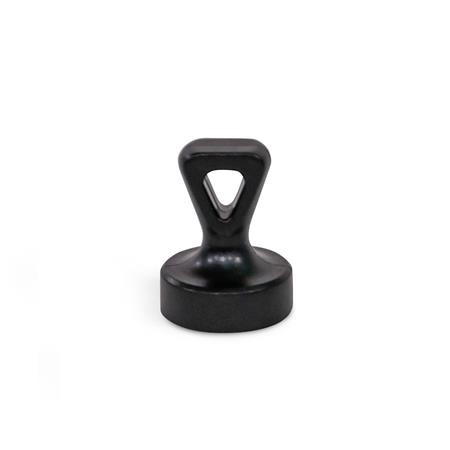

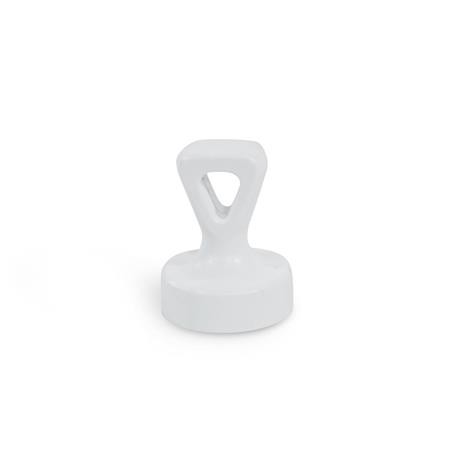

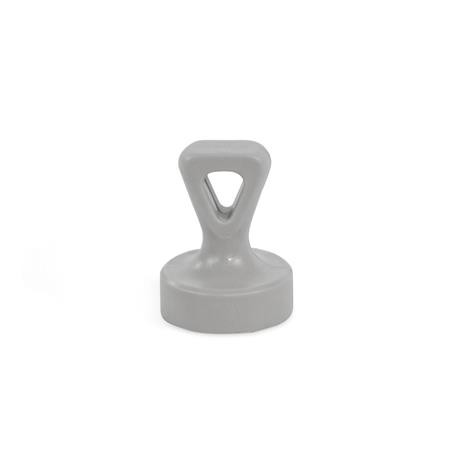

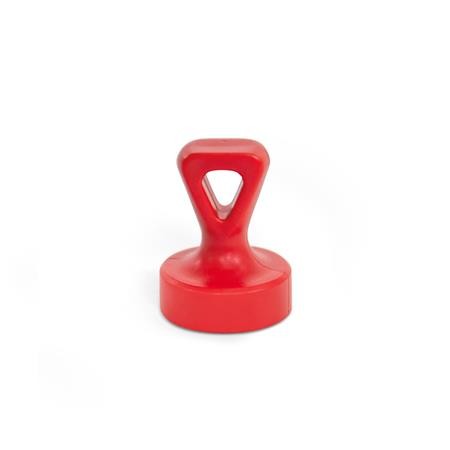

Type B - With eyelet
Product Description
GN53.3 Magnet, Disk Shape, With Handle, Plastic Housing
Magnets GN 53.3 work as a system for holding documents, templates, drawings etc. that are used in technical environments. They have an ergonomic plastic handle.
The strong neodymium magnet keeps the required contact diameter small while also supplying a high retaining force.
Type B with eyelet also offers loss protection as a retaining cable may be easily added to secure the magnet.
Specification
Magnet Material: NdFeB ND Neodymium, Iron, Boron, temperature resistant up to 80°C.
Housing - Plastic, white - WS (RAL 9003). Grey - GR (RAL 7040). Red - RT (RAL 3031). Black - SW RAL (9004)
Countersunk Screw - Stainless Steel
Accessory
Holding disks GN70
Adhesive disks GN70.1
Stainless steel retaining cables GN111.2
Spiral retaining cables GN111.4
On Request
Other colours
