Type K - with adjustable hand lever.
Type S - with cylinder head screw DIN912.
Product Description

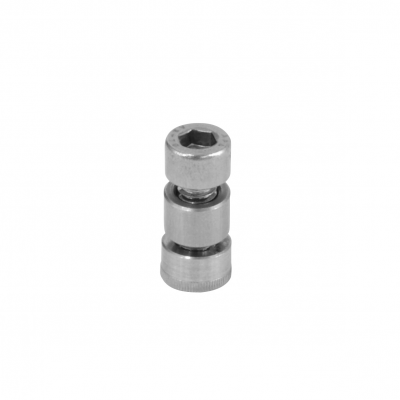

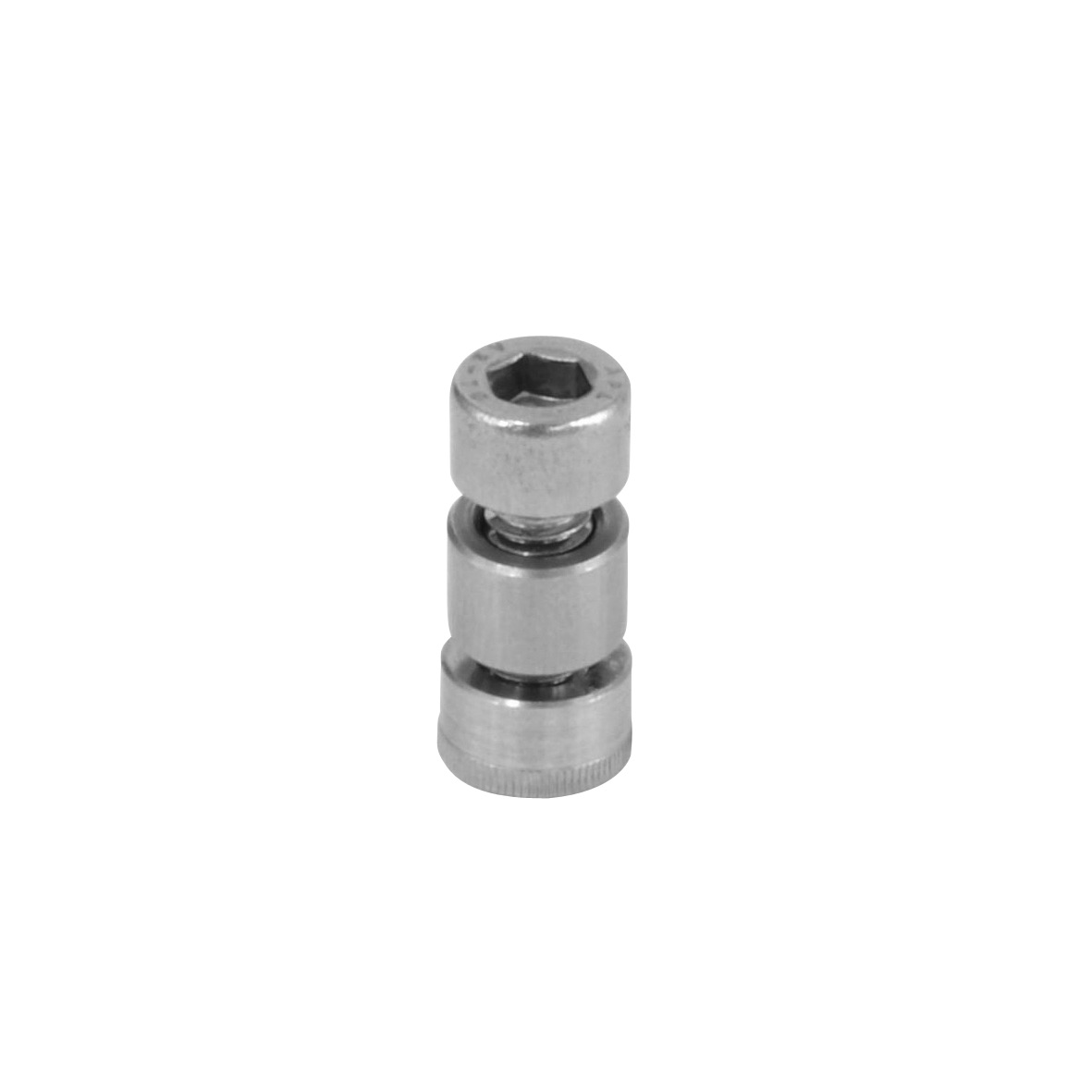

GN511.1 Clamping Kit, for Swivel Clamp Mountings
With these clamping kits, swivel clamp mountings GN482 can be combined with T-Swivel clamp mountings GN483, swivel clamps with connector bases GN485 and attachment clamp mountings GN484 with the same k dimensions into swivel clamp mounting joints.
The centering bush positions the swivel clamp mountings in relation to each other. During assembly, the knurled threaded bush is inserted by the clamping screw itself and by pressing into one of the two swivel clamp mountings and so serves to clamp the articulated joint.
The center to center mounting hole distance m of the swivel clamp connector bases GN485 matches the base plate clamp mountings GN473.
Specifications
Handle - Zinc die casting, plastic coated, silver, RAL 9006, textured finish.
Threaded insert, distance sleeve, centering bush, threaded bush - Stainless Steel NI AISI 303.
Cylinder head screw DIN912 - Stainless Steel NI AISI 304.
