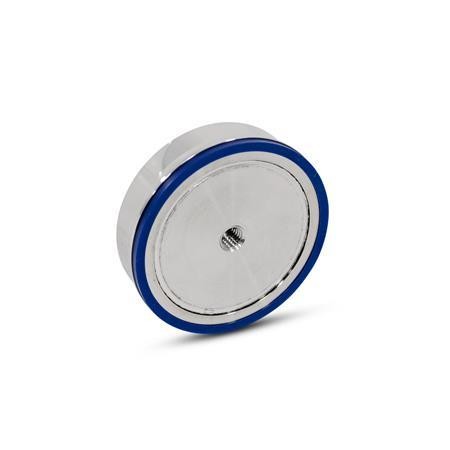

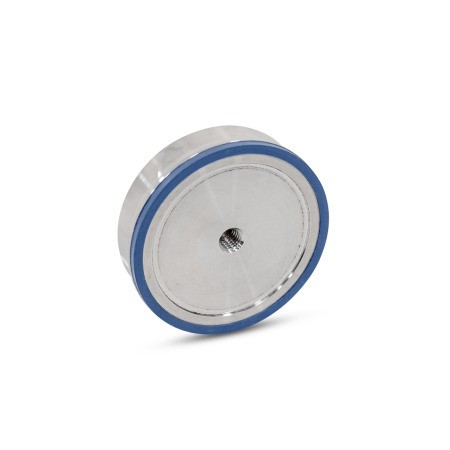

GN5090 Retaining Magnet, Disc Shape, Internal Thread, Stainless Steel Housing, Hygienic Design

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Polarity N - North

Polarity S - South

Type A - Flat magnetic surface

Product Description

GN5090 Retaining Magnet, Disc, Internal Thread, Stainless Steel Housing, Hygienic Design.

Retaining magnets GN 5090 are designed for use in hygienic areas. The sealed screw-on surface enables mounting without dead spaces; the impervious geometry in combination with the high quality finish prevents dirt from accumulating and facilitates cleaning.

Since non-magnetic stainless steels are generally used in hygienic areas, a holding force is only achieved in combination with holding disks GN7080 or GN7090. If an increased holding force is required, a second magnet with opposite polarity can be used as a counterpart.

To prevent the magnetic properties from being impaired, the mounting screw should also be made of non-magnetic stainless steel.

Thanks to the material used and the enclosed design, the retaining magnets can also be used in particularly aggressive environments.

Specification

• Magnet material - NdFeb neodymium, iron, boron, temperature resistant up to 180ºC
• Housing - Stainless steel AISI 316L, matte finish (Ra<0.8µm) MT
• Sealing ring - Blue, hardness 85 ±5 Shore A, FDA compliant
• EPDM - Temperature resistant -40ºC to +120ºC E
• FKM -  Temperature resistant -5ºC to +200ºC F
• H-NBR - Temperature resistant -25ºC to +150ºC H

Accessories

Sealing rings GN7600
Holding Disks GN7080
Holding Disks GN7090
Screws GN1581
