GN50.4
Retaining Pot Magnet, Disc, Steel housing, Threaded Bore
Please select desired options to reveal part number, price and availability
Product Description

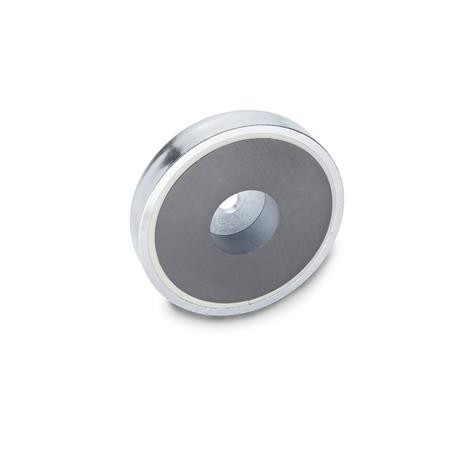

GN50.4 Retaining Magnet, Disc, Through Bore
This shielded retaining magnet, GN 50.4, is a simple, cost-effective and long lasting means of securely holding items in place without causing damage.
This magnet magnet consists of a steel shell containing a powerful magnet. This steel pot directs the magnetic field lines downward to the contact surface. This causes the magnetic force to be concentrated at the contact surface and therefore increases the strength of the magnet.
This strong adhesive force occurs only on direct contact with the counterpart. The magnet is not suitable for attraction over distance. For the best adhesive force the contact surface should ideally be a thick, smooth and unpainted surface.
It has a through bore for fixing in place.
To ensure that the magnetic properties (adhesive forces) are not impaired, the fixing screws must be made of non-magnetic material.
Specification
Housing - Steel, zinc plated
Magnet materials: Hard ferrite HF - temperature resistant up to 200°C
SmCo SC - Samarium, Cobalt, temperature resistant up to 280°C.
NdFeB ND - Neodymium, Iron, Boron, temperature resistant up to 80°C
