GN50.2 Retaining Magnets, Disc shaped, with Threaded Bush

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

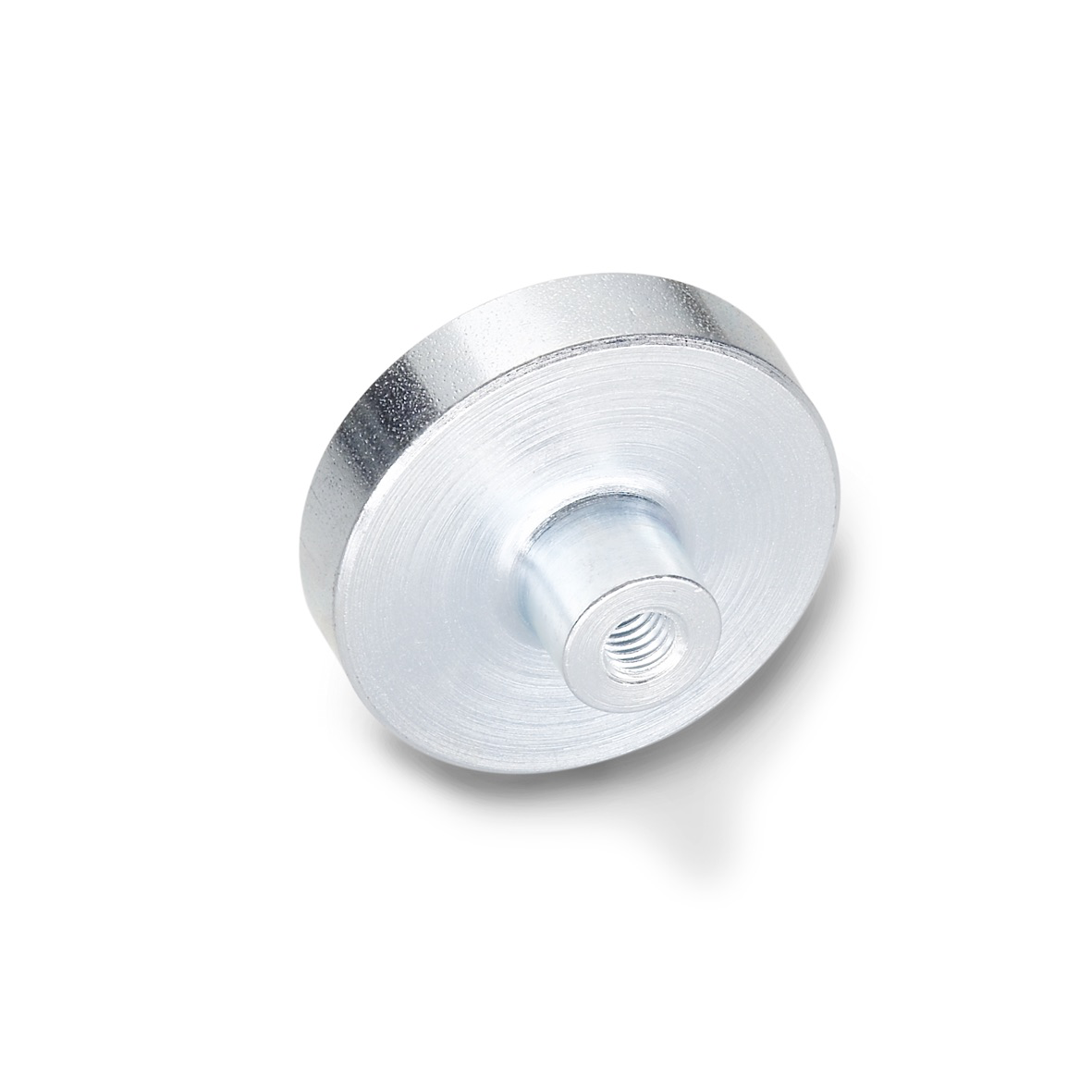

GN50.2 Retaining Magnet, Disc, Threaded Bush

This retaining magnet, GN 50.2, is a simple, cost effective & long lasting means of securely holding items in place without causing damage.

It is a shielded magnet system. This consists of a steel shell containing a powerful magnet. This steel pot directs the magnetic field lines downward to the contact surface. This causes the magnetic force to be concentrated at the contact surface and therefore increases the strength of the magnet.

This strong adhesive force occurs only on direct contact with the counterpart. The magnet is not suitable for attraction over distance. For the best adhesive force the contact surface should ideally be a thick, smooth and unpainted surface.

It incorporates a threaded bush for fixing in place.

Specification

• Housing / Threaded bushing - Steel, zinc plated.
• Magnet Material:
  • Hard ferrite HF - temperature resistant up to 200°C
  • SmCo SC - Samarium, Cobalt, temperature resistant up to 200°C.
  • NdFeB ND - Neodymium, Iron, Boron, temperature resistant up to 80°C.
